2.5.2 SILVER C PX one-piece air handling units with plate heat exchanger

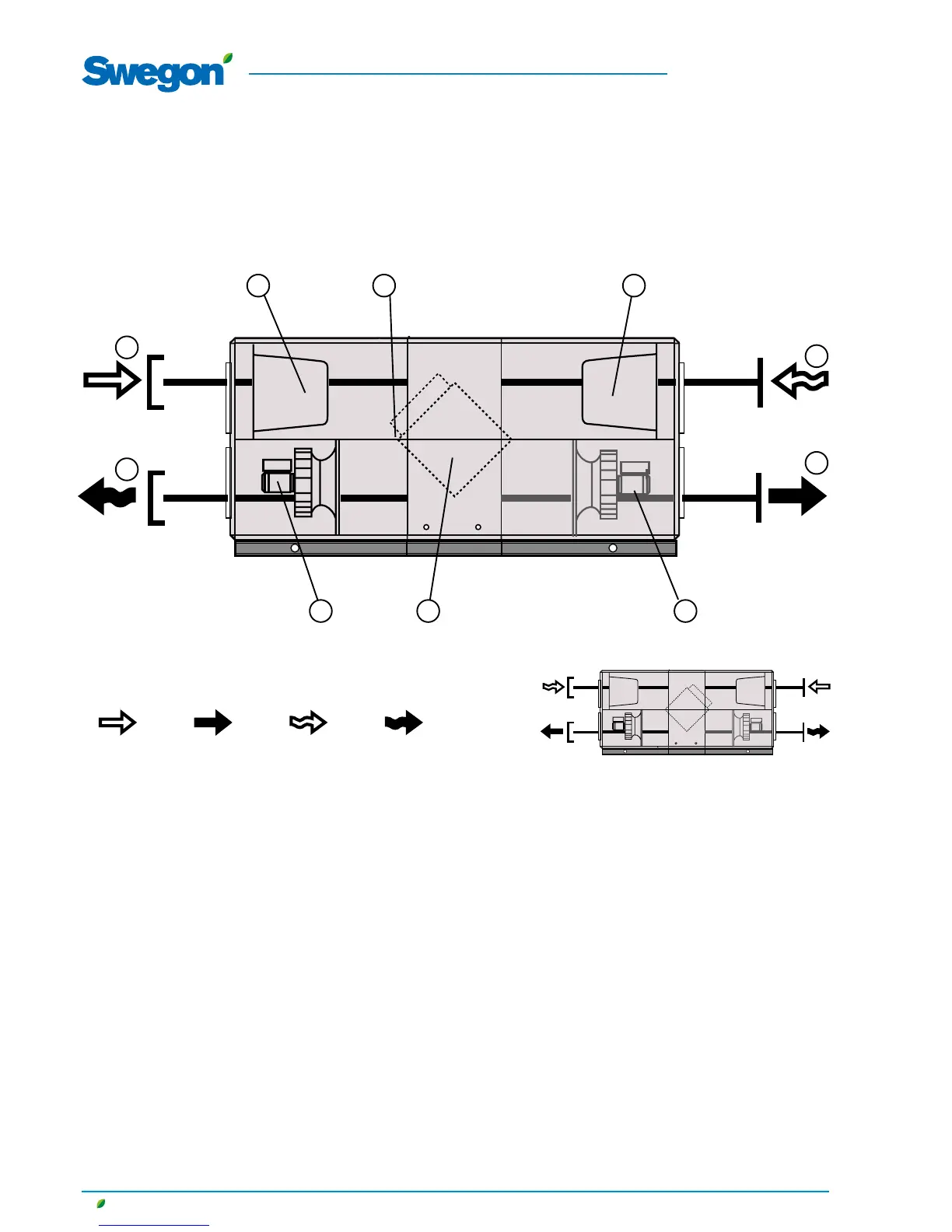

The individual components are each specified below in a simplified and diagrammatical description.
Left-hand version
Fig. 2b
Outdoor air Supply air Extract air Exhaust air
Fig. 2a
Right-hand version
The air handling units are supplied in the right-hand or
left-hand version as shown in Fig. 2a and 2b. In the left-
hand version (Fig. 2b), the components marked with an
asterisk change function and designation (the compo-
nents are named according to whether the function is for
supply air or extract air.).
The arrangement of the components and their desig-
nations
1 EXHAUST AIR* (In left-hand version: Supply air)
2 OUTDOOR AIR* (In left-hand version: Extract air)
3 Supply air filter*
4 Damper actuators, shut-off and bypass dampers
5 Extract air filter*
6 EXTRACT AIR* (In left-hand version: Outdoor air)
7 SUPPLY AIR* (In left-hand version: Exhaust air)
8 Supply air fan* with motor and motor control system
9 Plate heat exchanger with bypass and shut-off damper
10 Extract air fan* with motor and motor control system
1
2
6
7
9 810
3 4 5
