Swegon SILVER C RX - 6.3 SILVER C CX Dimensions

GB.SILVERSK.170901
We reserve the right to alter specifications.
www.swegon.com 35
76
76
52
52*
200B**
SILVER
SILVER
28
28*
76
76
SILVER
SILVER
B** 200
52
50
50
50
50
52
N
SILVER SILVER
200
N
200 B** B**

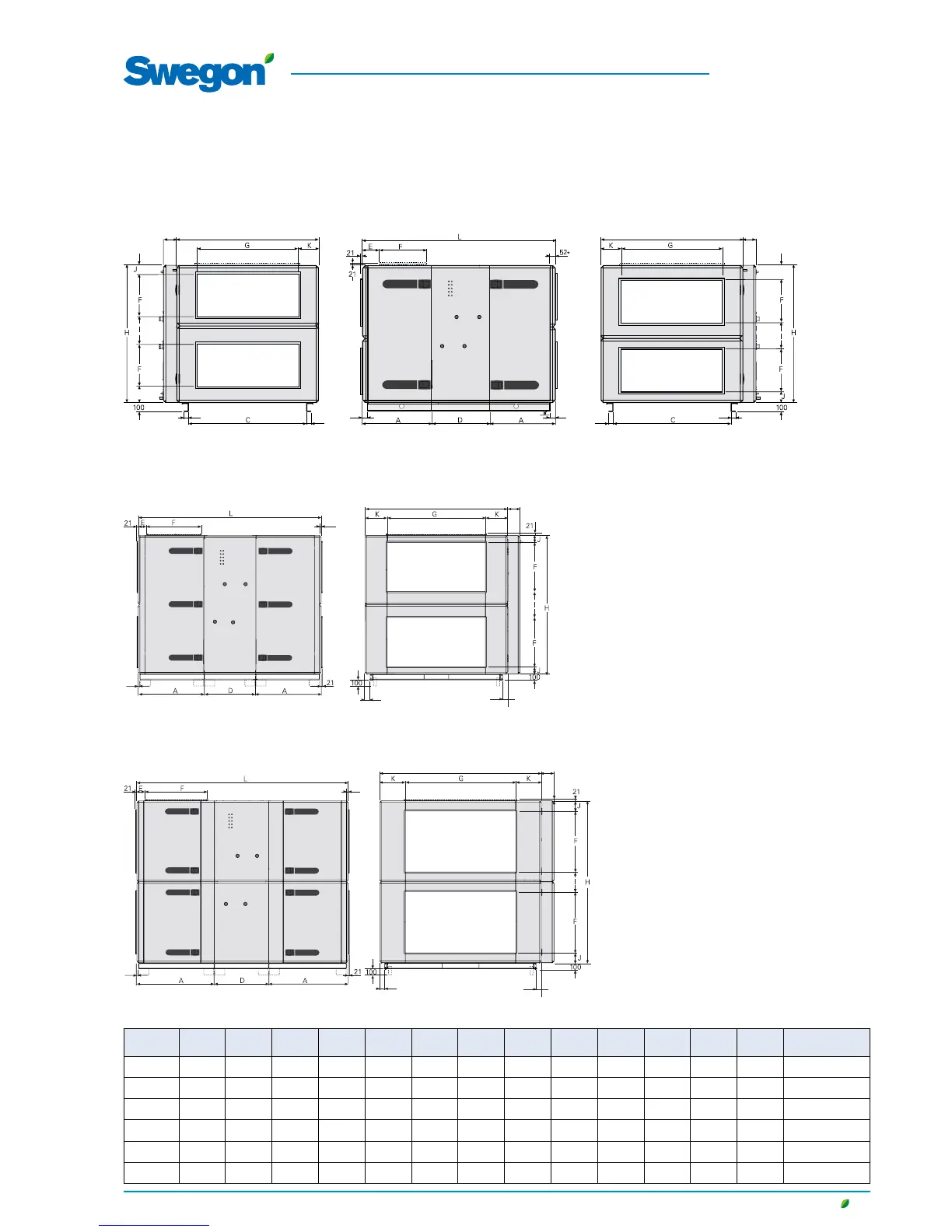

6.3 Dimensions, SILVER C CX one-piece air handling units
with coil heat exchangers
SILVER C 35/40
* The air handling unit is supplied without end connection panel if a duct accessory housed in an insulated casing will be connected.
** Width of centre section's casing = B + 200 mm.
The dimension print shows the connection configuration for Fan Arrangement 1. For Fan Arrangement 2 the connections are mirror-
inverted.
SILVER C 70/80
Size A B C D E F G H I J K L N Weight, kg
35 948 1990 1726 824 200 600 1400 1985 392 153 295 2719 240
1410 -1524
40 948 1990 1726 824 200 600 1400 1985 392 153 295 2719 240
1460-1574
50 1050 2318 – 856 150 800 1600 2253 423 115 360 2956 –
18 87-2011
60 1050 2318 – 856 150 800 1600 2253 423 115 360 2956 –
1967-2091
70 1275 2637 – 904 164 1000 1800 2640 319 161 419 3454 –
2797-2949
80 1275 2637 – 904 164 1000 1800 2640 319 161 419 3454 –
2897-3173
* The air handling unit is supplied without end connection panel if a duct accessory housed in an insulated casing will be connected.
** Width of centre section's casing = B + 200 mm.
SILVER C 50/60
* The air handling unit is supplied without end connection panel if a duct accessory housed in an insulated casing will be connected.
** Width of centre section's casing = B + 200 mm.
