* The air handling unit is supplied without end connection panel if a duct accessory housed in an insulated casing will be connected.

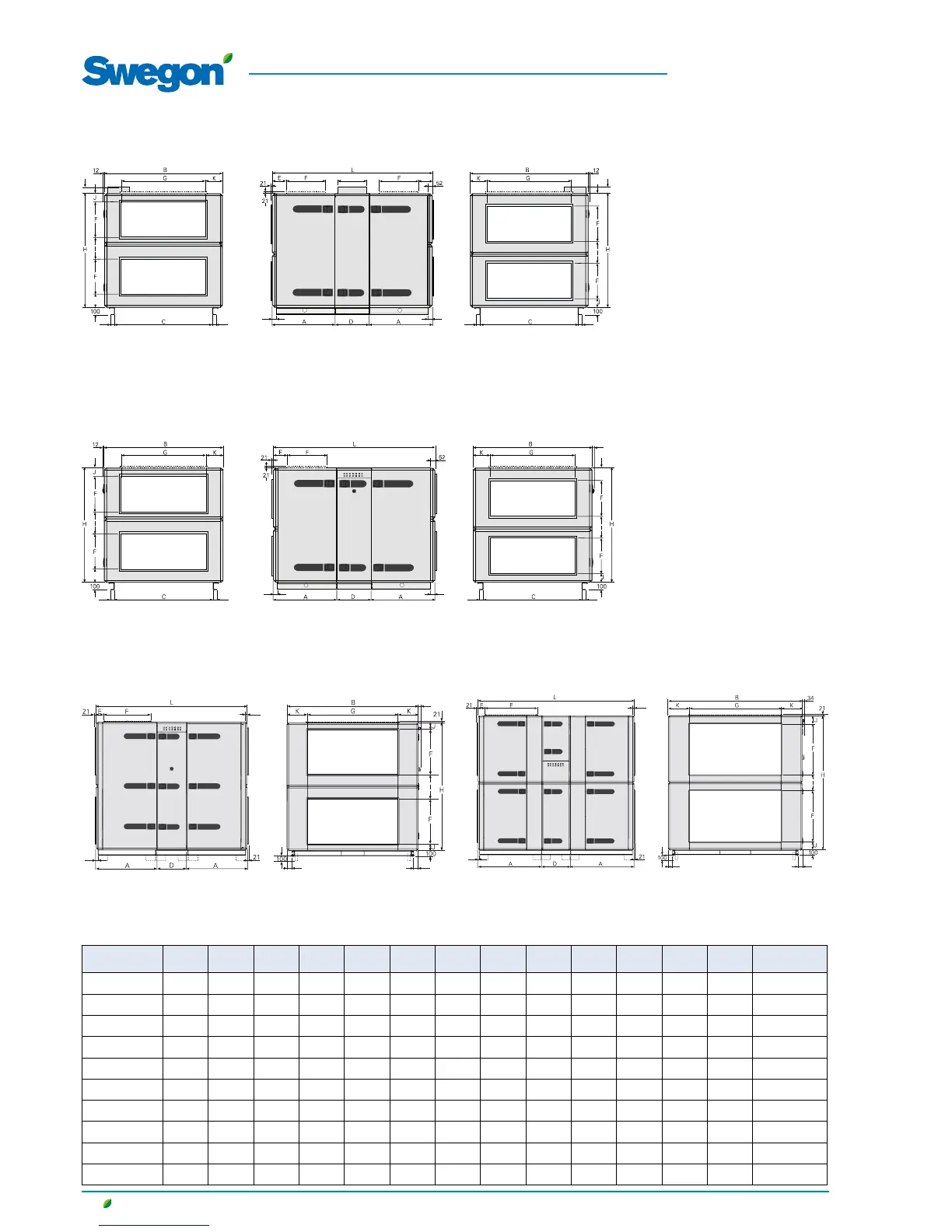

The illustration shows the connections for Fan Arrangement 1. If the unit has Fan Arrangement 2, the connections will be reversed.
52
50 50
52
E
M
50 50
M
486
108
108
SILVER SILVER
*
SILVER C 14/20, 25/30
* The air handling unit is supplied without end connection panel if a duct accessory housed in an insulated casing will be connected.
The illustration shows the connections for Fan Arrangement 1. If the unit has Fan Arrangement 2, the connections will be reversed.
52
50 50
52
M
50 50
M
34
SILVER SILVER
*
SILVER C 35/40
SILVER C 50/60 SILVER C 70/80
7676
28
34
28
SILVER
SILVER
*
Size A B C D E F G H I J K L M Weight, kg
14 765 1400 1136 550 208 400 1000 1395 298 109 200 2080 188
521-589
20 765 1400 1136 550 208 400 1000 1395 298 109 200 2080 188
557-625
25 835 1600 1336 550 193 500 1200 1595 298 94 200 2220 203
666-746
30 835 1600 1336 550 193 500 1200 1595 298 94 200 2220 203
708-786
35 948 1990 1726 550 200 600 1400 1985 392 153 295 2446 240
956-1070
40 948 1990 1726 550 200 600 1400 1985 392 153 295 2446 240
1006-1120
50 1050 2318 – 570 150 800 1600 2253 423 115 360 2670 –
1294-1418
60 1050 2318 – 570 150 800 1600 2253 423 115 360 2670 –
1374-1498
70 1275 2637 – 570 164 1000 1800 2640 319 161 419 3120 – 2059-2211
80 1275 2637 – 570 164 1000 1800 2640 319 161 419 3120 – 2159-2435
* The air handling unit is supplied without end connection panel if a duct accessory housed in an insulated casing will be connected.
7676
52
52
