SWF K Series


5.5.2 Gauge
This function is to automatically create the gauge of the design outline.
① Use the menu move buttons in <Fig. 5.5.0-1>, select gauge, and press . And then <Fig. 5.5.2-1>
will appear.
SELECT
F7
② Press in <Fig. 5.5.2-1>, and as in <Fig. 5.5.2-2>, the menu for design saving will appear. Select the
room to save the design and press , and the design will be saved in the memory. To cancel the
saving, press .
PREVIOUS
F8
COPY
F7
SAVE
F1
② In <Fig. 5.5.2-1>, is the function to check whether the gauge line moves beyond the frame by
moving the frame along the gauge line.
FRAME
F2
[ Note ]
The distance between the called design and the gauge line can be set in “14. Optimize Method”of “5.4.2 EMB
Parameter Setting.”

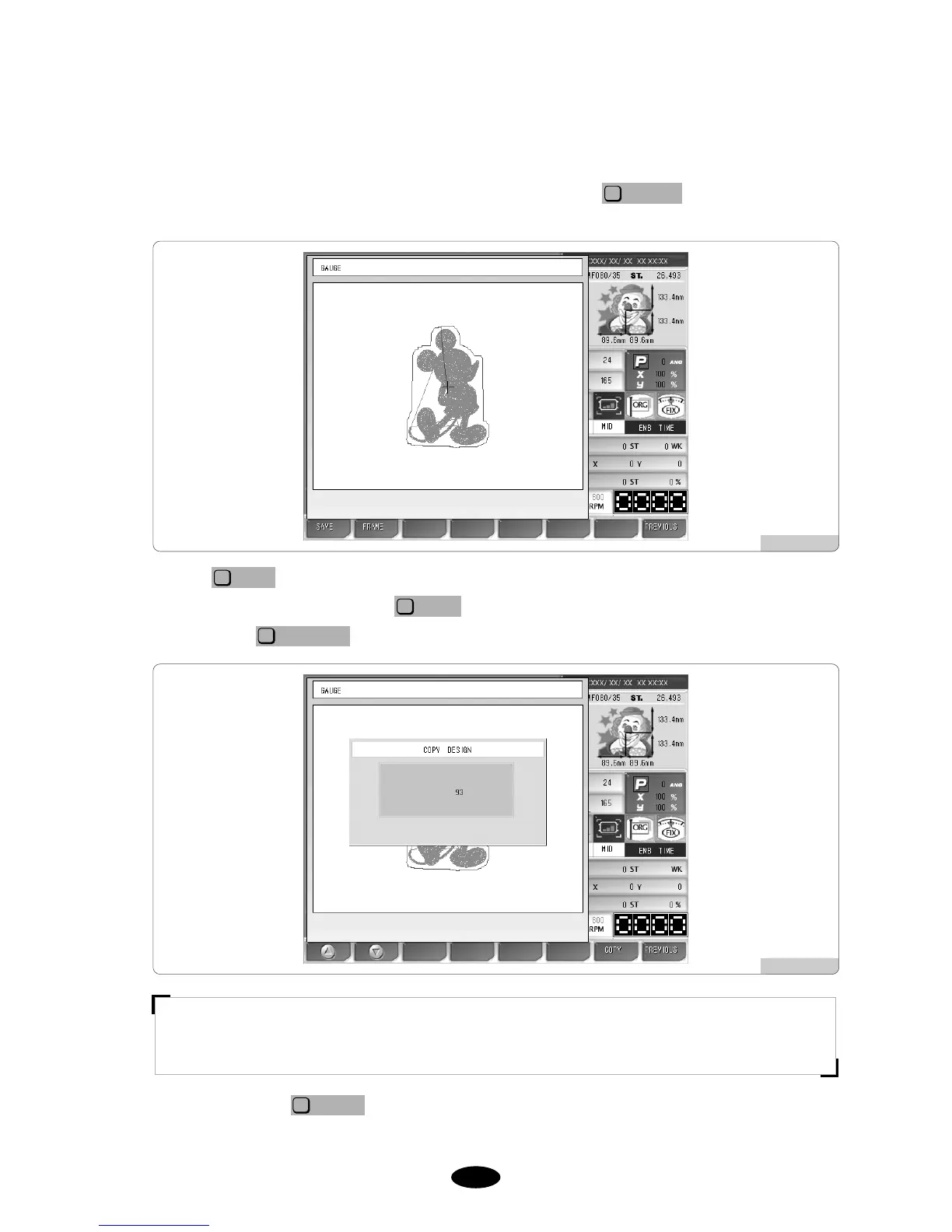

[Fig. 5.5.2-1]
[Fig. 5.5.2-2]
