Swift Motorhome Owner's Handbook

Electrical Systems
29
KT9M5

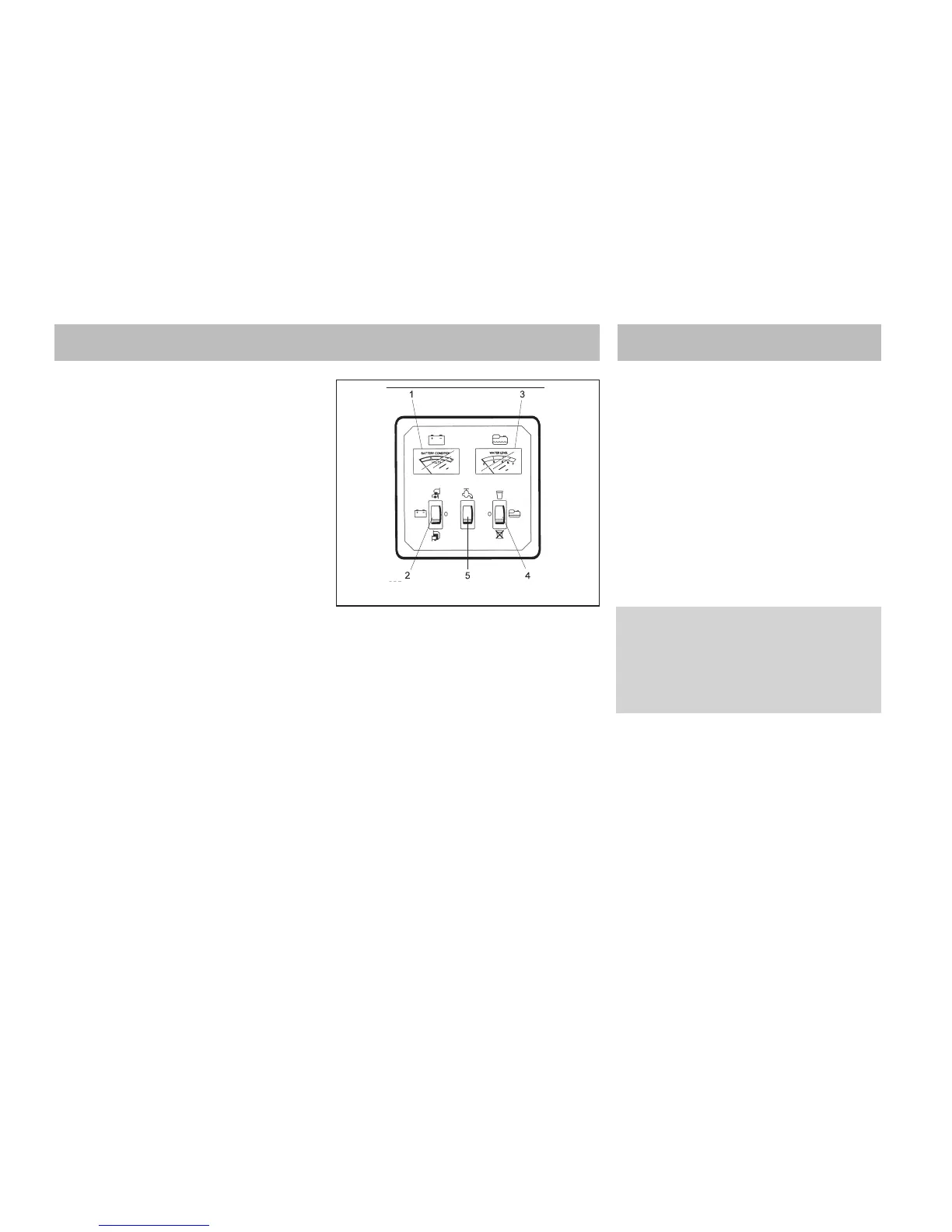

KT9M5 DISTRIBUTION PANEL
The 12V distribution panels have the
following facilities:
1. Battery Condition Indicator
2. Battery Selector Switch
3. Water Level Indicator
4. Water Level Selector Switch
5. Pump Isolation Switch
OPERATION
Battery Condition Indicator and Selector
Switch
1. Select supply from either MOTORHOME
AUXILIARY or CAB battery by use of the
3 position switch.
2. Switch 230V charger off. Check that the
meter-needle moves into the yellow or
green sectors of the scale, indicating
satisfactory state of battery charge. Red
sector indicates charging is required.
12V DC power is now distributed to all
circuits.
If the central OFF position is selected, both
MOTORHOME AUXILIARY and CAB battery
supplies are switched off. If however, mains
supply is connected, a 12V supply will still be
available direct from the transformer/charger
unit.
FUSES
Each 12V circuit is protected by a blade fuse
of the appropriate rating. These fuses can be
found in the PMS4 unit or in the fuse-block in
the wardrobe. The refrigerator fuse is
mounted under the bonnet in all models.
If it is necessary to replace a fuse the current
rating, which is marked on the fuse end cap,
must be STRICTLY observed.
Should a replacement fuse blow immediately
after fitting, under NO CIRCUMSTANCES
should it be replaced again without first
investigating the cause of the problem.
WARNING: Do not start your motor-
home engine if the mains supply is
connected. If the engine is started with
KT12SM/PMS4 switched on and the
KT9M5 switched to CAB then the output
fuse will blow on the KT12SM/PMS4.
Water Level Indicator and Selector Switch
1. Select supply from either MOTORHOME
AUXILIARY or CAB battery by use of the 3
position switch.
2. Move the water level selector switch to
the right or down to obtain a reading on
the level indicator of the contents of the
waste water tank (when fitted). The gauge
only shows when the tank is full.
3. Move the selector switch to the left or up
to obtain a reading of the contents of the
fresh water tank.
4. The central OFF position isolates both
water level sensors, and no reading will be
shown on the indicator.
