Equipment Details
69

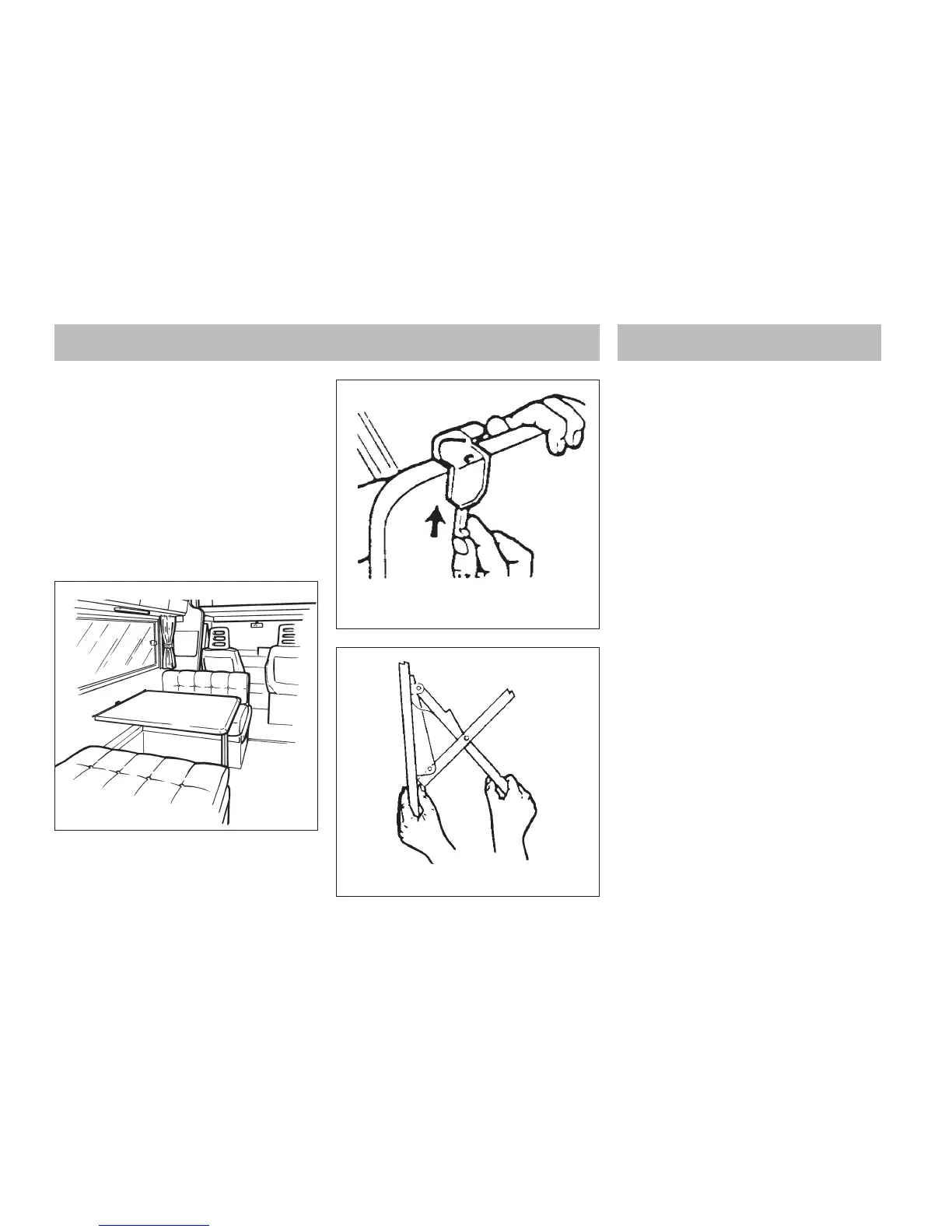

FREE STANDING TABLE
Note: The free standing table legs have a
positive locking mechanism. Care must be
taken to ensure that, when folded, the leg
which is closed first locks into the second
position.
When engaging legs in down position the
mechanism must be positively locked down.
CAUTION!
When erecting the free standing table,
be careful to avoid trapping fingers.
Table Securing Clip
To lock table, push clip to rail.
NOT TO SCALE
ROOF LIGHTS
When opening the roof lights, care must be
taken to release the locking mechanism as
the unit is raised.
Roof lights must be fully closed when driving.
Roof lights provide 12,500mm
2
of fixed
ventilation each.
WINDOWS
Some opening windows have two catch
positions. The first position is for ventilation
the second seals the window from ventilation
and rain.
HEKI-1 ROOF LIGHT (SEITZ)
To open the lift/tilt roof light, turn the hand
crank until a resistance is felt - maximum
angle of opening 70°.
To close the lift/tilt roof light, turn the hand
crank until the glass pane is lying in position,
then turn for another 2-3 turns to lock the
roof completely. Check the roof is completely
locked (lift the glass by hand).
Only use the tilt mechanism when the roof is
in the closed locked position.
Always use two hands to tilt the roof light
Heki-1 roof lights give no fixed ventilation.
