TRUMATIC C 3400/C 6000
OPERATING INSTRUCTIONS
Attention: If the heater is not being used,
always drain the water contents if there is
a risk of frost. There shall be no claims
under guarantee for damage caused by
frost!
FUNCTION DESCRIPTION
The Trumatic C heater is operated with a
burner with fan assistance.
In
winter operation the appliance
automatically selects the most favourable
burner level corresponding to the
temperature difference between the
temperature setting and the actual room
temperature. Model C 6000 has three power
levels (2000, 4000 and 6000 W).
Model C 3400 has two power levels (2000,
3400 W) Water filled in the storage water
heater is automatically heated as well.
In
summer operation the water is heated at
the lowest burner level. When the water
temperature of 60° or 40° is reached the
burner switches off and the yellow indicator
lamp goes out.
In the standard models operation is also
possible without water contents. In the
special version with electric heating 230V
the appliance is only to be operated in the
“Summer operation” with water (this
applies to both gas and electrical
operation).
If only the cold water system is being
operated, without using the water heater, the
heater tank also fills up with water.
In order
to avoid damage by frost, the water
contents must be drained by operating the
safety/drain valve,
also when the water
heater has not been used. As an alternative,
a shut-off valve (resistant to hot water) can
be installed upstream of the cold and hot
water connection.
Attention: The water tank lining is food
proof. However, we do not recommend using
the water as drinking water!

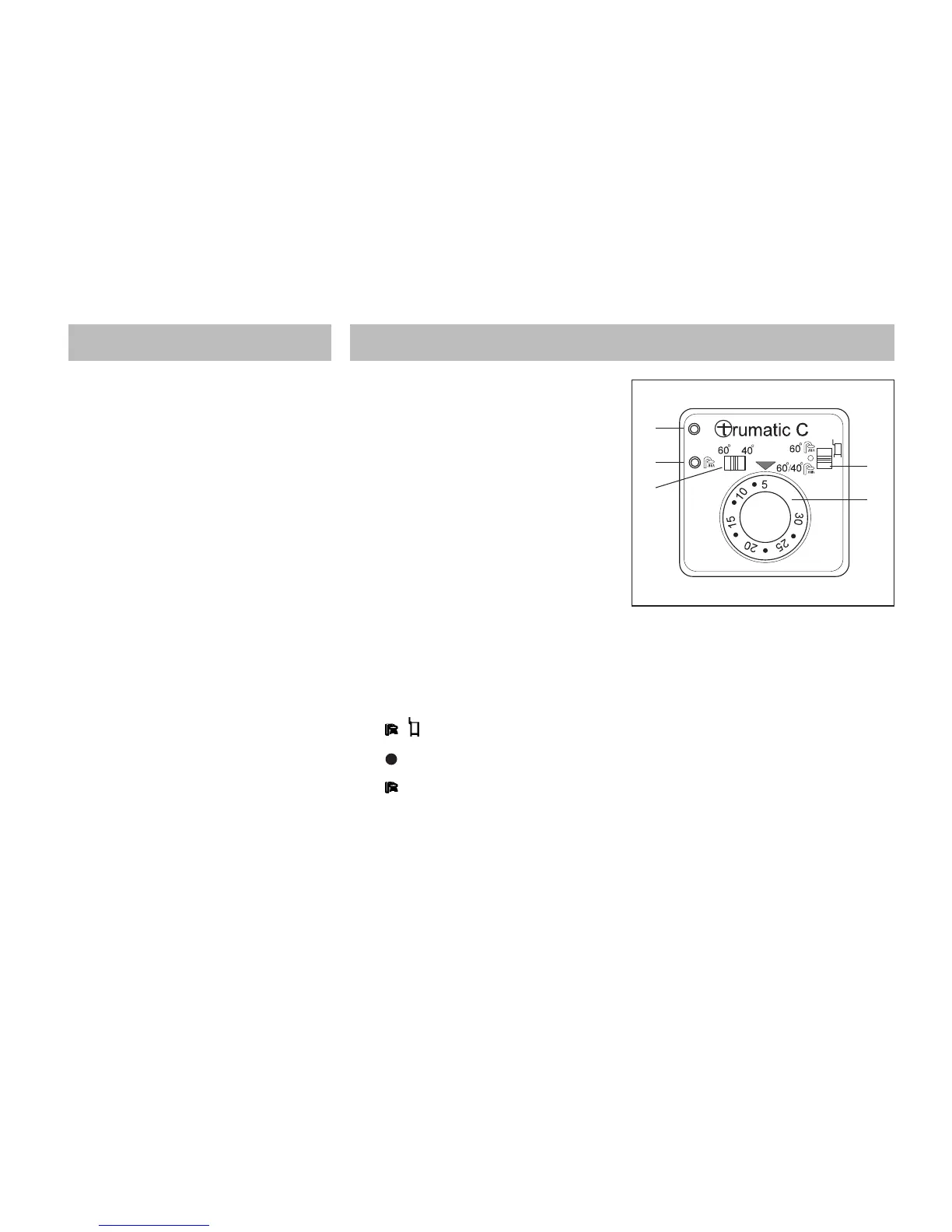

CONTROL PANEL WITH THERMOSTAT
a = Rotary control knob for room
temperature (illuminated by green
indictor lamp “Operation”)
b = Slide valve:
Heater + water heater
(Winter operation)
Off
Water heater
(Summer operation)
c = Slide valve for water temperature 60°
or 40°C (summer operation)
d = Red indicator lamp “Failure ”
e = Yellow indicator lamp
“Water heater heating up phase”
SWITCHING ON
1. Check that the cowl is not obstructed.
Always remove any covers.
2. Turn on gas cylinder and open quick-
acting valve in the gas supply line.
3. Set slide valve (b) to “winter operation” or
“summer operation”.
4. In winter operation select required room
temperature at rotary control knob (a).
5. In summer operation set slide valve (c)
to required water temperature.
SWITCHING OFF
Set slide valve (b) to centre position. When
the appliance is switched off after a heating
phase, the fan may continue running in order
to utilize the residual heat.
