specimen by sliding it on the stage from the front toward the rear. After
setting the specimen, return the specimen holding lever gently
●
Remove specimen holder for fast hand scanning of slides
4. Objectives
●
Objectives are installed in revolving nosepiece. If necessary to reinstall,
lower the stage completely, screw the objectives into the revolving
nosepiece so that clockwise rotation of the nosepiece brings the next
higher magnication objective into position.
5. Condenser
●
The condenser is mounted in the stage and it is used in conjunction
with the iris diaphragm. The function of the condenser is to provide
full illumination to the specimen plane and to enhance the resolution and
contrast of the object being viewed.
6. Eyepiece tube
● Eyepiece tube is preinstalled in microscope arm. If necessary to reinstall,
loosen the eyepiece tube clamp screw, insert the round dovetail mount
on the eyepiece tube into the round dovetail mount on the microscope
arm, tighten the eyepiece tube clamp screw to secure the eyepiece tube
in place.

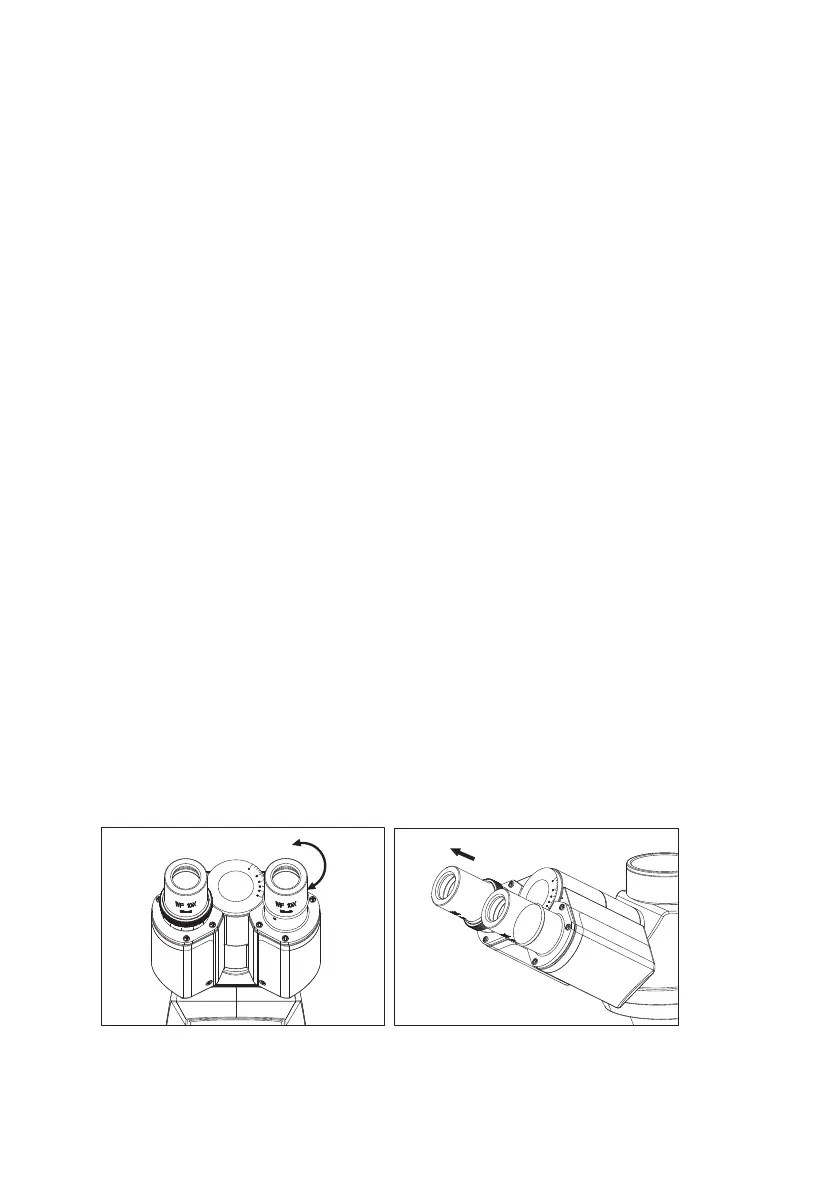

7. Eyepieces
●
Use the same magnication eyepieces for both the eyes.
●
Insert each eyepiece completely into the eyepiece sleeve.
●
Twist the eyepiece (anti-clockwise or clockwise) with 20-30 degree and
put the eyepieces gently out when removing the eyepiece.
8. Filters
●
The swing-in and swing-out lter holder is under Abbe condenser. Swing
