V. Photomicrographic procedure
ā

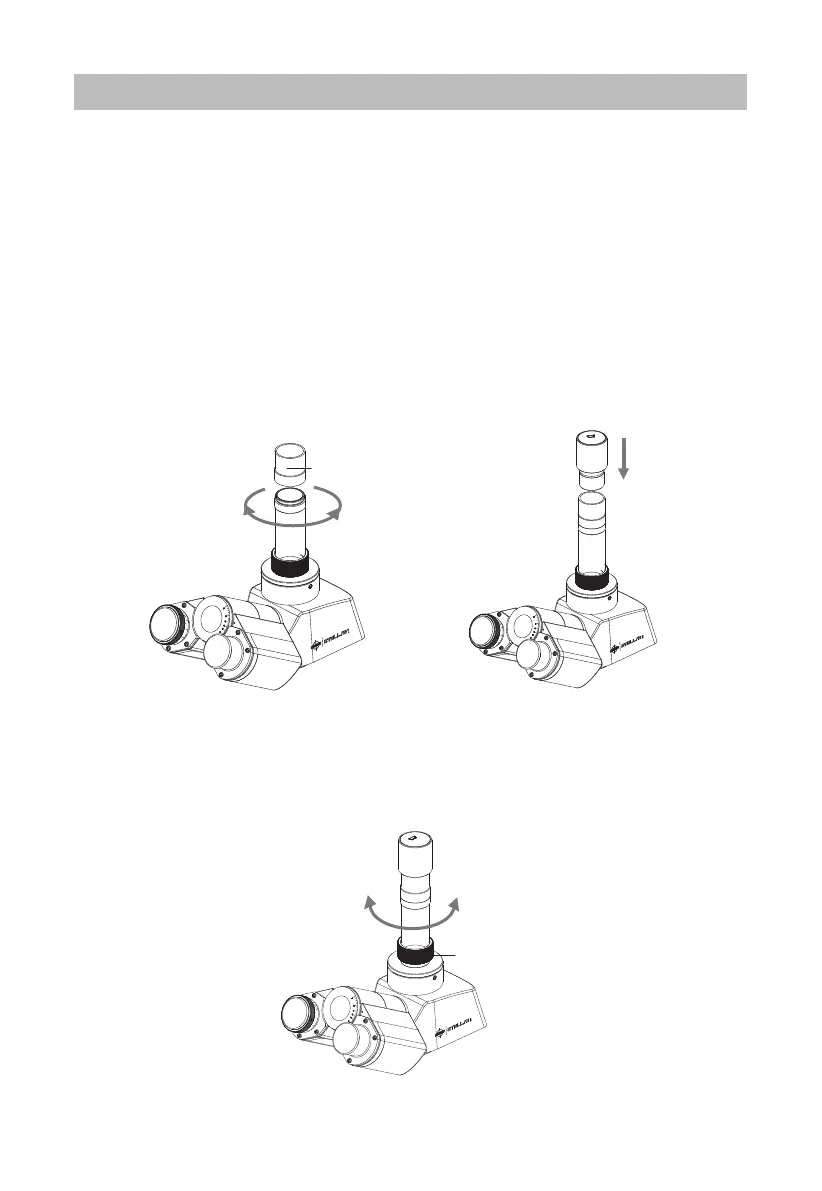

Use of eyepiece/C-mount dual-purposes adapter (Included)
- Loosen the set screw of photo port by the provided hexagon wrench and
remove the dustproof cap.
- The adapter can be used as a standard 1X C-mount for the C-mount
camera. Screw the C-mount camera into the adapter and connect it with
your computer.
- If you would like to mount an eyepiece or eyepiece camera (not included)
directly on it, screw the provided eyepiece ring into the top of the adapter
and insert the eyepiece or eyepiece camera into the eyepiece ring.
- The parfocality between the eyepieces and the trinocular port has been
set before shipment and should not need adjustment. If necessary,
however, you can loosen the clamp ring and screw the adapter up or
down to adjust the adapter height position and resulting parfocality.
