SYM 2. MAINTENANCE INFORMATION
2-13

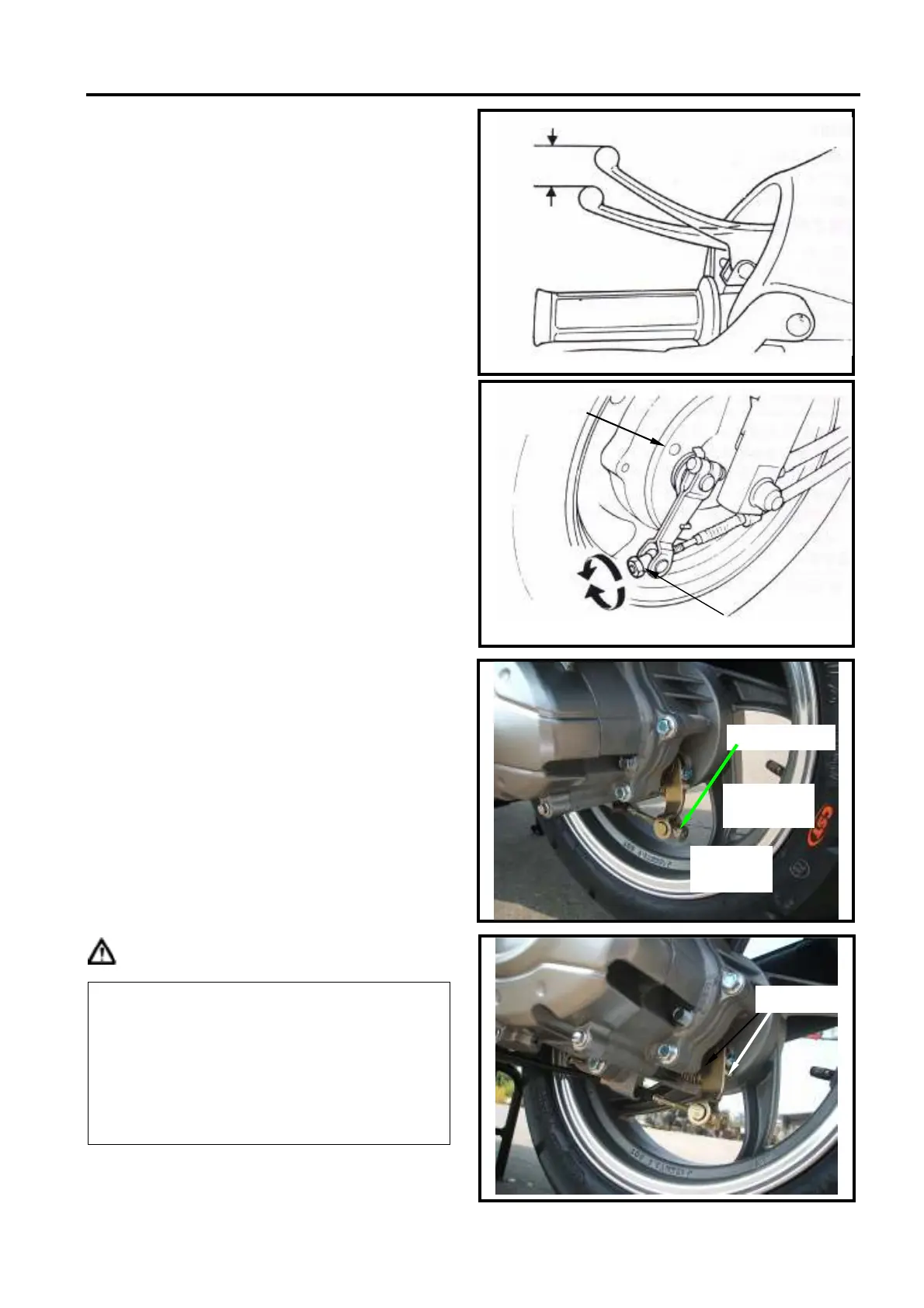

DRUM BRAKE SYSTEM
Front Brake Free Play: (Drum brake)
Measure free play of rear brake level at the
end of the lever.
Free play: 10-20 mm
Adjust the free play by turning the front
brake adjustment nut if necessary.
REAR BRAKE FREE PLAY: (DRUM
BRAKE TYPE)
Measure the free play of the front brake
lever at the end of the lever.
Free play: 10-20 mm
Adjust the free play by turning the front
brake adjustment nut if necessary.
BRAKE CONFIRAMTION
Caution
After brake adjustment, it has to check
the brake operation to make sure the
front and rear wheel can be braked.
Pull the brake lever, and make sure that
the wear limit marks of brake ling on the
both front & rear brake arm are closer
and touch to the “
marks. If so,
replace the brake ling with new one.
10
20mm
Adjustment nut
Increasing free
play
Decreasing free play
mark
Adjustment nut
Increasing
free play
Decreasing
free play
marks
