12. BODY COVER SYM
12-6

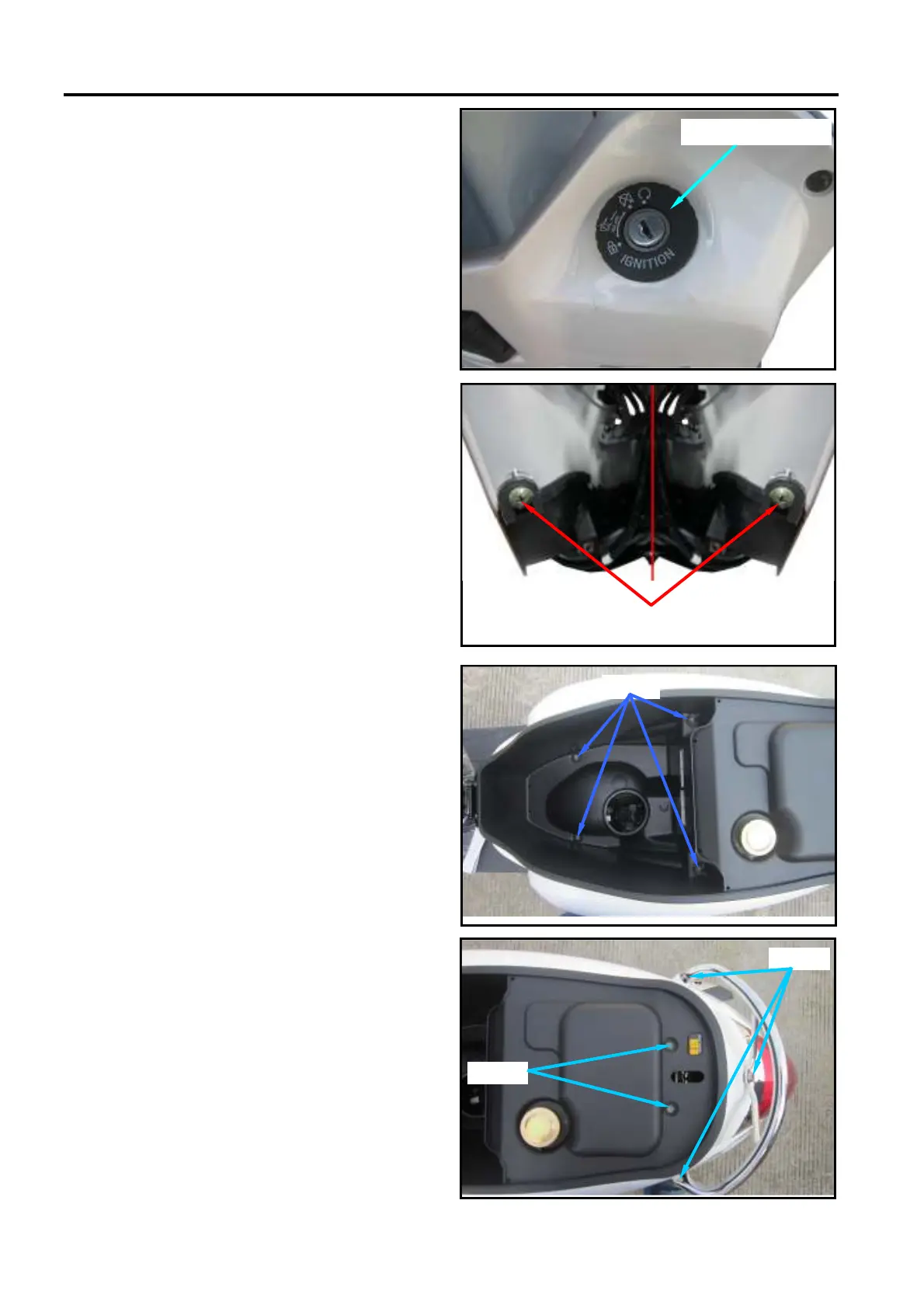

Remove the main switch cover.
Remove the front cover and front under
cover.
Remove the 2 screws between the inner box
and the floor panel.
Remove the front inner box
Installation
Install the inner box A and the front inner box
B according to the reverse procedure of
removal.
BODY COVER/REAR CENTER
COVER/REAR FENDER
Removal
Open the seat.
Remove 4 bolts in the front of the luggage
box.
Remove 2 bolts in the rear of the luggage
box.
Remove the luggage box.
Remove the rear carrier. (3 bolts)
2 screws
3 bolts
2 bolts
M
ain switch cover
4 bolts
