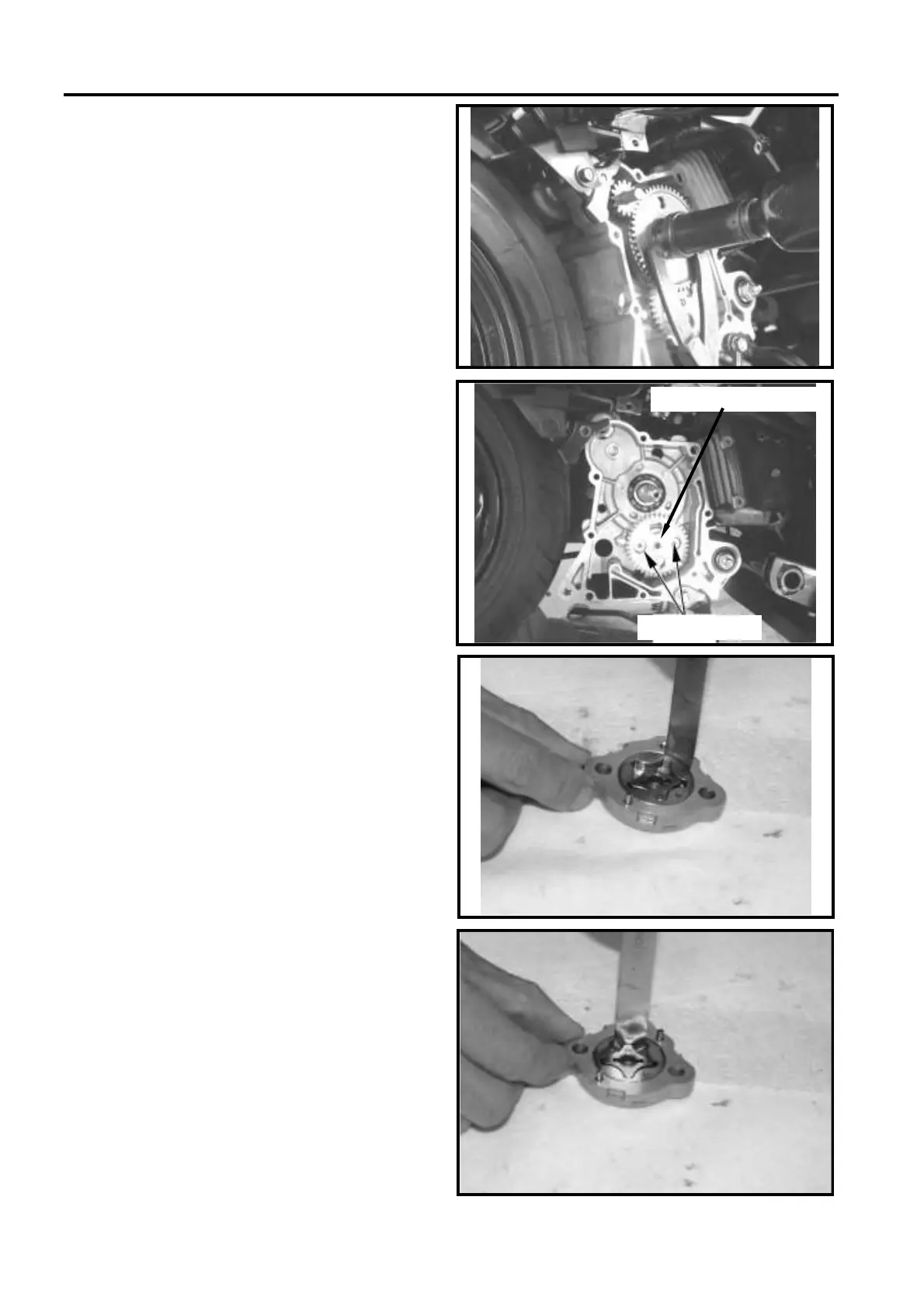

3. LUBRICATION SYSTEM SYM
3-4
OIL PUMP
Oil Pump Removal
Remove the alternator (refer to chapter10).
Remove the engine right crankcase cover.
Make sure that the pump axle can be rotated
freely.
Remove the oil pump driving gear nut.
Remove the oil pump .
Oil Pump Inspection
Check the clearance between oil pump body
and outer rotor.
Limit: below 0.12 mm
Check clearance between inner and outer
rotors.
Limit: below 0.12 mm
P
ump driving gear
Screws
×
2
