Sym Fiddle III 50 - OIL PUMP Re-assembly and Installation

SYM 3. LUBRICATION SYSTEM
3-5

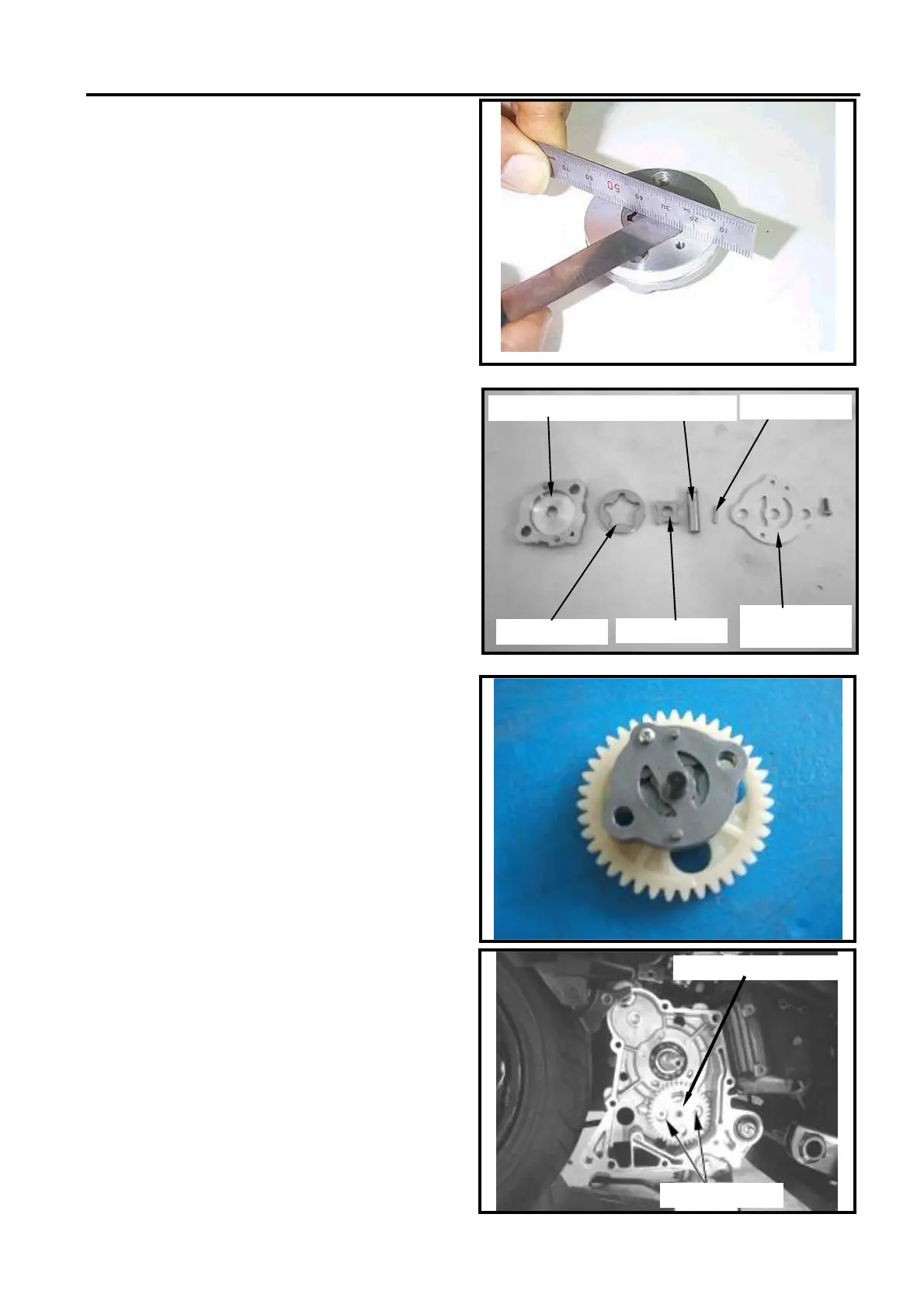

Check clearance between rotor side face
and pump body.
Limit: below 2.0 mm
Oil Pump Re-assembly
Install inner and outer rotors into the pump
body.
Align the indent on driving shaft with that of
inner rotor. Install the driving shaft.
Install the oil pump cover and fixing pin
properly and then tighten screw. (1 screw)
Oil Pump Installation
Install according to the reverse procedure of
removal.
outer rotor
inner
rotor
Oil pump body
Oil
pump
cover
Drive s
haft
Fixing pin
P
ump driving gear
Screws
×
2
