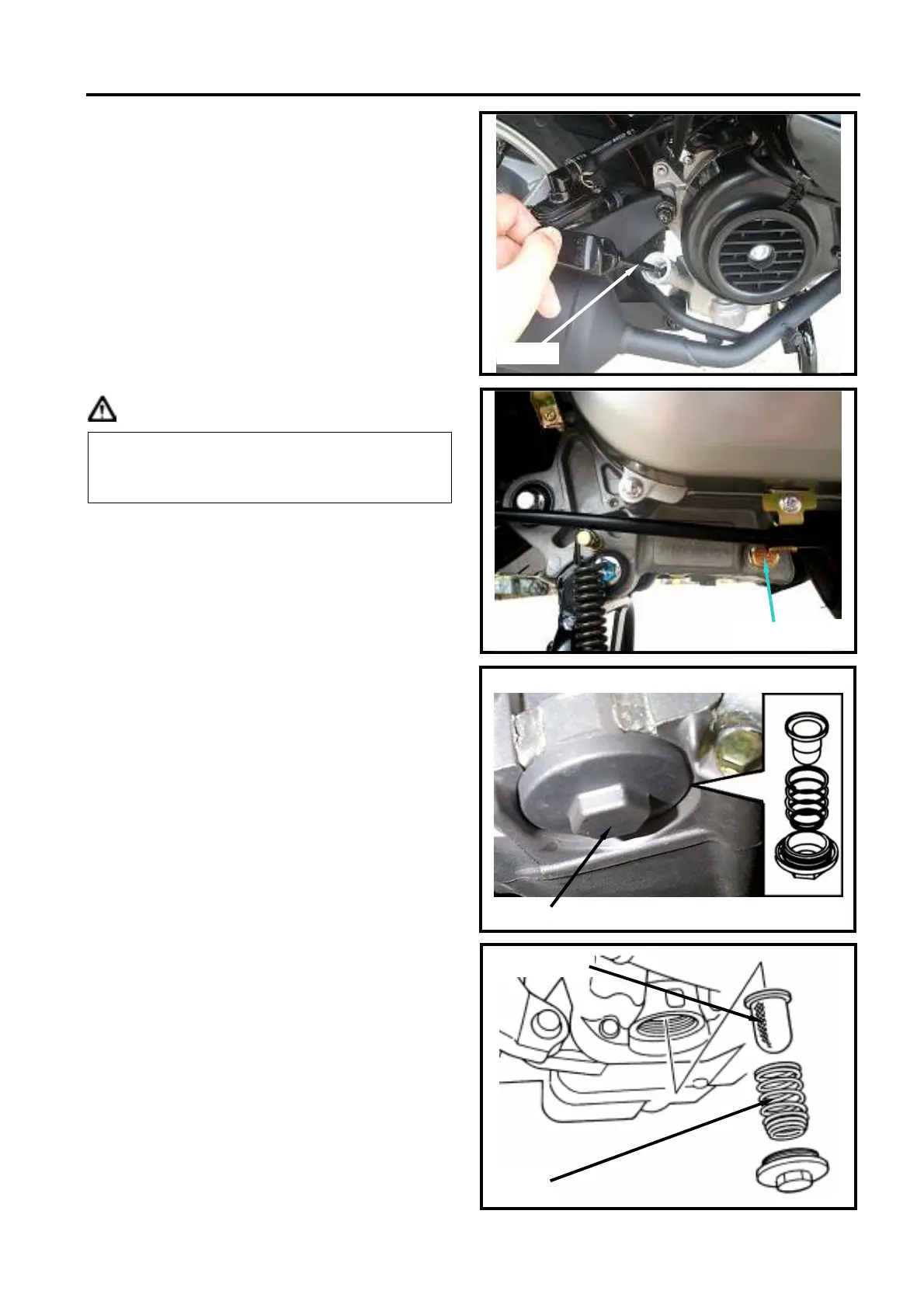

SYM 3. LUBRICATION SYSTEM
3-3
ENGINE OIL
Turn off engine, and park the motorcycle in
flat ground with main stand.
Check oil level with oil dipstick after 3-5
minutes.
Do not rotate the dipstick into engine as
checking.
If oil level is nearly low level, fill out
recommended oil to upper level.
Oil Replacement
Caution
Place an oil pan under the motorcycle, and
remove oil strainer cap.
Make sure if the aluminum washer of the
draining bolt is damaged. If so, replace it
with new one.
Install the drain plug and tighten it.
Torque value: 3.5~4.5 kgf-m
CLEANING ENGINE OIL STRAINER
Remove the oil strainer cap.
Remove oil strainer and spring.
Clean oil strainer (recommended using
compressed air to clean dirty foreign).
Check if the strainer and O-ring of the oil
strainer are broken. Replace with new one if
found.
Install the oil strainer and spring.
Install the oil strainer cap and tighten it.
Torque value: 1.0~2.0 kgf-m
Fill out oil to the oil filler (Oil viscosity SAE
10W-30)
Use SAE 5W-40 when outside temperature
is below 0.
Engine oil quantity: Replacement 650 c.c.
Drain oil as engine warmed up so that
make sure oil can be drained smoothly and
completely.
Oil strainer cap
oil strainer
spring
Dipstick
Oil drain plug
