SYM 5. REMOVAL OF ENGINE
5-3

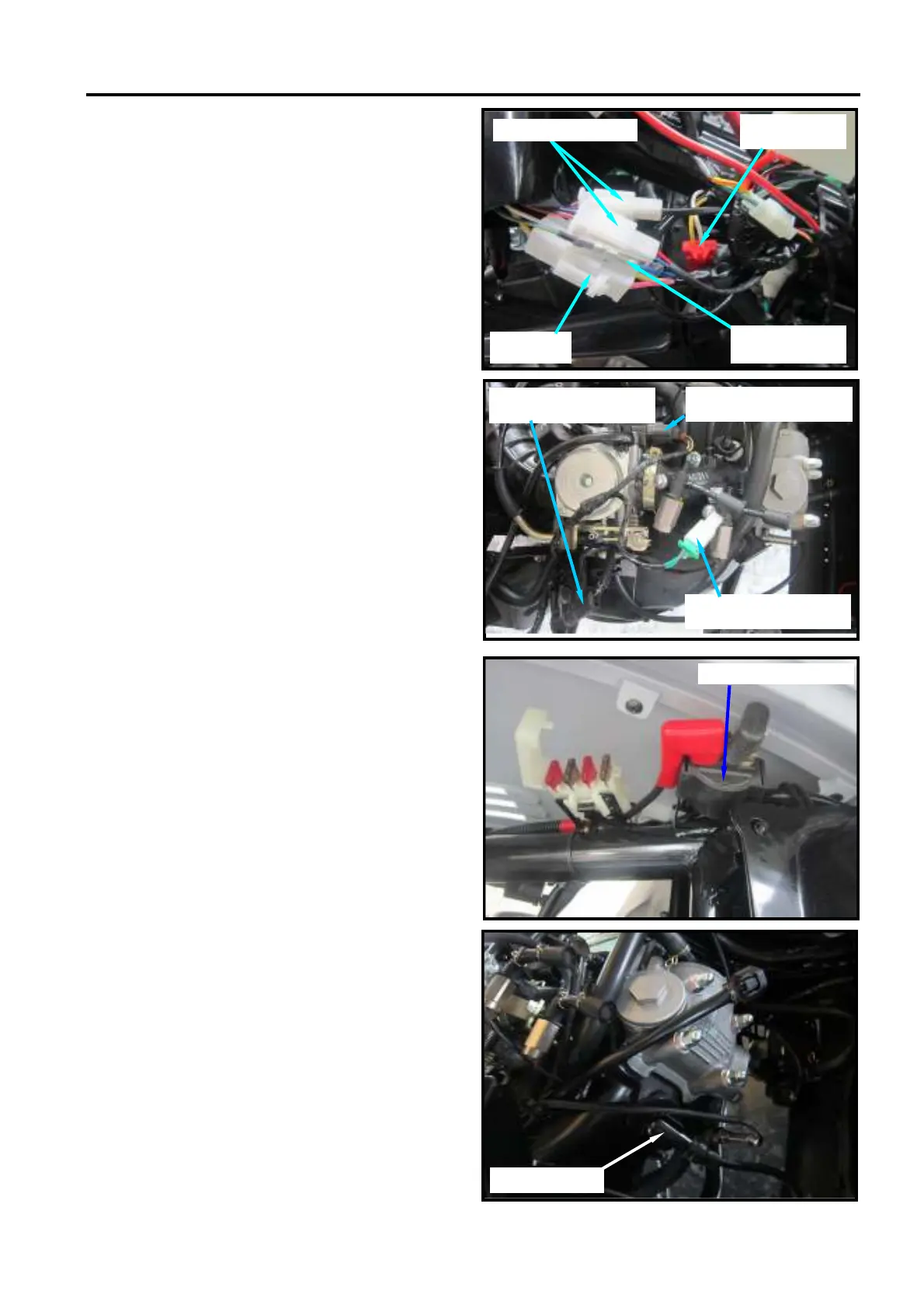

ENGINE REMOVAL
Open the seat.
Remove the luggage box assembly (4 bolts).
Remove the body cover .
Remove 2pcs gulp valve connector.
Remove the power connector of auto by-
start.
Remove the generator connector and pulse
generator connector.
Remove the connector of Cylinder
temperature sensor.
Remove the connector of crankshaft position
sensor.
Remove the connector of oxygen sensor.
Remove the starter motor wire on the starter
magnetic switch.
Remove the spark plug cap.
Starter magnetic switch
Spark plug cap
Auto by-start
connector
Generator
connector
Pulse generator
connector
G
ulp valve connector
The connector of oxygen
sensor.
The connector of cylinder
temperature sensor
The connector of
crankshaft position sensor.
