8. V-BELT DRIVING SYSTEM/KICK STARTER ARM/STARTER CLUTCH SYM
8-4

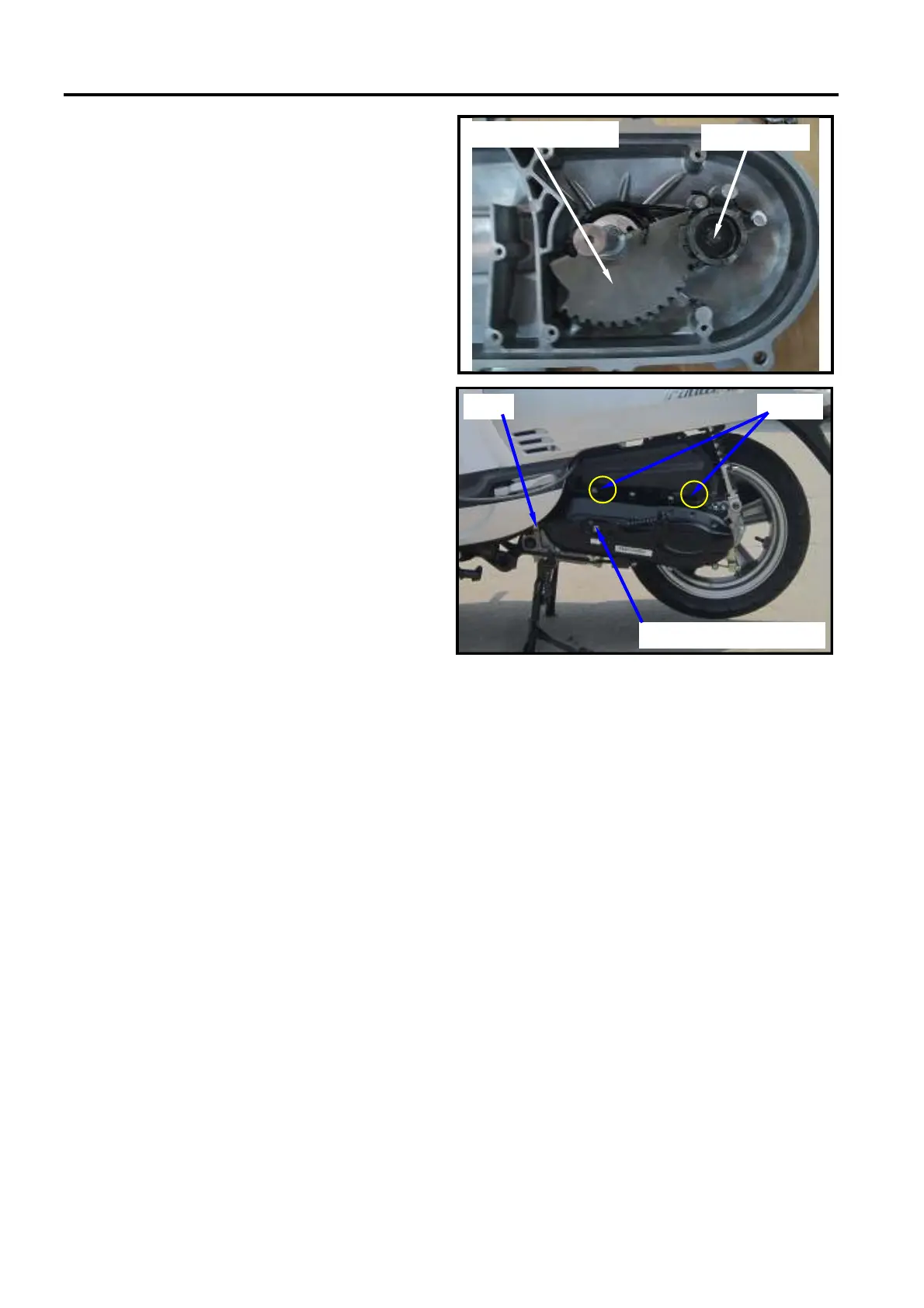

Reassembly
Apply with some specified grease on the
gear, shaft.
Install the friction spring of driving gear onto
convex part of the case cover.
Install, return spring and starter shaft as
diagram shown.
Install kick starter arm temporary.
Rotate the lever and then align driving gear
with width-tooth on the starter shaft.
Install thrust washer and socket onto starter
shaft.
Installation of the left crankcase
cover
Install the left crankcase cover. (8 bolts)
Install front vent tube of left cover and tighten
the strap.
Install kick starter arm. (1 bolt)
Tighten the air cleaner. (2 bolts)
driving gear
starter shaft gear
Kick starter arm shaft
Strap
Bolts
To Next Page
