SYM 8. V-BELT DRIVING SYSTEM/KICK STARTER ARM/STARTER CLUTCH
8-7

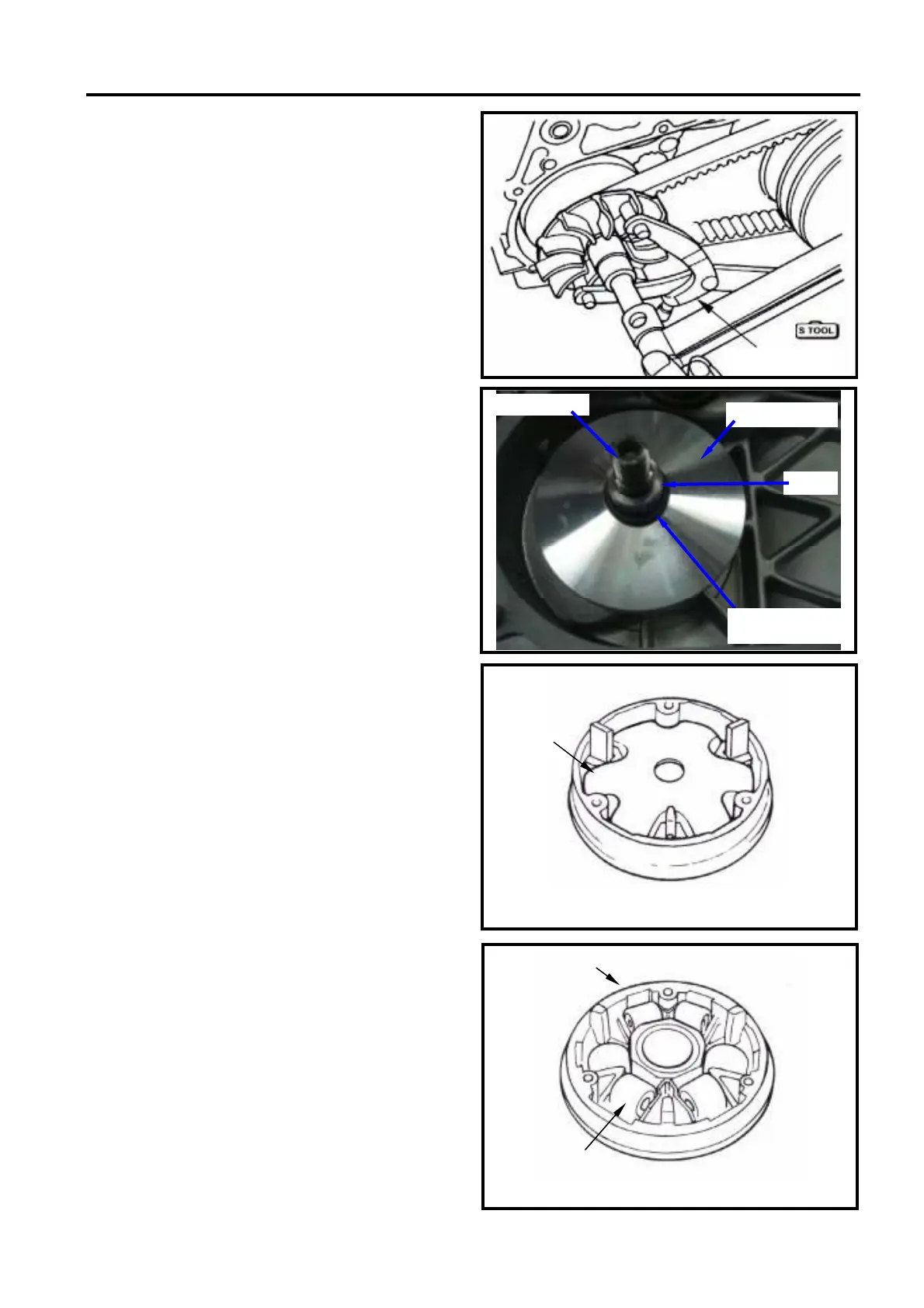

SLIDING PULLEY
REMOVAL
Remove left crankcase cover.
Hold driving pulley with universal fixture, and
then remove driving pulley nut.
Remove driving pulley.
Remove the sliding pulley fixing nut and
remove the driving belt from the sliding
pulley.
Remove the driving belt from the sliding
pulley.
Remove the limited speed bush.
Remove the bush and remove the sliding
pulley from the crankshaft.
Remove tilt plate.
Remove weight rollers from sliding pulley.
Tilt plate
Sliding pulley
Roller
Bush
Sliding pulley
bush
Special tool
To Next Page
