10. A.C. GENERATOR/STARTING CLUTCH SYM
10-4

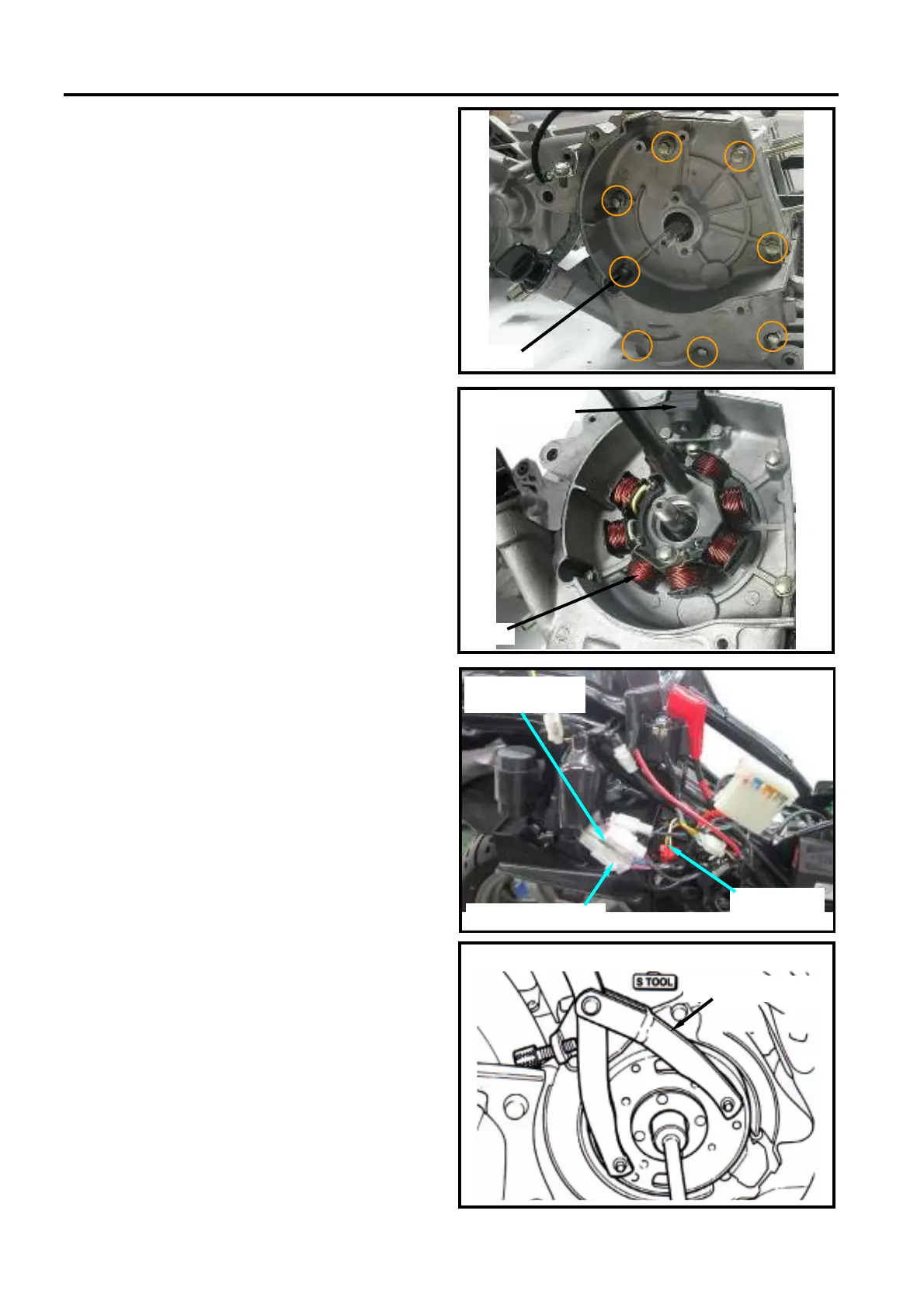

RIGHT CRANKCASE COVER
INSTALLATION
Install setting pin and new gasket on the
crankcase.
Replace the right crankshaft oil seal of the
crankcase and apply some oil onto the oil
seal lip.
Install right crankcase cover onto the right
crankcase. (8 bolts)
Torque value: 1.5~2.0kgf-m
MOUNTED COIL SET
INSTALLATION
Install the coil set onto right crankcase
cover. (2 bolts)
Install pulse generator. (2 bolts)
Torque: 0.8~1.2kgf-m
Tie the wire harness hose onto the indent of
crankcase.
Install A.C. generator connector and pulse
generator connector.
FLYWHEEL INSTALLATION
Make sure that there is no magnetic powder.
If so, clean up it.
Align insert on crankshaft with the flywheel
groove, and then install the flywheel.
Hold the flywheel with flywheel holder, and
tighten its nut.
Torque value: 3.5~4.5kgf-m
Special service tool:
Universal fixture
Universal fixture
Auto by-start
connector
generator connector
Pulse generator
connector
Pulse generator
Coil
8 bolts
To Next Page
