Sym Fiddle III 50 Service Manual

SYM 16. ELECTRICAL EQUIPMENT
16-21

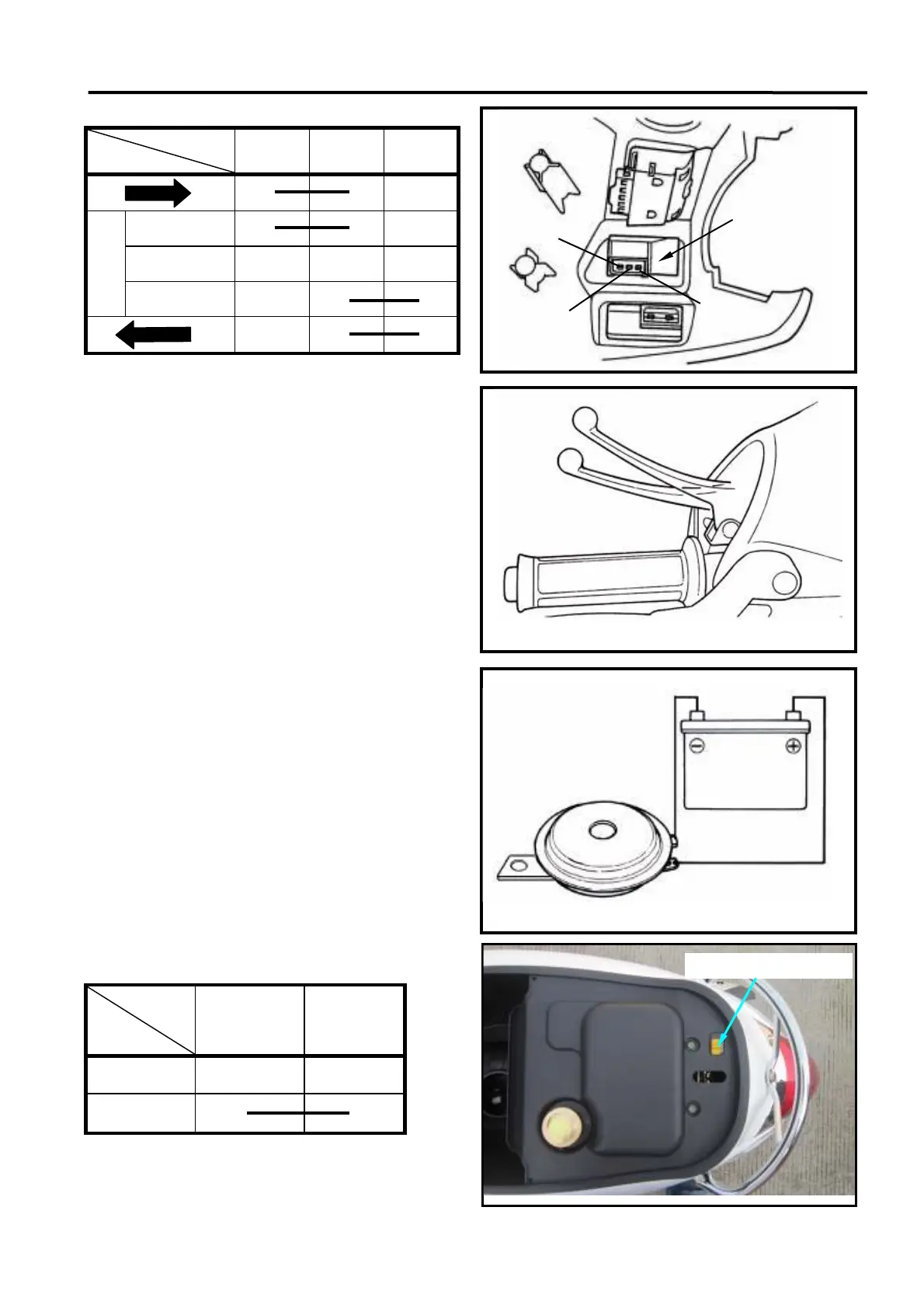

Turn signal light switch
color
Location
Sky
blue
Gray orange
● ●
FROM R
● ●
PUSH OFF
N
FROM L
● ●
● ●
Brake light switch
The circuit of black wire and the
green/yellow wire on the brake light switch
should be in continuity when operating the
brake lever.
If the switch damaged, replace it with new
one.
Horn
Remove the front cover.
Connect the light blue wire on the horn to the
battery positive (+) terminal, and the green
wire to the battery negative (-) terminal.
Then, the horn should sound.
Replace it if necessary.
Engine stop switch
Engine stop switch is under the seat.
When you open the seat ,you can find the
engine stop switch near the rear carrier.
color
Location
Yellow/blue Blue/yellow
Unlock
Lock
●
●
Sky blue
gray
turn signal
light switch
orange
Engine stop switch
