5. Removal & Installation of Engine
5-3

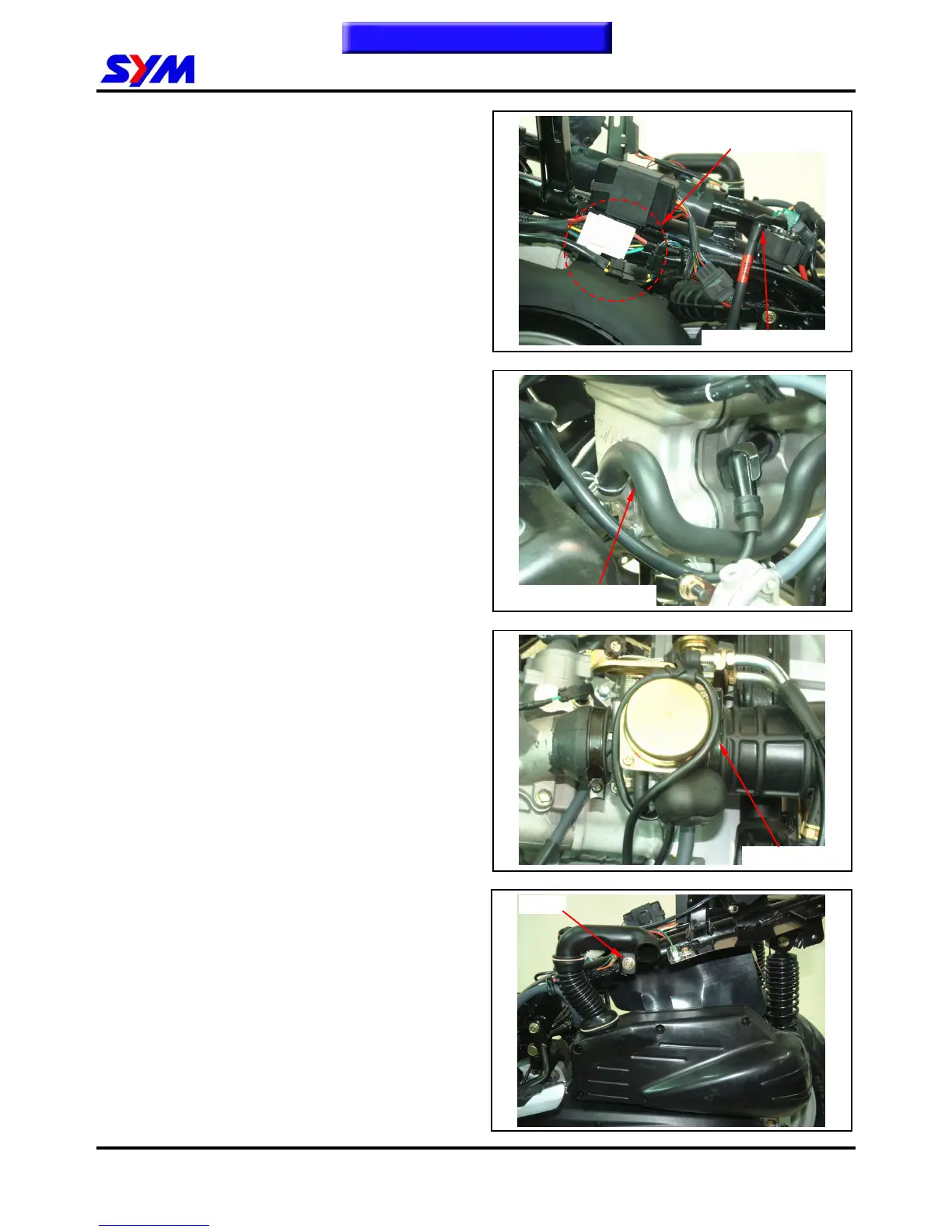

Remove the generator power wire and pulse
generator connector.
Remove the starter motor wire.
Remove engine blow-by pipe.
Remove the fuel line, vacuum hose, and throttle
valve cable from the carburetor.
Loosen the clamp strip of air cleaner and
carburetor, and then remove the air cleaner hose.
Remove the air cleaner inlet pipe connection bolt
(1 bolt).
To this chapter contents
Couplers of the generator and
pulse generator
Starter motor wire
Engine blow-by pipe
Clamp strip
1 Bolt
