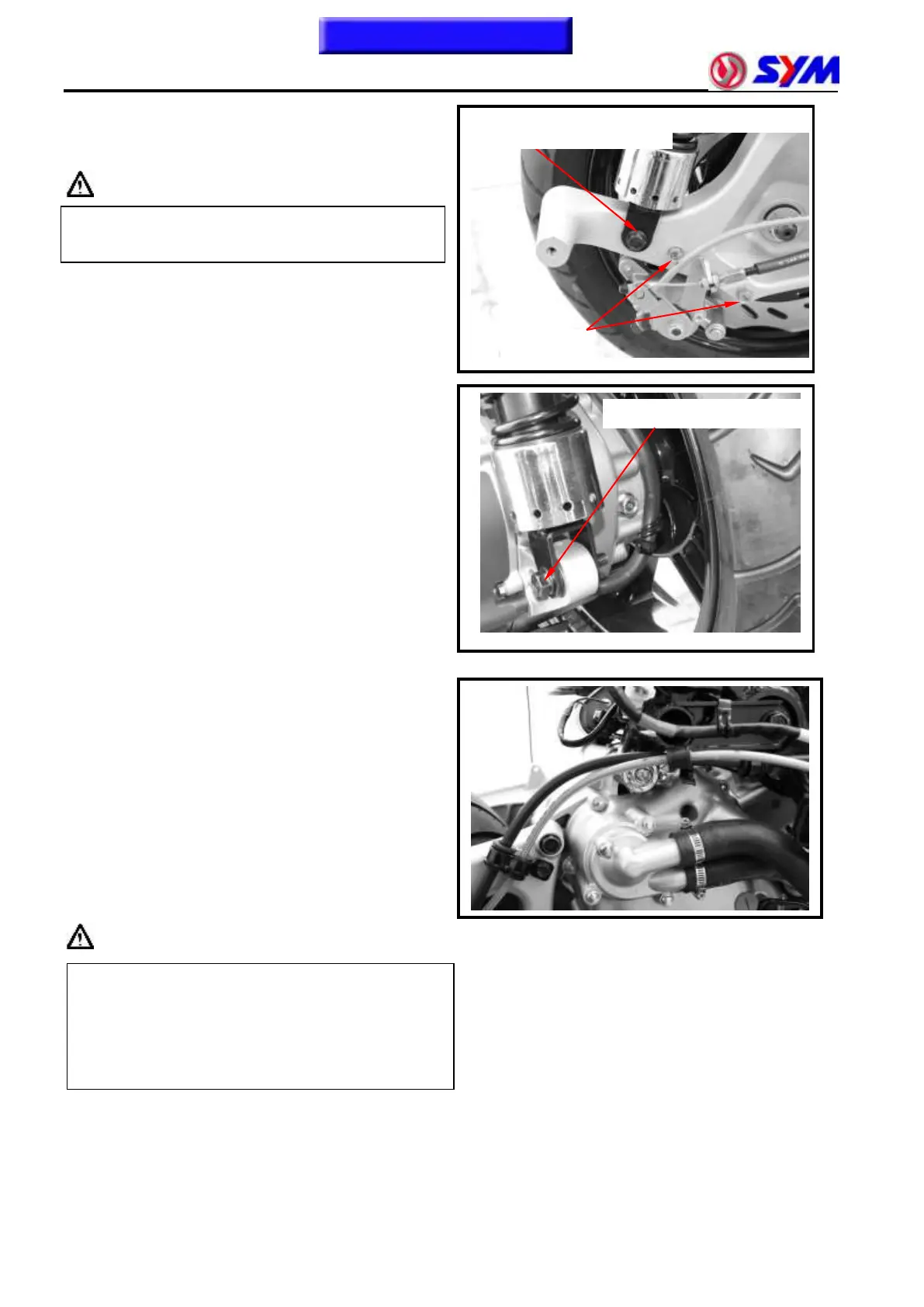

5. Engine Removal
Remove the parking brake cable.
Remove the rear brake caliper (2 bolts).
Caution
Remove the mounting bolt of rear right cushion.
Remove the mounting bolt of rear left cushion.
Remove the engine hanger lock nut.
Remove the engine hanger axle.
Remove the engine.
Engine Installation
Check if the bushings of engine suspension parts
and shock absorber for damage.
Install engine in the reverse procedures of
removal.
Caution
˙Pay attention of foot & hand safety as engine
installation to avoid hurting.
˙Do not bend or twist wires.
˙Cables wires have to be routed in
accordance with normal layout.
Engine Mounting Bolt:
Torque value: 4.0~5.0 kgf-m
Rear shock absorber bolt:
Torque value: UPPER: 3.5~4.5 kgf-m
LOWER: 2.4~3.0 kgf-m
Do not operate brake lever after the caliper is
removed to avoid clipping the brake pad.
