Sym MaxSym 600i ABS Service Manual

9. Final Drive Mechanism
9-1
Mechanism Diagram ............................ 9-1
Precautions in Operation .................... 9-3
Troubleshooting ................................... 9-3
Final Drive Mechanism Disassembly . 9-4
Final Drive Mechanism Inspection ..... 9-4
Bearing Replacement .......................... 9-5
Final Drive Mechanism Reassembly .. 9-7

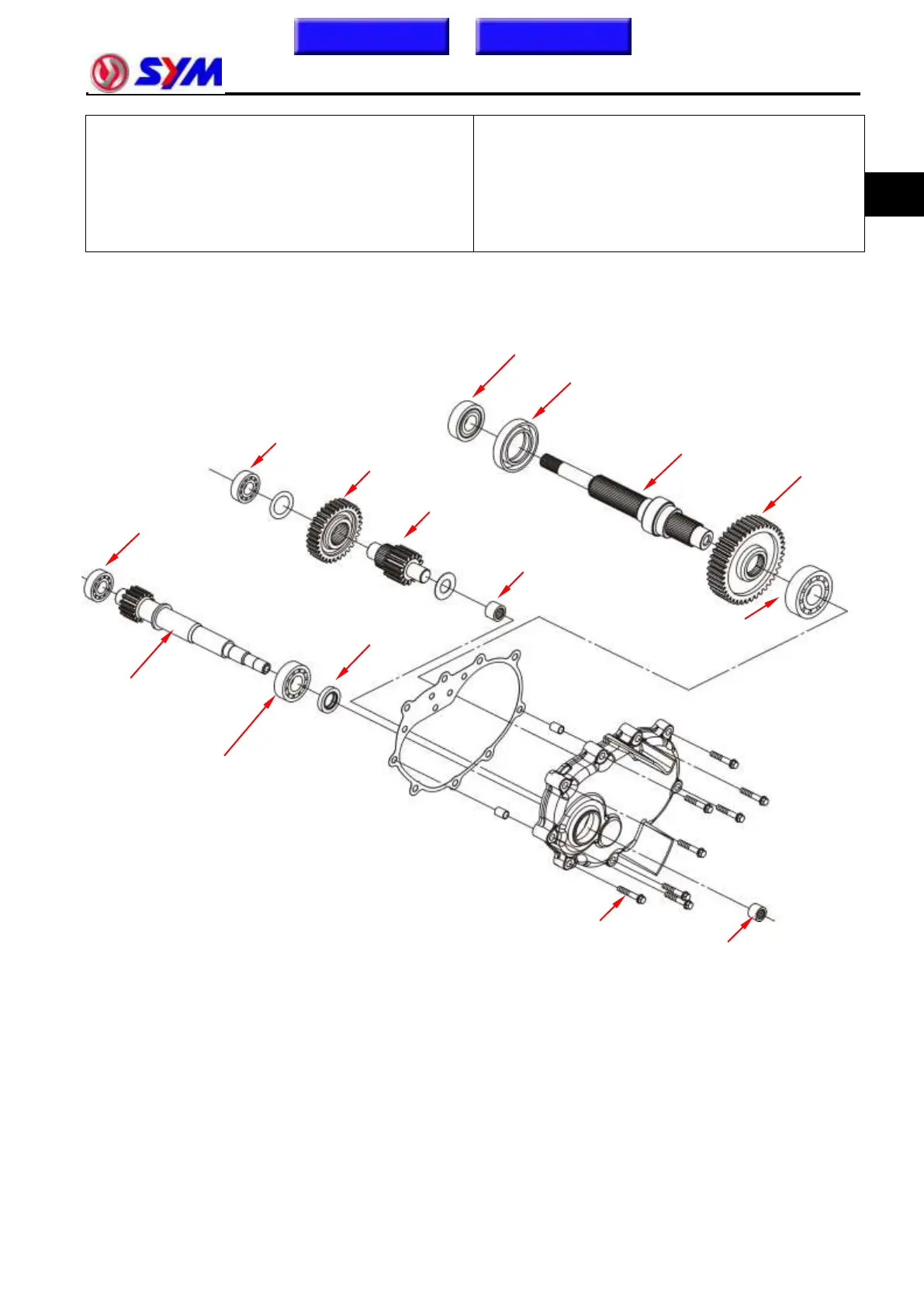

Mechanism Diagram – LX40A
9
Homepage
Contents
Final shaft
Oil seal 45*65*10
Radial ball bearing 6206 UU
Final gear
Radial ball bearing 6205
Radial ball bearing 6204
Counter gear
Counter shaft
Needle bearing NK18/20R
Needle bearing HKS 25*33*18
Oil seal 25*40*7
Radial ball bearing CSB305C
Drive shaft
Radial ball bearing 6204
2.4~3.0 kgf-m
