16. Rear Wheel / Rear Fork / Rear Cushion
16-5

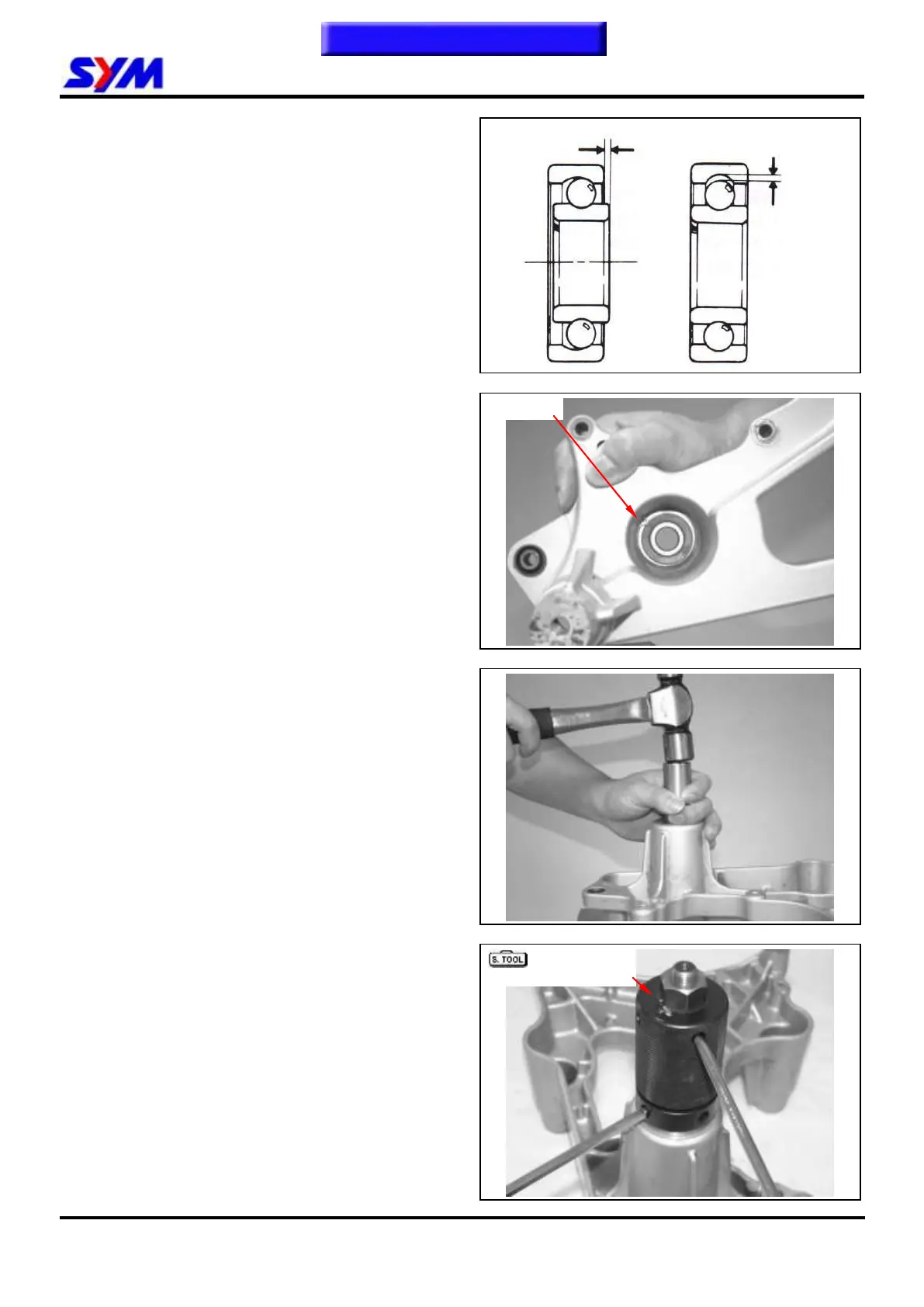

Rear Fork
Inspection rear fork bearing
Rotate the inner ring of the bearing with a finger.
The bearing should move smoothly and quietly.
Check the fit of the bearing and rim.
Replace the bearing if its motion is not smooth or
noisy.
Replacement of rear fork bearing
Remove the bearing lock cir clip.
Uses the bearing driver; drive out the bearing.
Special tool: Bearing driver
Install new rear fork bearing and bearing puller
(6303) onto rear fork.
Install assembly directs puller bearing puller.
Special Service Tools:
Rear fork bearing 6303 bearing puller
SYM-6303000-HMA H9A 6303
Assembly directs puller SYM-2341110
Use screw driver hold bearing puller lower part,
and turn the bearing puller upper part to install the
rear fork bearing.
