13. Body Cover
13-8

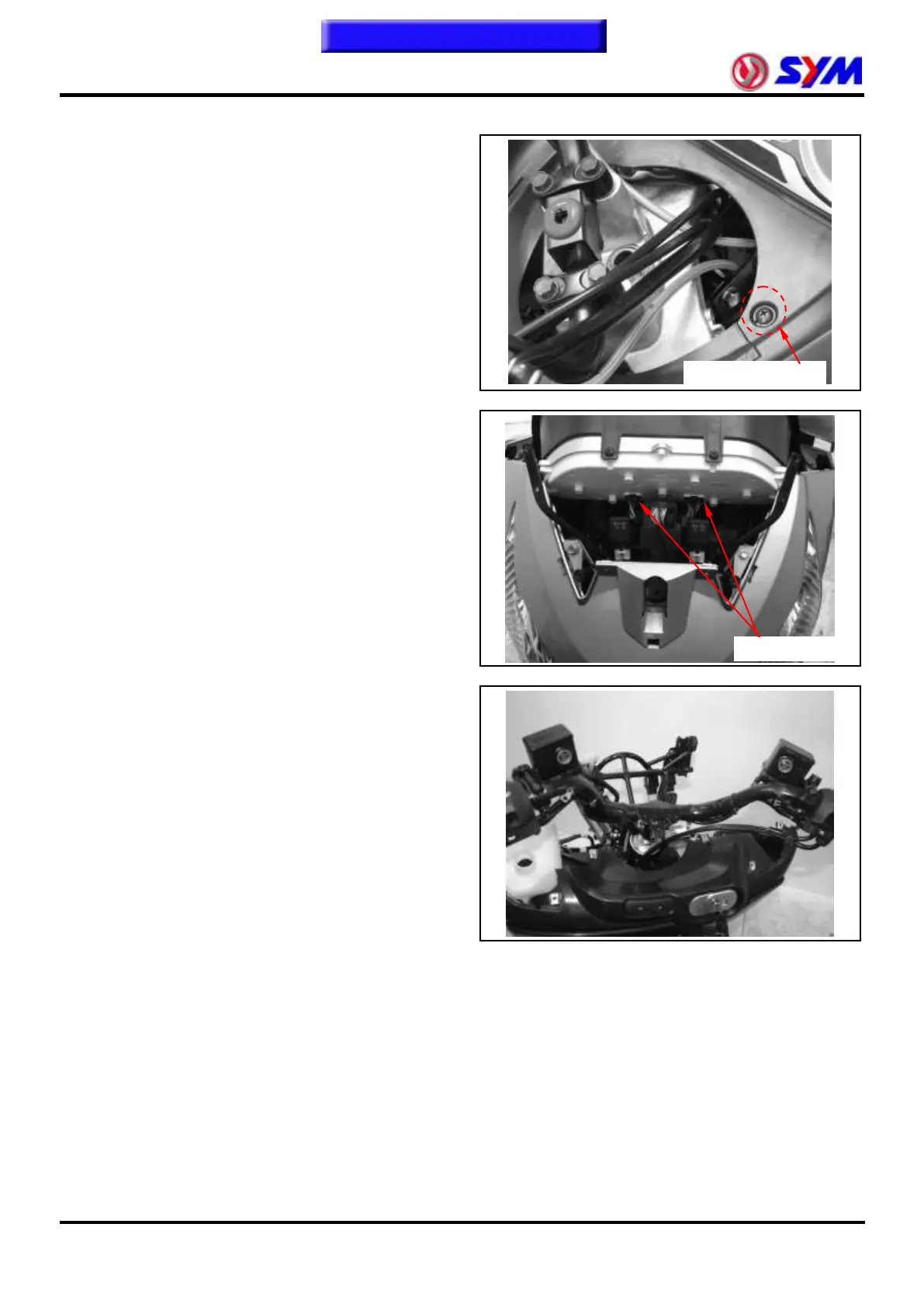

Meter Panel
Remove
Remove wind screen garnish, wind screen, meter
visor and front cover.
Remove reserve tank cap.
Loosen 4screws from right & left side of the meter
panel.
Loosen 2 screws from in side of meter panel.
Loosen the meter cord coupler.
Remove the meter panel.
Installation
Install in reverse order of removal procedures.
Each side 1 screws
Meter coupler
