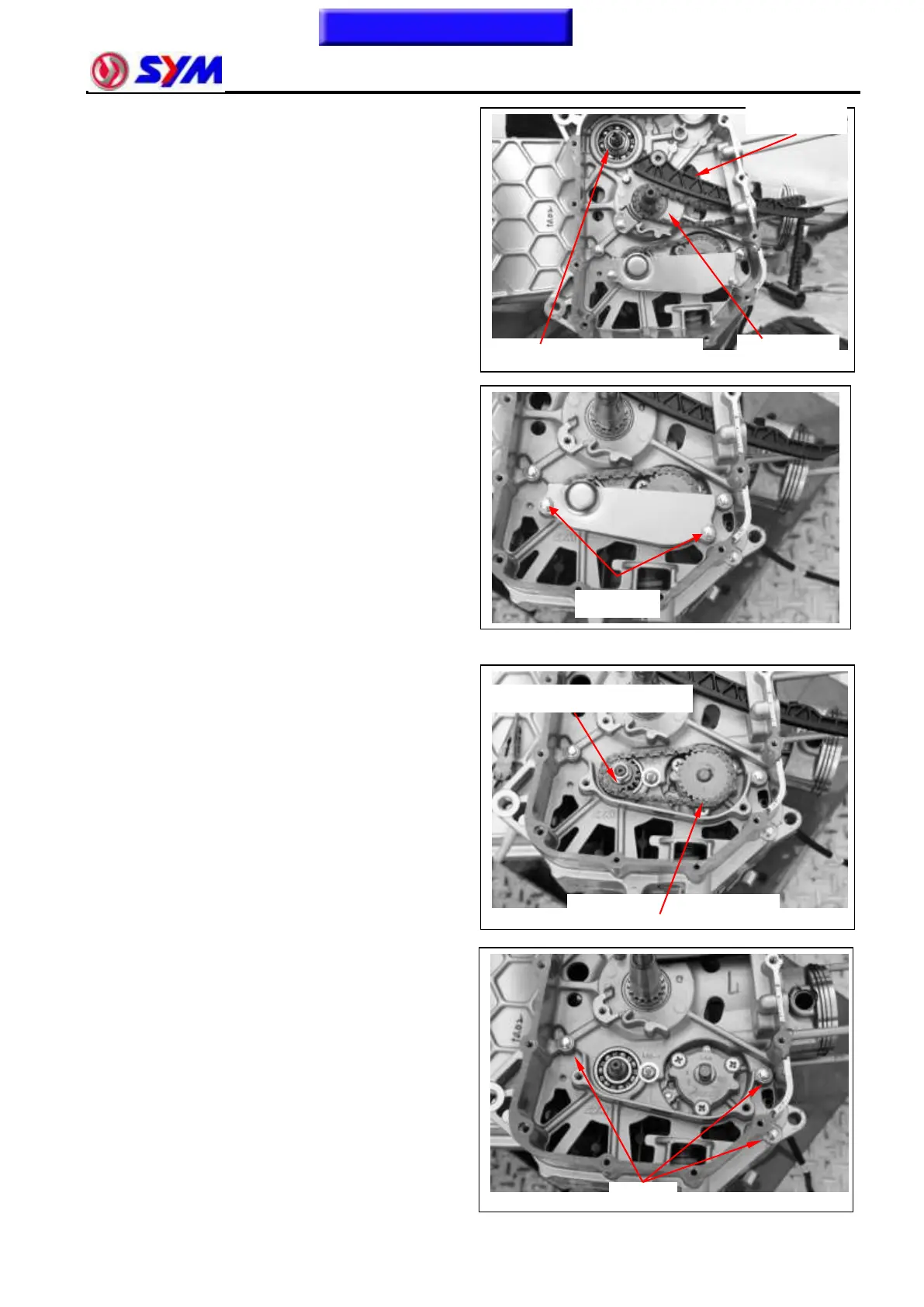

11. Crankshaft / Crankcase
11-3
Crankcase Disassembly
Remove the cam chain.
Loosen the bolt and remove the tensioner.
Remove the water pump shaft locknut.
Remove the oil separator (bolt x 2).
Remove the oil pump drive sprocket, driven
sprocket and drive chain.
Remove the right crankcase bolts (bolt x 3).
Oil pump driven sprocket
Bolt x 3
Cam chain
Tensioner
To this chapter contents
boltsX2
Oil pump drive sprocket
Water pump shaft locknut
