9. Final Drive Mechanism
9-4
Final Drive Mechanism

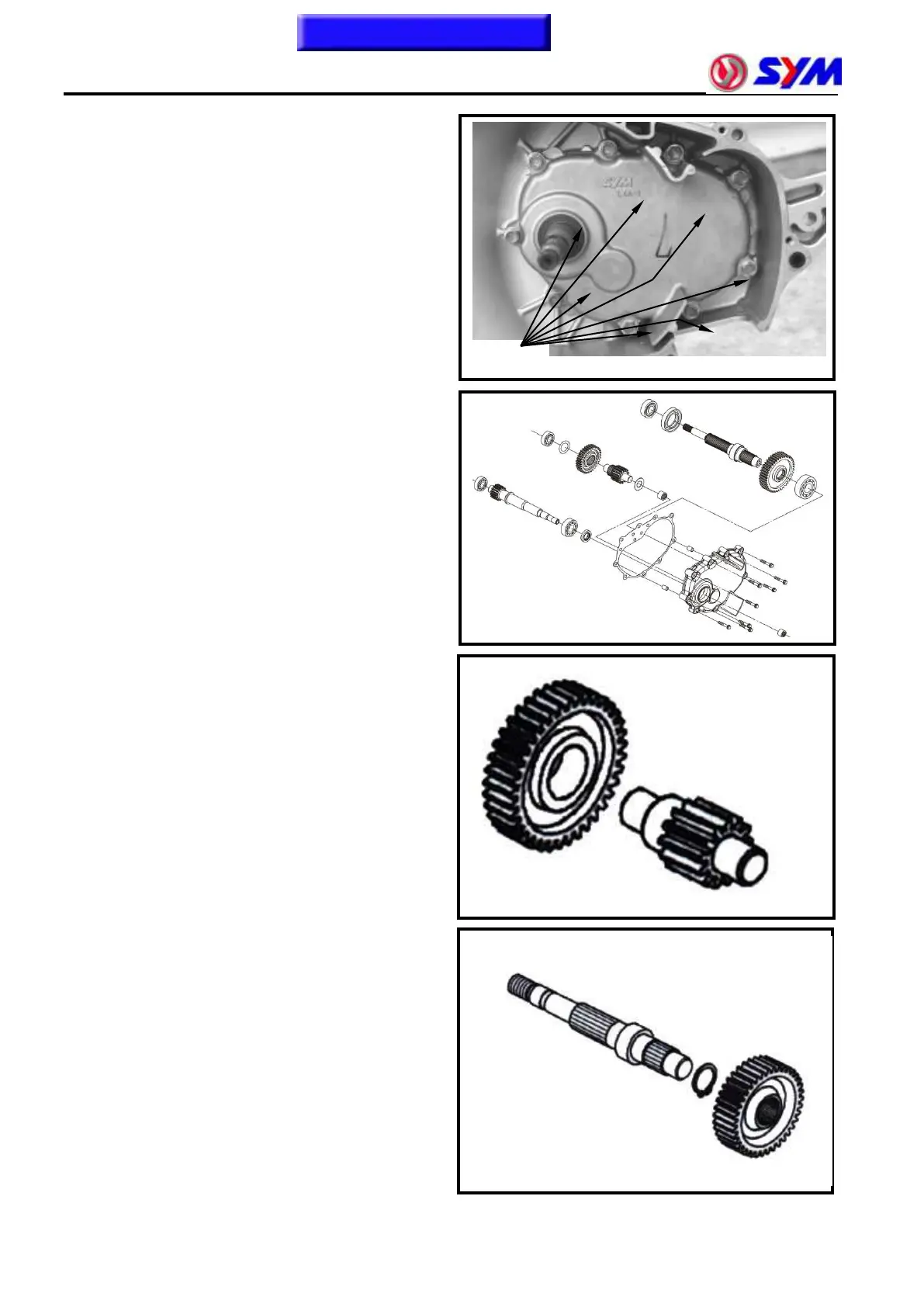

Disassembly
Remove driven pulley.
Drain gear oil out from gear box.
Remove gear box cover bolts and then remove
the cover.
Remove gasket and dowel pin.
Remove drive shaft.
Remove final driving gear and shaft.
Remove countershaft and gear.
Final Drive Mechanism Inspection
Check if the countershaft is wear or damage.
Check if the final shaft and gear are burn, wear
or damage.
7 bolts
