16. Rear Wheel / Rear Fork / Rear Cushion
16-4

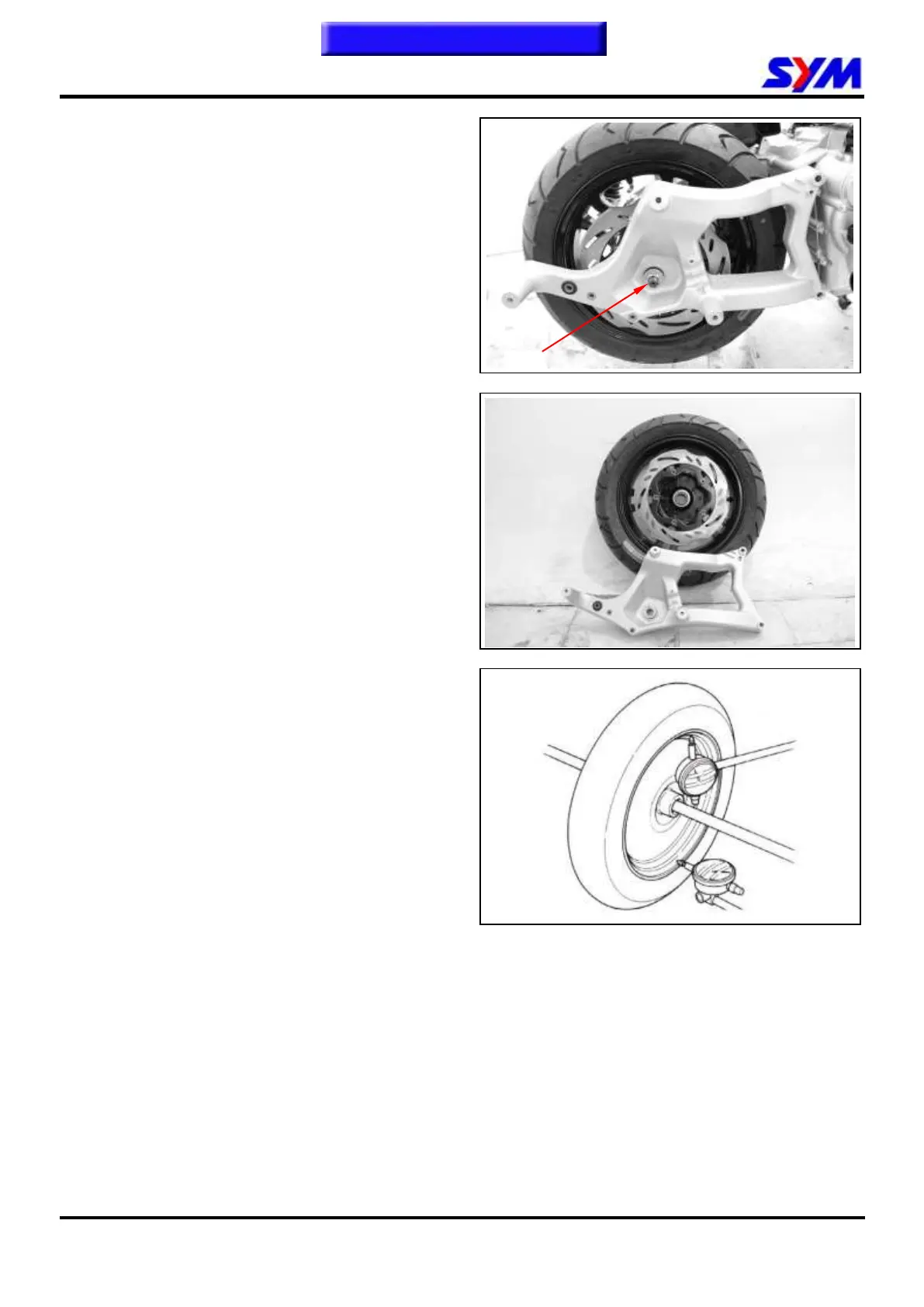

Remove rear wheel axle nut.
Remove rear fork and both side collars.
Remove the rear wheel.
Inspection rear wheel rim
Place the wheel rim on a rotational support.
Rotate it by hand and measure the run-out with a
dial indicator.
Run-out limit: 2.0 mm
Installation
Install in reverse order of removal procedures.
Torque Value:
Rear wheel axle nut 11.0~13.0kgf-m
Rear cushion under bolt 2.4~3.0kgf-m
Rear fork mounting bolt 4.0~5.0kgf-m
Brake clipper mounting bolts 2.9~3.5kgf-m
1 nut
