11. Crankshaft / Crankcase
11-1
Mechanism Diagram ...................... 11-1
Precautions in Operation .............. 11-2
Crankshaft bearing replacement .. 11-5
Crankshaft bearing installation .... 11-5
Troubleshooting ............................. 11-2
Crankcase Disassembly ................ 11-3
Crankcase Assembly ...................... 11-6

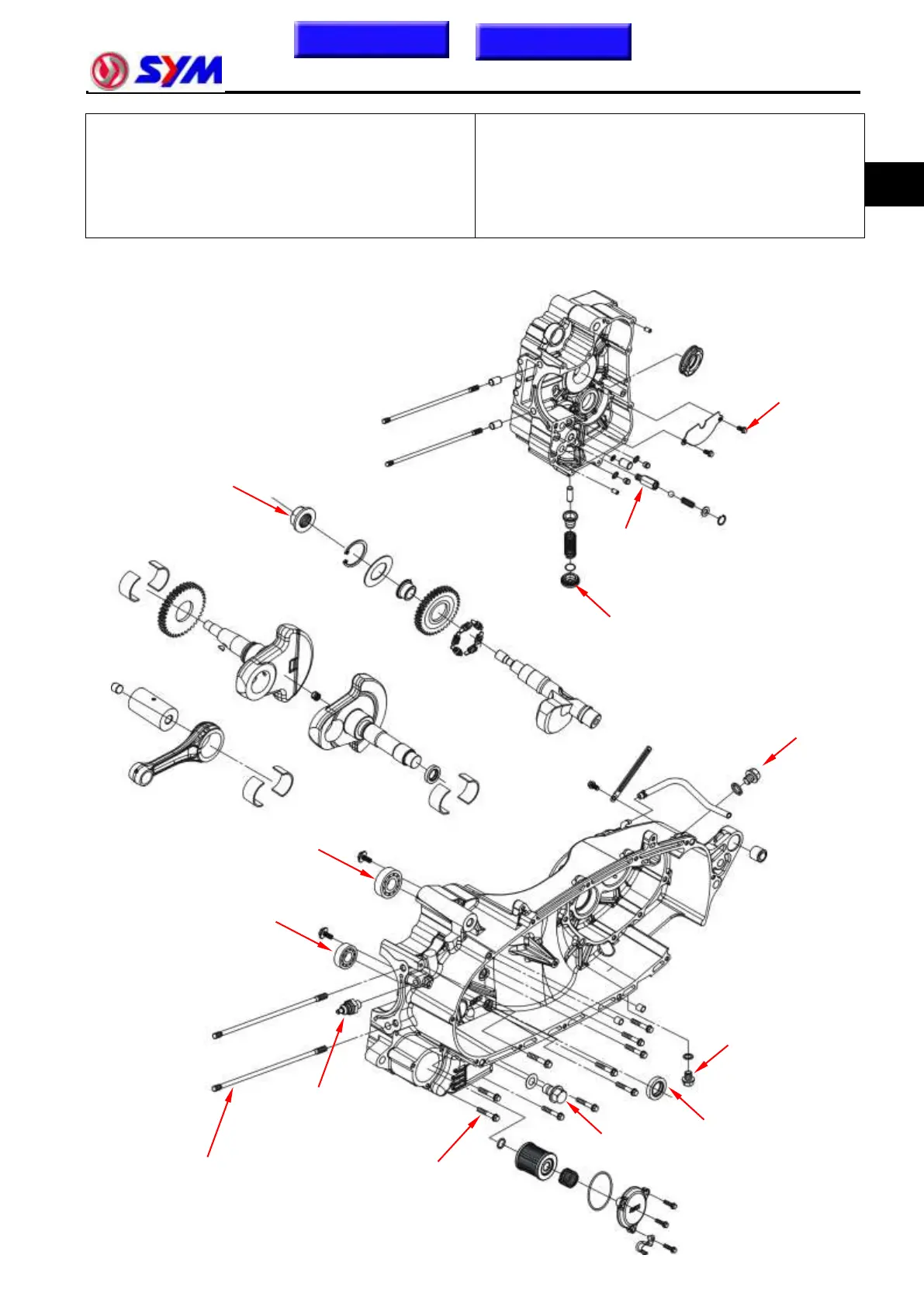

Mechanism Diagram – LX40A
3.5~4.5 kgf-m
1.0~1.4 kgf-m
0.7~1.1 kgf-m
11
Homepage
Contents
1.0~1.4 kgf-m
1.0~1.4 kgf-m
1.1~1.5 kgf-m
Radial ball bearing 6301
Radial ball bearing CSB304
Oil seal 35*55*7.5
1.0~1.4 kgf-m
1.0~2.0 kgf-m
2.0~2.4 kgf-m
6.0~7.0 kgf-m
0.7~1.1 kgf-m
