Sym MaxSym 600i ABS Service Manual

14. Brake System
14-1
Mechanism Diagram ························ 14-1
Precautions in Operation ·················· 14-2
Troubleshooting ······························ 14-3
Disk Brake System Inspection ·········· 14-4
Adding Brake Fluid ·························· 14-5
Brake Fluid Replacement / Air-bleed ·· 14-6
Front Brake Caliper ························· 14-7
Rear Brake Caliper ·························· 14-8
Brake Disk ······································ 14-9
Master Cylinder ······························· 14-9

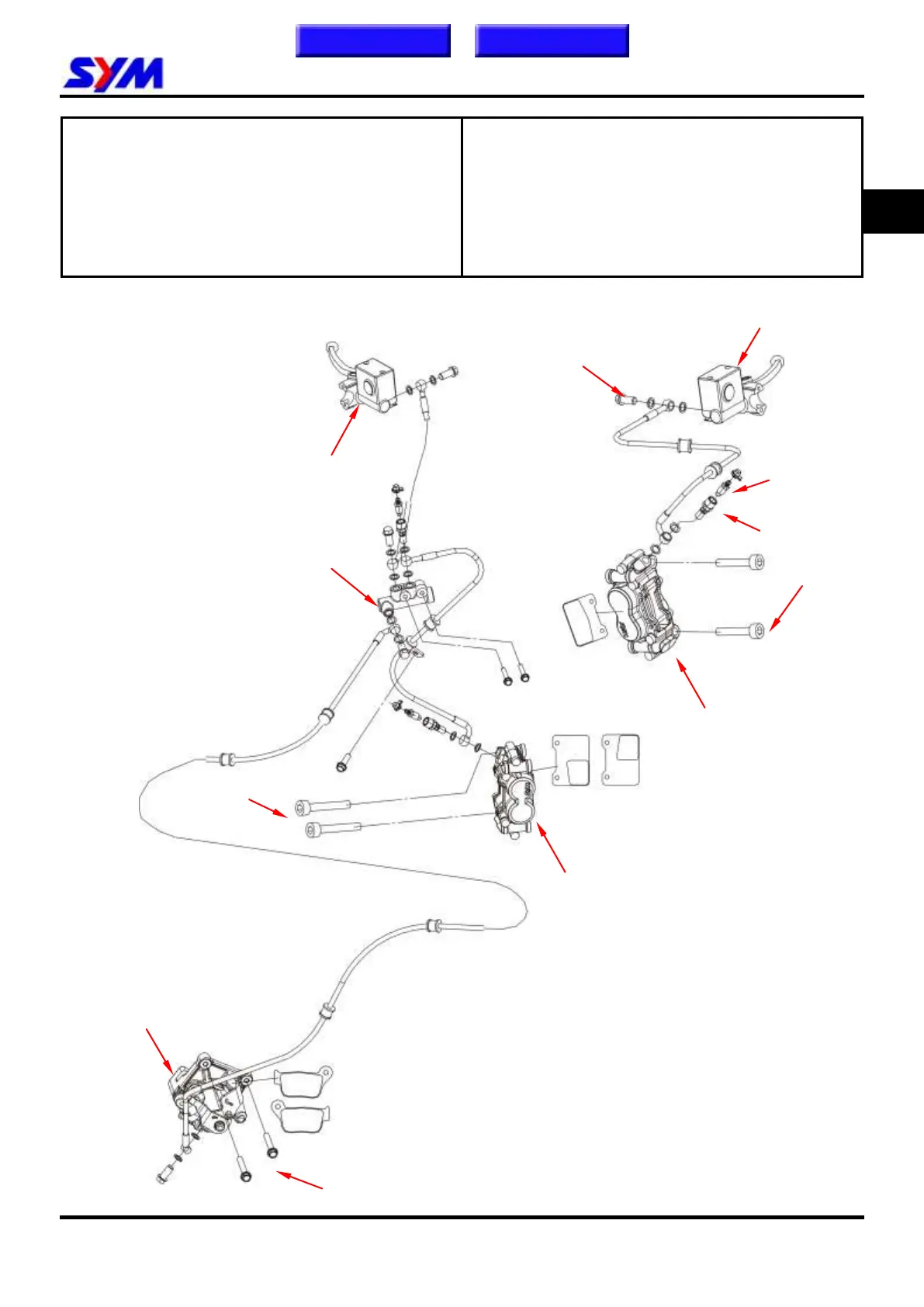

Mechanism Diagram
Front brake Master cylinder
2.4~3.0 kgf-m
Delay valve
Right front brake caliper
Rear brake Master cylinder
Rear brake caliper
Home page
Contents
14
Left front brake caliper
3.5~4.5 kgf-m
3.5~4.5 kgf-m
3.0~4.0 kgf-m
0.8~1.0 kgf-m
3.0~4.0 kgf-m
