15-1
Mechanism Diagram ························ 15-1
Precautions in Operation ·················· 15-2
Troubleshooting ······························ 15-2
Steering Handle ······························· 15-3
Front Wheel ···································· 15-5
Front Cushion ································· 15-8
Steering Stem ································· 15-9

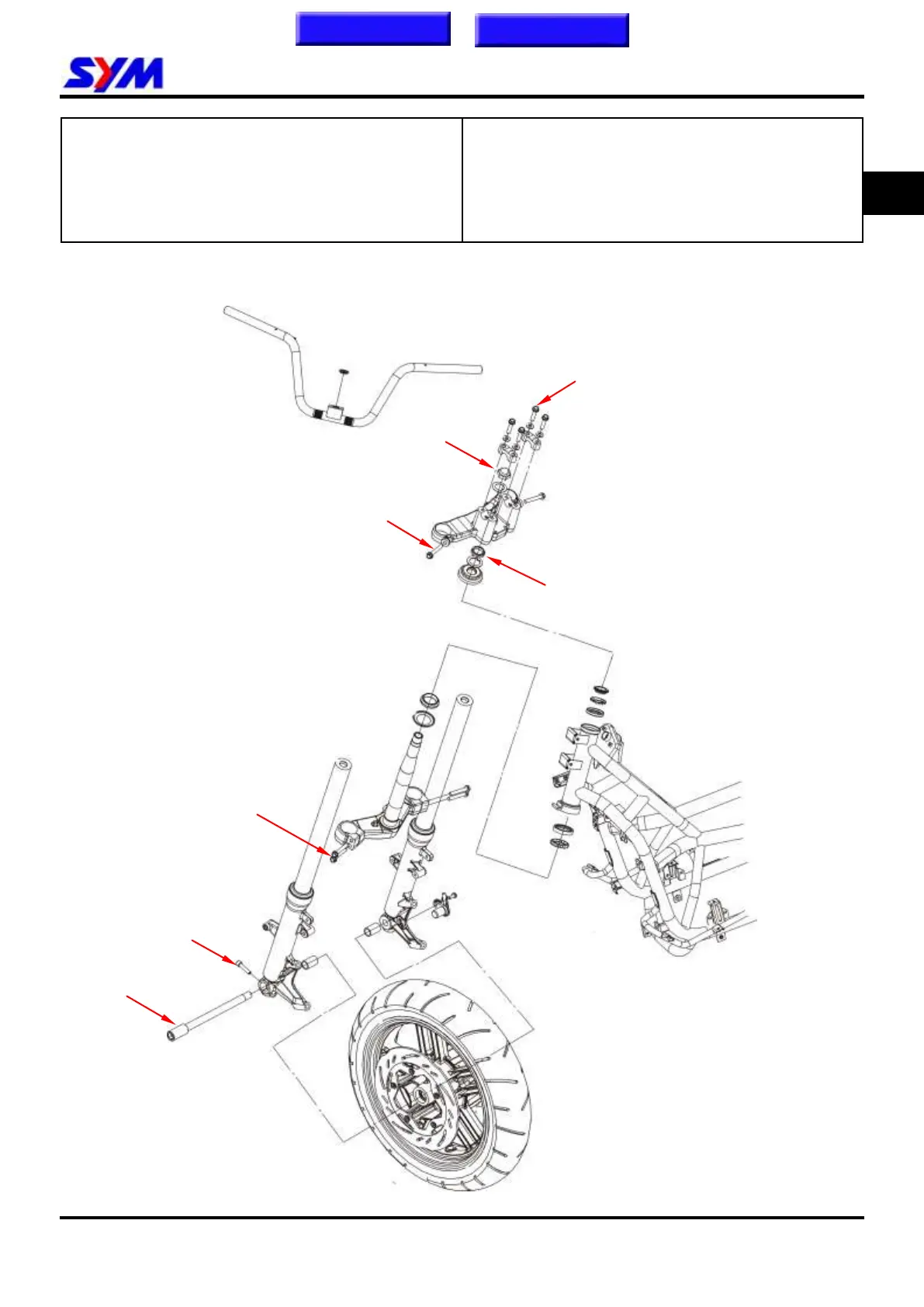

Mechanism Diagram
2.4~3.0kgf-m
5.0~7.0kgf-m
2.9~3.5kgf-m
15
2.4~3.0kgf-m
6.0~8.0kgf-m
2.4~3.0kgf-m
6.0~8.0kgf-m
