15-4

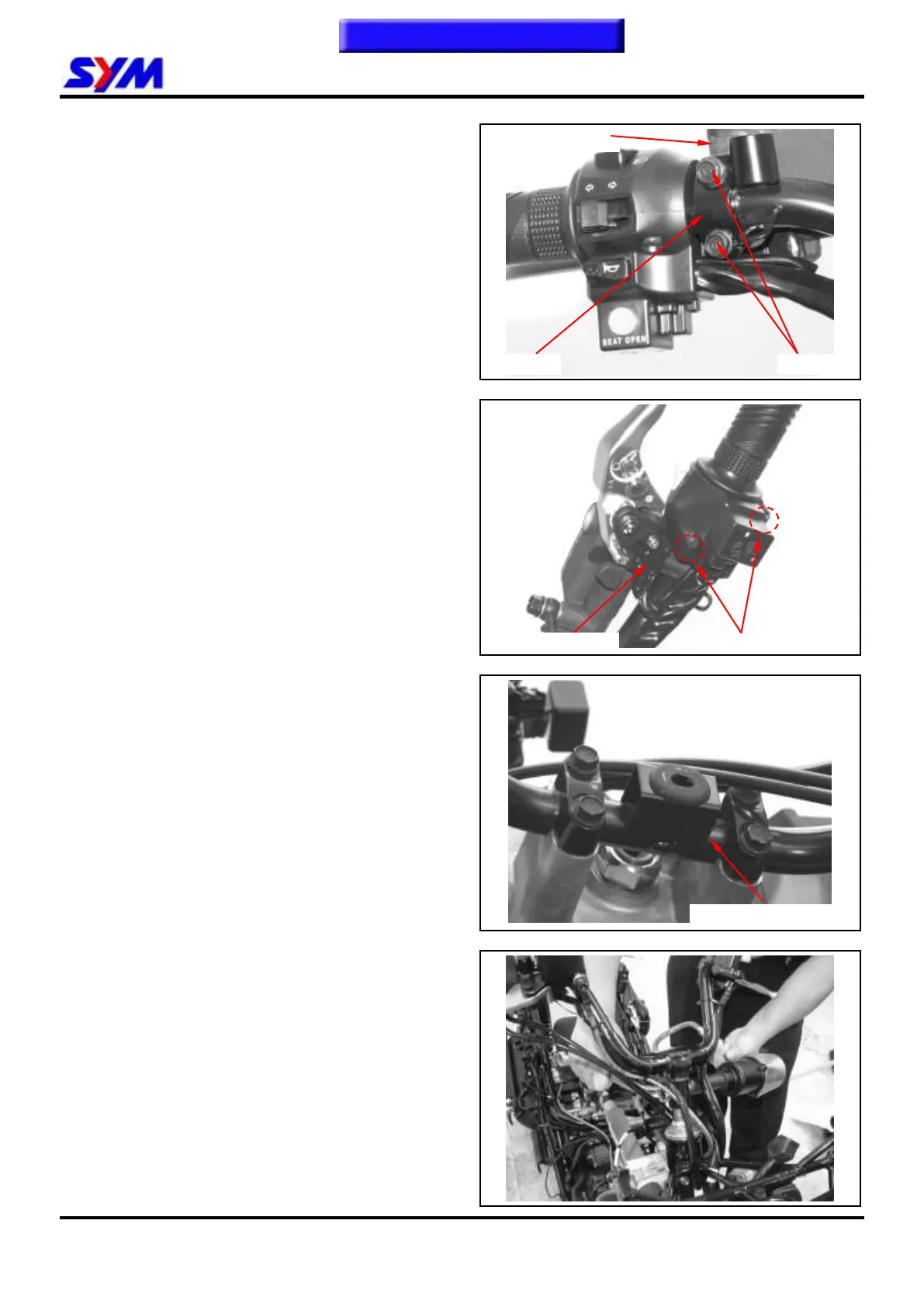

Loosen 2 bolts from the master cylinder of the rear
brake.
Remove holder and master cylinder.
Loosen left handle switch connecter.
Loosen 2 screws from left side handle switch
holder.
Remove the right handle switch.
Loosen handle mounting nut.
Remove handle mounting bolt, and then remove
the handle.
Installation
Install handle and align with bolt hole.
Install bolt and nut and then tighten it.
Torque value: 4.0~5.0kgf-m
Apply grease to throttle cable and the sliding
surface of handle.
Align the lock pin with the hole on the handle.
After the installation completes, carry on the
following inspection and adjustment:
Throttle grip operation.
All electric appliances, the meter function
