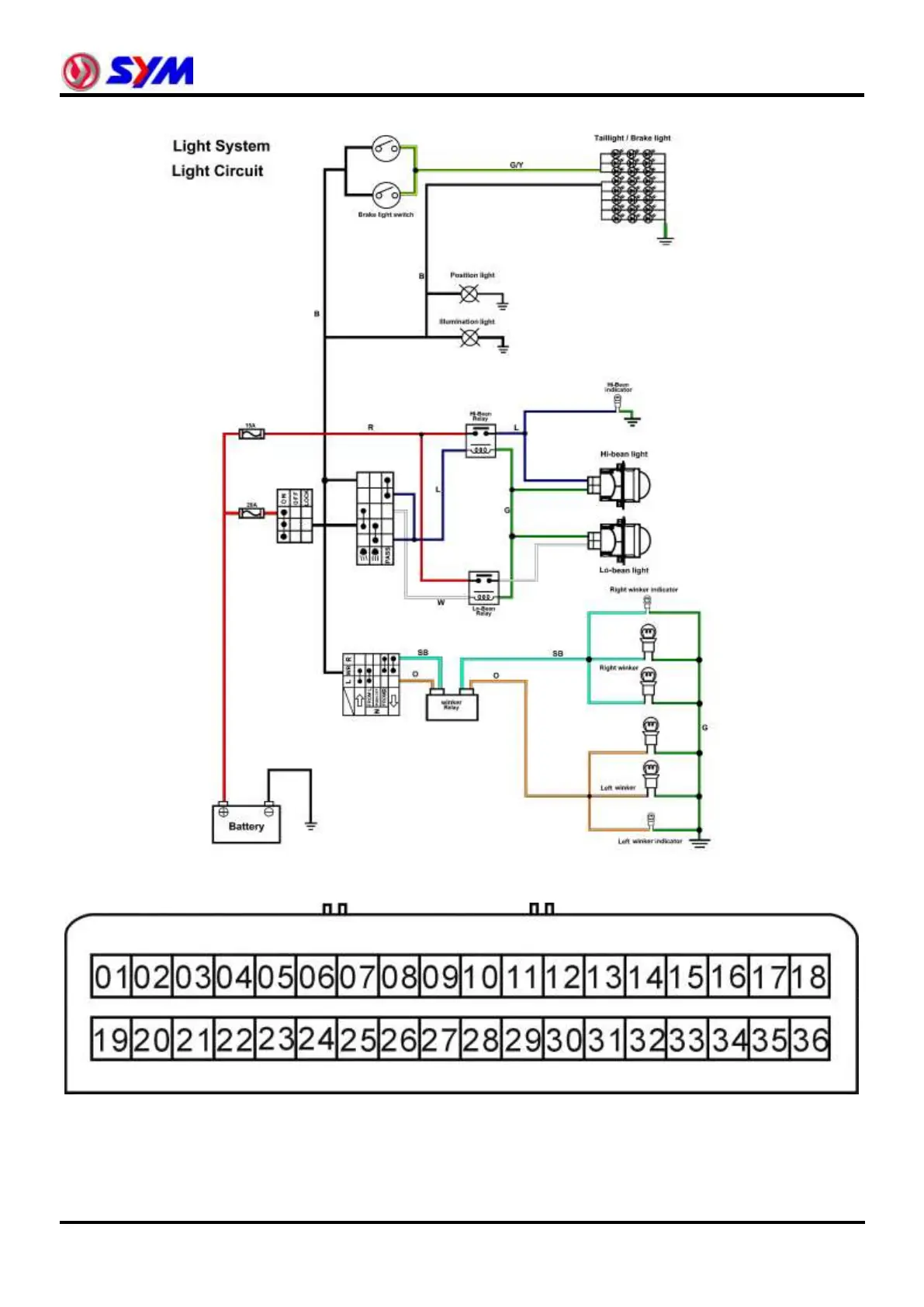

17. Electrical System
17-9
ECU. coupler (ECU. side)
01 pin(R/Y): Drive components Power.
03 pin(L/O): Crankshaft position sensor positive
09 pin(G): Crankshaft position sensor negative
18 pin(Y/G)：Ignition coil
