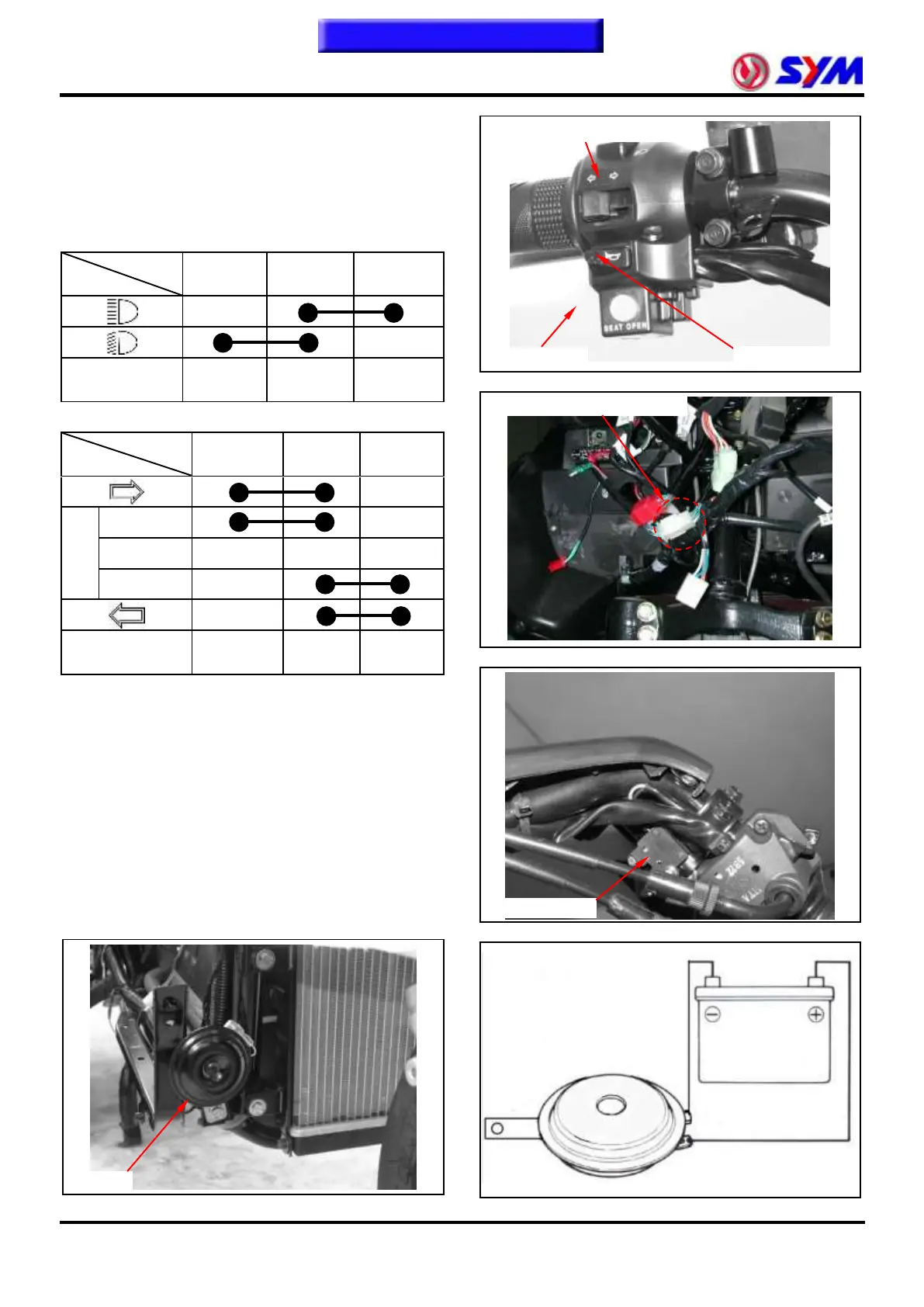

Sym MaxSym 600i ABS Service Manual

17. Electrical System
17-18
Left handle switch
Remove the handle cover and front cover.
Disconnect the coupler of left handle switch.
Check the continuity between two points as
indicated in the table below
High and low beam switch
Pin
Position
LO
HL
HI
Wire color
White
Blue /
White
Blue
Winker switch
Pin
Position
R
WR
L
N
FROM R
PUSH OFF
FROM L
Wire color
Sky blue
Gray
Orange
Brake Switch
While grasp the brake lever firmly, the terminals of
white/green and green/yellow of the brake should
have continuity.
Replace the switch if damaged.
Horn
Remove the front cover and front under spoiler.
Apply 12 V power source to two terminals of the
horn, the horn should work.
Replace the horn if necessary.
Left handle switch coupler
Brake switch
Horn
To this chapter contents
High and low beam switch
Winker switch
Horn switch
