4. Fuel Injection System
4-25

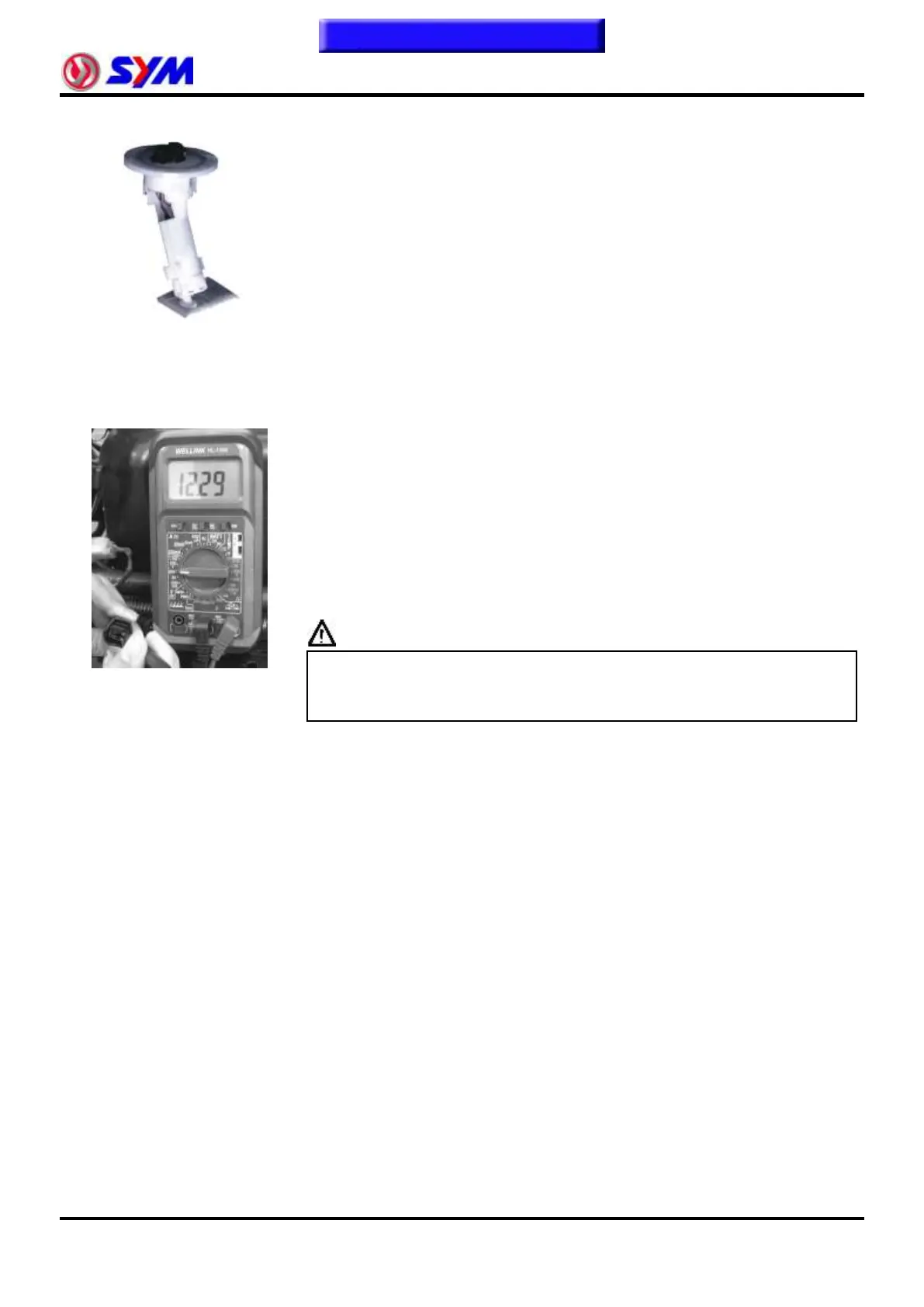

Fuel Pump
Confirmed working voltage
Functional Description:
Powered by DC 8~16V, and has four-pin socket on the pump.
The two terminals are connected to power source and ground
respective. The ECU is to control and manage the operation of fuel
pump through electrical power.
Its major component is a driving fan pump that equipped with a low
electrical consuming DC motor. Powered by 12V voltage and keep
fuel pressure inside the fuel pump in 294±6kpa (about 3 kg / cm
2
).
The fuel pump is located inside of the fuel tank, and installed a filter in
front of its inlet so that can prevent from foreign materials sucking into
the fuel pump to damage it and the fuel injector.
Testing Procedures 1:
Fuel pump working voltage confirmed:
● Fuel pump coupler to properly (using the probe tool), or can be
removed coupler working voltage measurements (direct
measurement).
● Open the main switch, but not to start engine.
● Use "voltage meter" DC stalls (DCV) to check fuel pump voltage.
● Confirmed working voltage:
Voltage meter negative access to the wire harness fuel pump coupler
2nd pin (Green).
Voltage meter positive access to the wire harness fuel pump coupler
first pin (Black / Purple).
Cautions
● Conducting fuel pump voltage measurement, if the main switch to
open three seconds after the engine did not started, the ECU will
automatically cut off the fuel pump power supply.
Detection judge 1:
1. Working voltage value: Above 10V
2. Resistance value: 1.5±0.5Ω
3. Fuel pressure: 294±6kPa (about 3kg/cm
2
)
To Next Page
