4. FUEL SYSTEM SYM
4-10

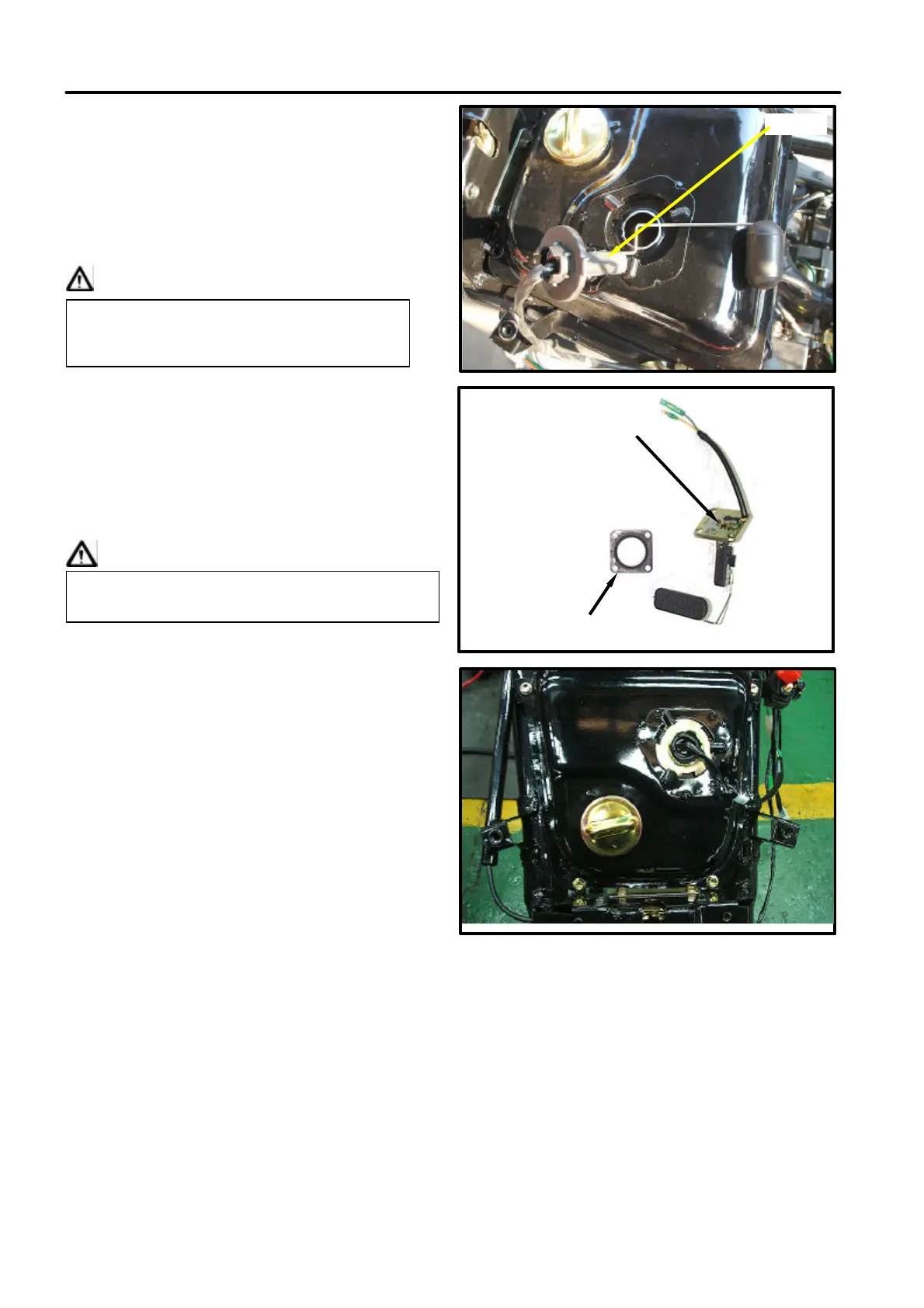

FUEL TANK
Fuel unit removal
Remove the seat.
Remove the luggage box assembly (2×2
nuts).
Disconnect fuel unit connector.
Remove fuel unit.
Cautions
Fuel unit inspection. (Refer to chapter 16 -
electrical equipment).
Fuel unit installation
Install the gauge in the reverse order of
removal.
Cautions
FUEL TANK REMOVAL
Remove the seat and the luggage box.
Remove the body side cover.
Remove the L/R floor panel cover.
Remove the fuel tank cover.
Remove the floor panel.
Disconnect the fuel unit connector.
Remove the fuel pipe, fuel filter.
Remove the fuel tank bracket.
Remove the fuel tank.
Fuel Tank Installation
Install the fuel tank in the reverse order of
removal.
Do not bend the float arm of fuel
l Do not fill out too much gasoline to
fuel tank.
Do not forget to install the gasket of fuel unit
or damage it.
Fuel unit
