SYM 8. V-BELT DRIVING SYSTEM/KICK STARTER ARM
8-11

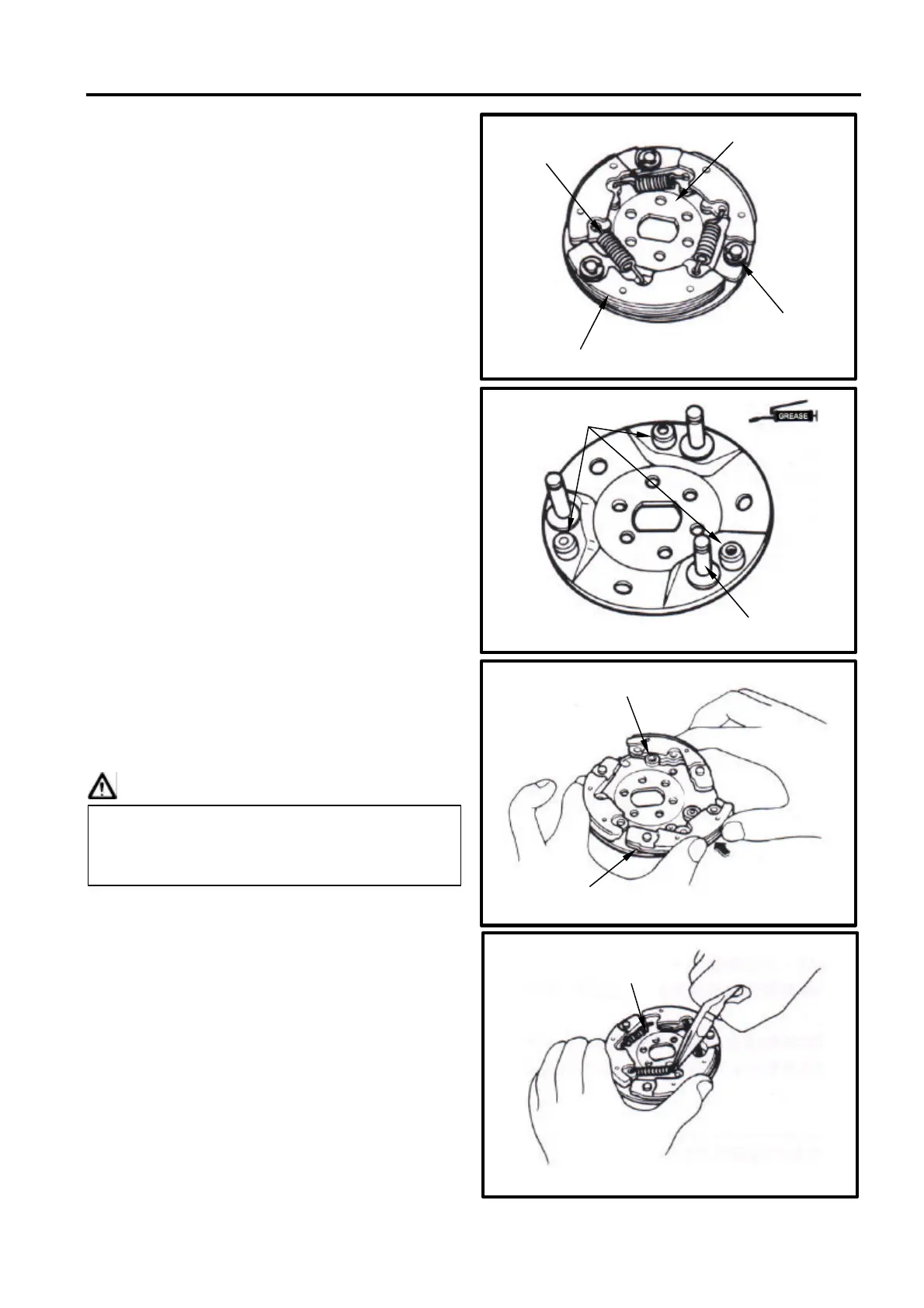

Clutch Block Replacement
Remove snap and washer, and the remove
clutch block and spring from driving plate.
Check if spring is damage or insufficient
elasticity.
Check if shock absorption rubber is damage
or deformation. Replace it if necessary.
Apply with grease onto setting pins.
Apply with grease onto setting pins. But,
the clutch block should not be greased. If so,
replace it.
Install new clutch block onto setting pin and
then push to specified location.
Caution
Install the spring snap into groove with pliers.
Ÿ Grease or lubricant will damage the
clutch block and effect the block’s
connection capacity.
Shock absorption rubber
Clutch block
Spring
Spring
Driving plate
Snap ring
Clutch block
Shock absorption rubber
Setting pin
To Next Page
