7. CYLINDER/PISTON SYM
7-6

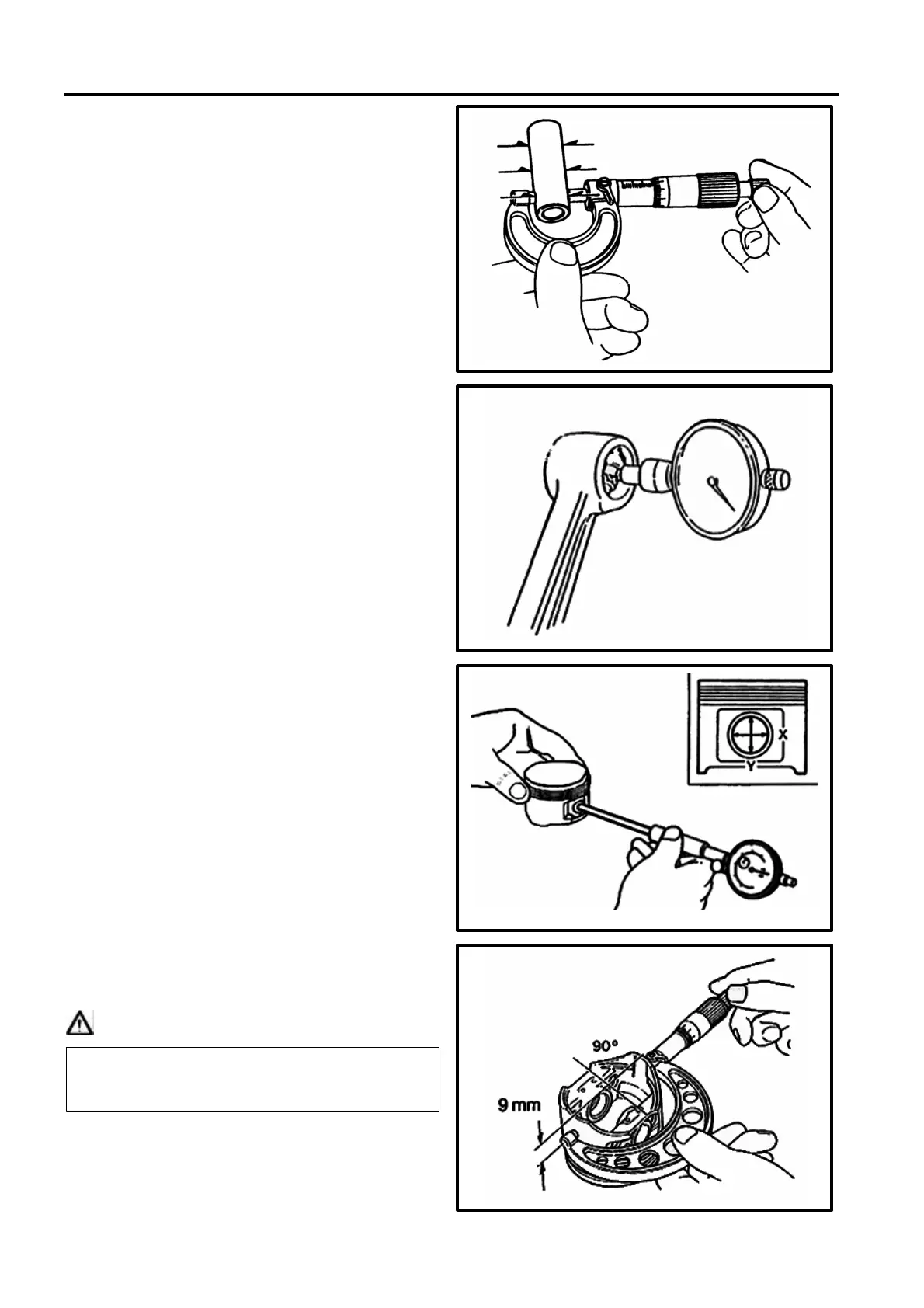

Measure the outer diameter of piston pin.
Service Limit: 14.96mm
Measure the inner diameter of connecting
rod small end.
Service Limit: 15.06mm
Measure the inner diameter of piston pin
hole.
Service Limit: 15.04mm
Calculate clearance between piston pin and
its hole.
Service Limit: 0.02mm
Measure piston outer diameter.
Caution
Service limit: 52.310mm
Compare measured value with service limit
to calculate the clearance between piston
and cylinder.
The measurement position is 10 mm
distance from piston bottom side, and 90°
to piston pin.
