SYM 9. FINAL DRIVING MECHANISM
9-5
Press out the driving shaft from the
crankcase.
Remove oil seal from the gear box.
Remove the driving shaft bearing from the
gear box cover with the inner type bearing
puller.
Caution
Specified tool:
Inner type bearing puller.
If the driving shaft is pulled out with its
bearing, then remove the bearing with bearing
puller and bearing protector.
Tool:
Multi-functional bearing puller
Bearing protector
Install a new driving shaft bearing onto
crankcase.
Then, install the driving shaft.
Specified tool:
Press the bearing in with C type hydraulic
presser or bearing installer.
Install a new final driving shaft bearing onto
gear box cover.
Specified tool:
Press the bearing in with C type hydraulic
presser or the bearing installer.
Apply with some grease onto the lip section
of oil seal and then install the seal.

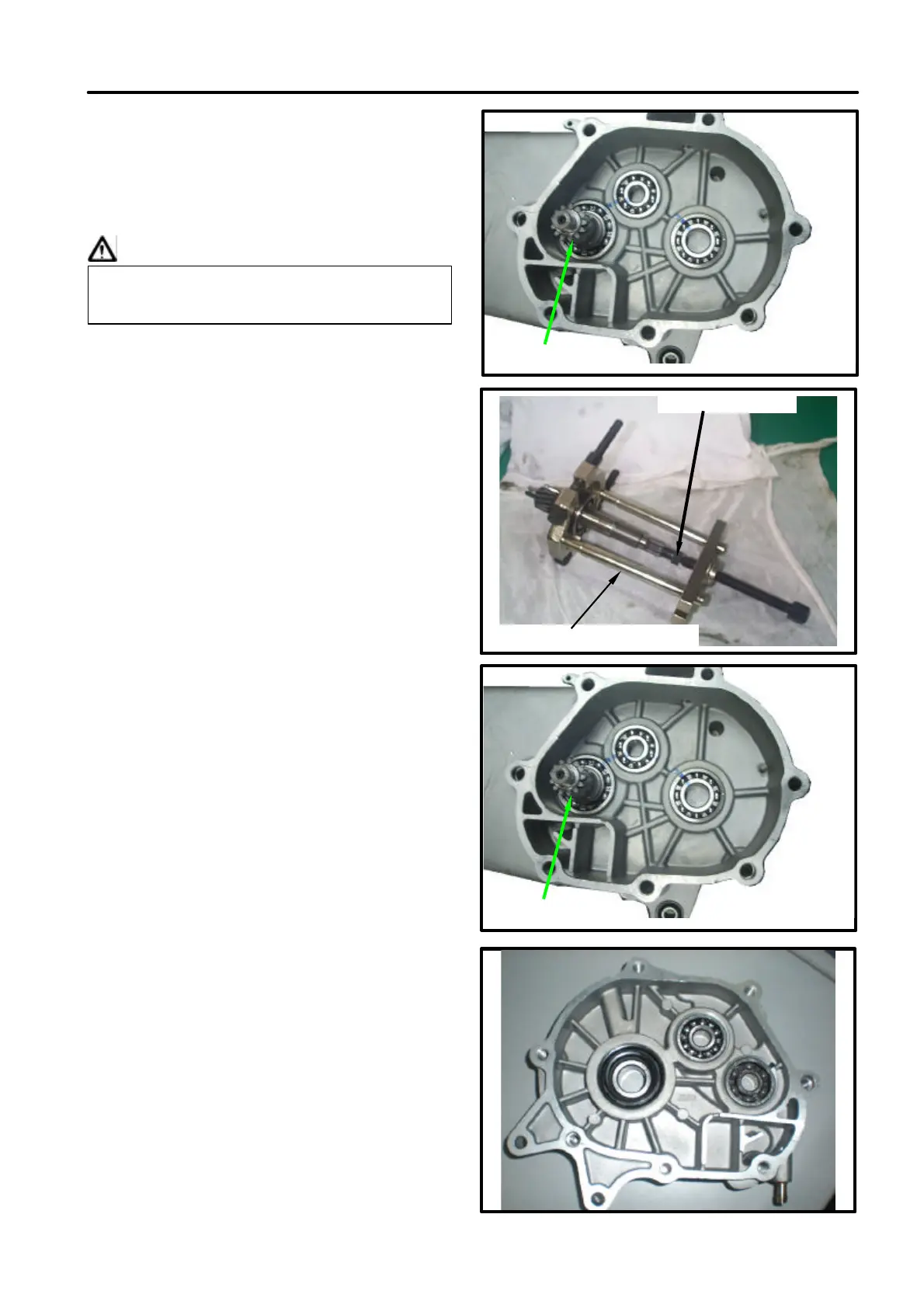

Using the bearing protector as pressing out
the driving shaft from the left crankcase.
Multi-functional bearing puller
To Next Page
