8. Cylinder / Piston
8-3

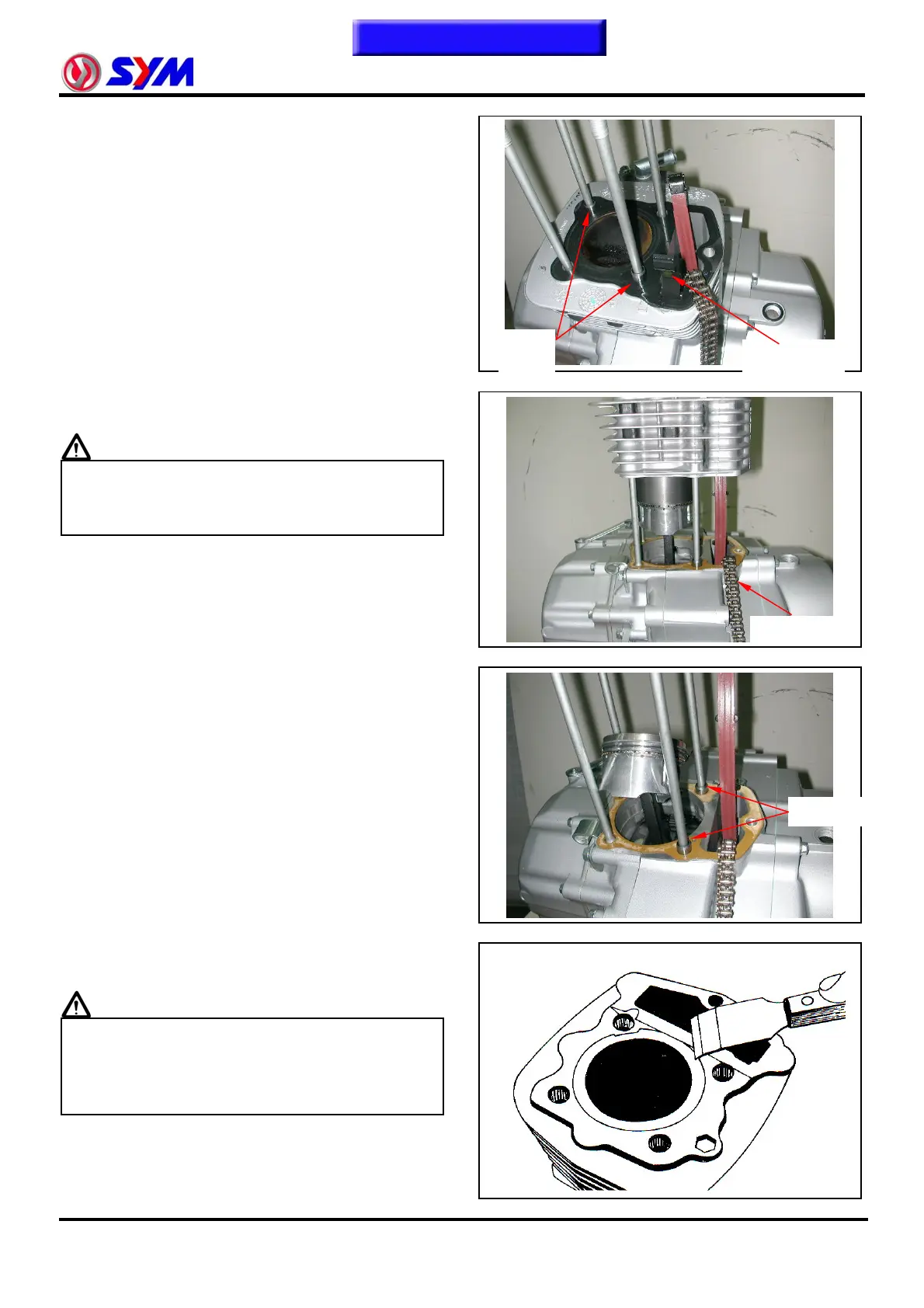

Cylinder Removal / Inspection
Remove the cylinder head (refer to chapter 7).
Remove the cylinder head gasket and the
dowel pins
Remove the cam chain guide
Remove the cylinder.
Caution
z Prevent the camshaft chain from falling
into the crankcase when removing the
cylinder.
Remove the cylinder gasket and dowel pins.
Clean all the gasket material from the contact
surface.
Note
z Use solvent to wet the gasket material in
order to remove it more easily.
z Do not damage the contact surface
during operation.
Cam chain
guide
Dowel
pins
Dowel pins
Cam chain
To Next Page
