2. Maintenance Information
Clutch Adjustment
10~20 mm

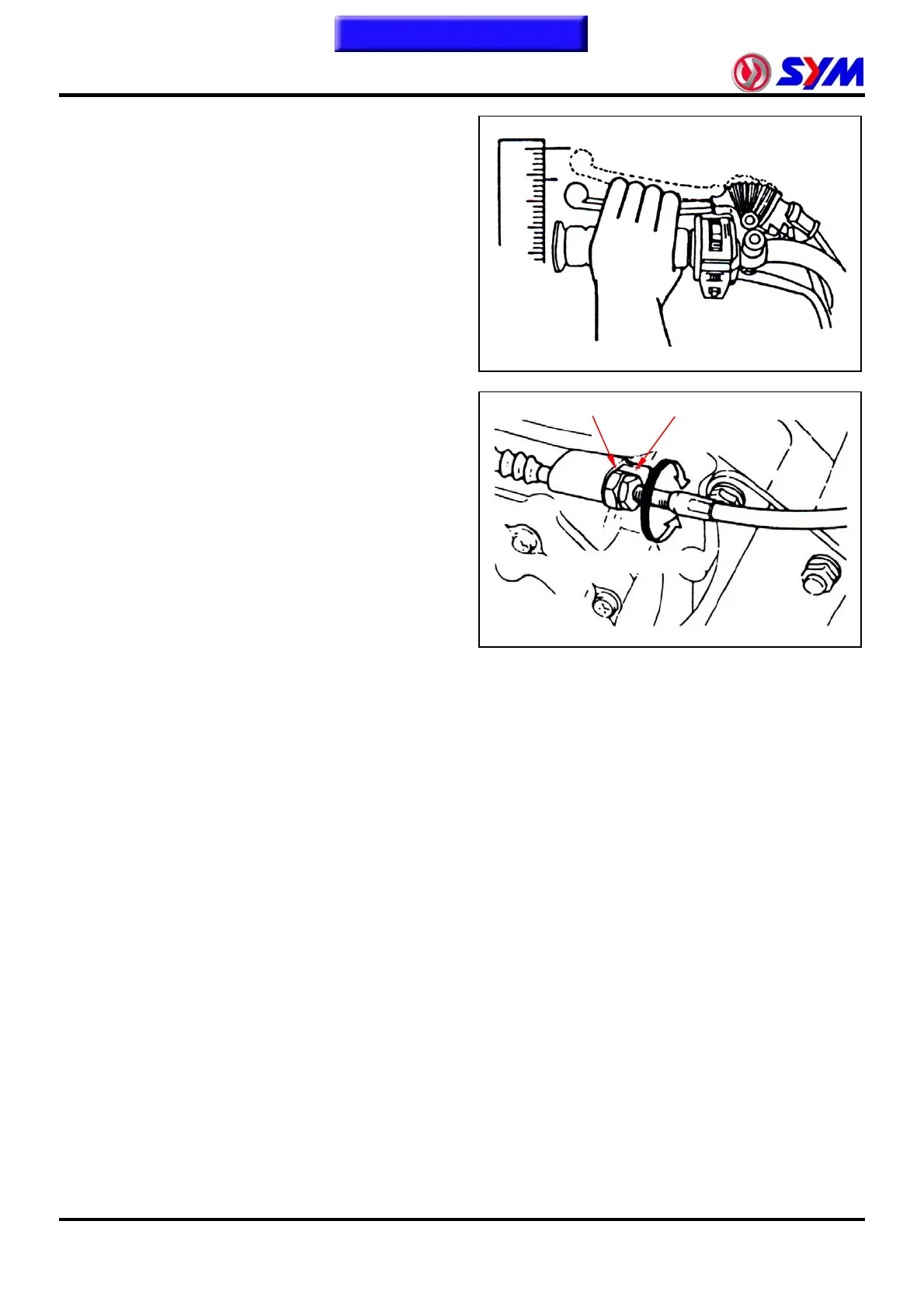

Clutch lever free play inspection
Slightly pull the clutch lever to check the free
play before clutch disengagement.
Free play：10~20 mm
2-12
Clutch lever free play adjustment
Before adjusting the clutch lever free play,
please loosen the lock nut first. Then turn
the adjusting screw to achieve the
recommended clutch free play.
If you want to decrease the free play of
clutch lever, turn it clockwise. If you want to
increase the free play, turn it
counterclockwise.
Lock nut
Adjusting nut
After adjustment, tighten the adjusting nut
with lock nut.
Lubricate the clutch cable.
