Sym PA12C - Float Chamber; Jet Set; Throttle Valve

To this chapter contents
3. Fuel System

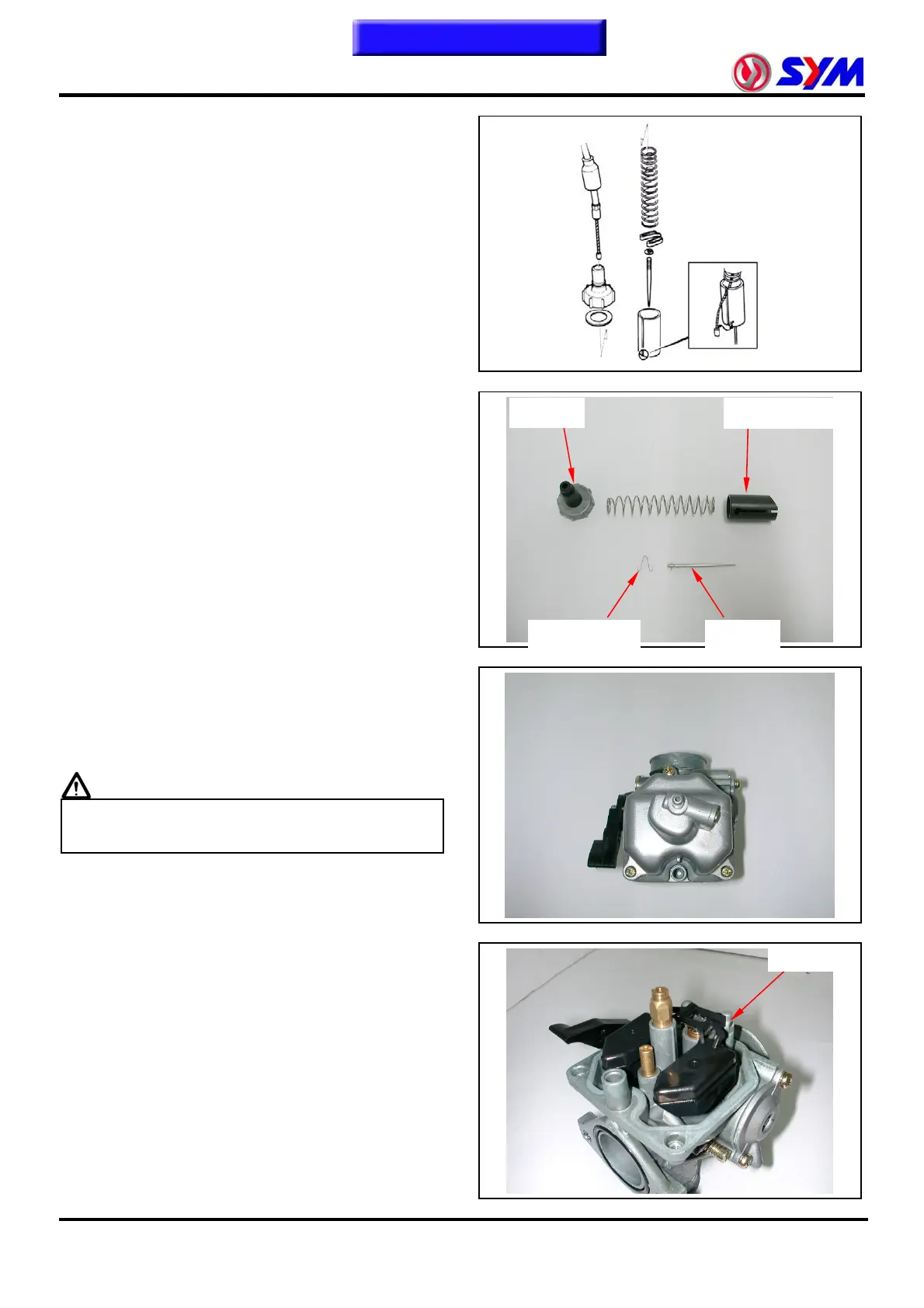

Throttle Valve
3-6
Disassembly
Compress the throttle spring and disassemble
the throttle cable, and the spring.
Disassemble the needle seat and the needle
from the throttle valve.
Check the throttle valve and the needle to see
if they are damaged or not.
Installation
Install as reversed order of removal
procedures.
Float Chamber/ Jet Set
Remove 2 mounting screws and remove float
chamber cover.
Warning
z Please fill the gasoline in float chamber
into the fuel tank.
Throttle valve
Top cover
Remove the fuel level plate, float pin, float and
float valve.
Needle Seat Needle
Float pin
