13. Electrical System
13-22
Switch / Horn

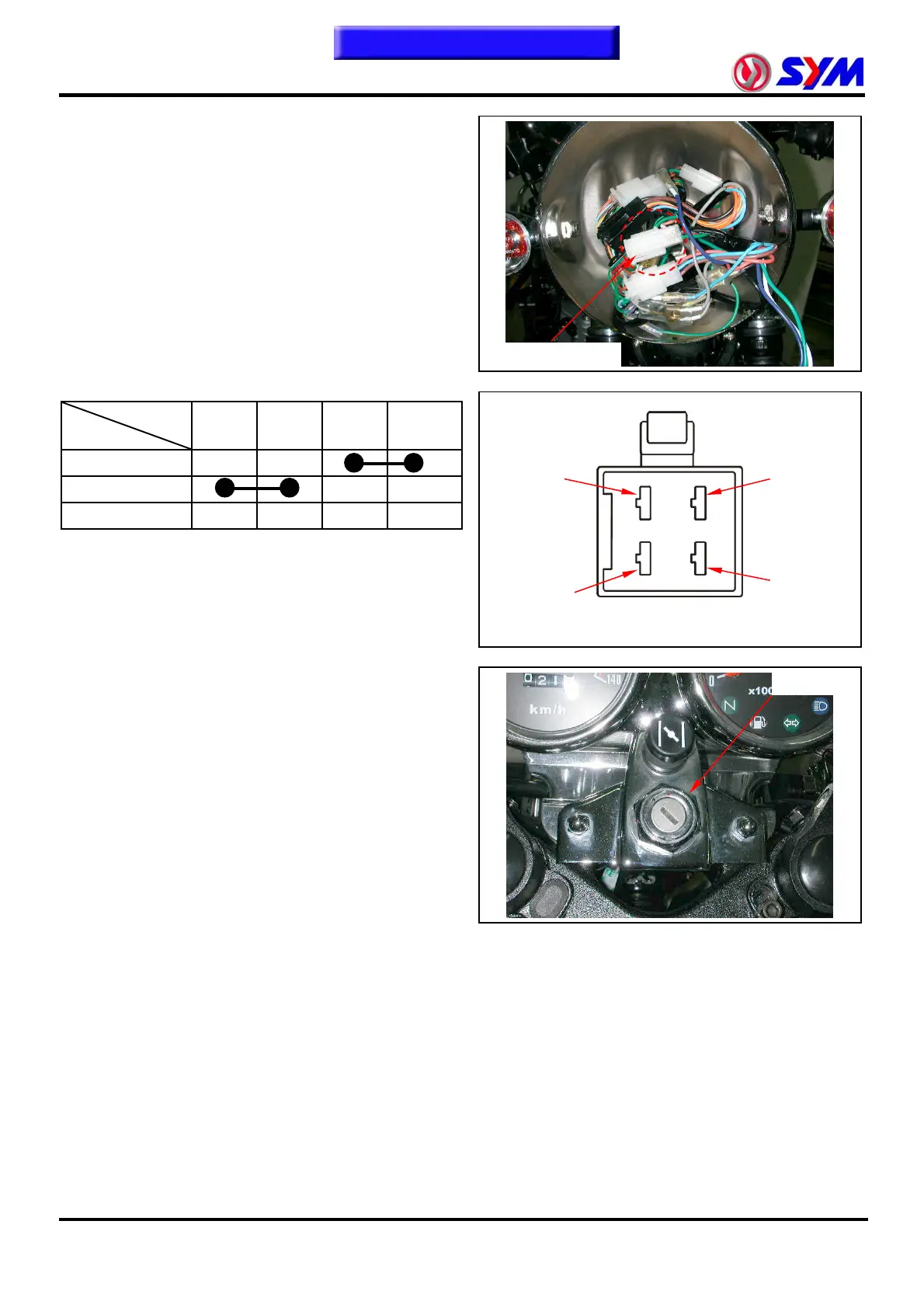

Main switch
Inspection
Remove the headlight assembly.
Disconnect the main switch coupler.
Check the following coupler circuit.
BAT1 BAT2 IG E
OFF
ON
Color Red Black B / W Green
Replacement
Remove the headlight assembly.
Disconnect the main switch wire coupler.
Remove the main switch locknut.
Remove the main switch.
Installation
Install in the reverse order of removal.
Main switch coupler
Locknut×1
R
B / W
G
B
