13. Electrical System
13-23

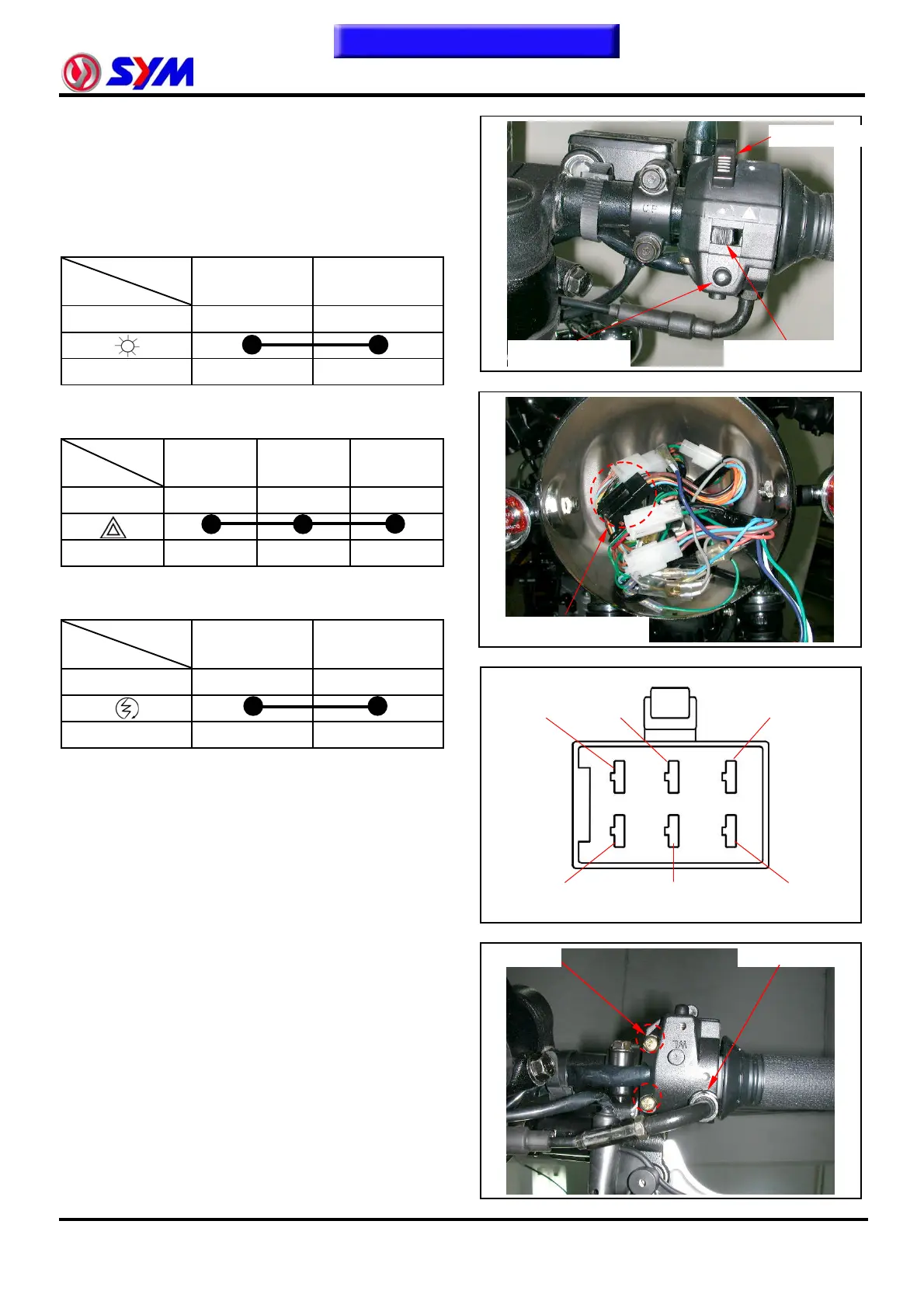

Handlebar switch
Remove the headlight.
Remove the right handlebar switch coupler.
Check the following switch circuit.
Light switch
BAT2 TL
●
Color Black Brown
Hazard switch
W L R
●
Color Gray Orange Sky blue
Starting switch
BAT2 ST
FREE
Color Black Yellow / red
Removal
Loosen the throttle cable locknut and remove
the right handlebar screws.
Remove the throttle cable.
Remove the throttle grip and right handlebar
switch.
Installation
Install in the reverse order of removal.
Check if switch operation is normal after
installation.
Starting switch
Light switch
O
SB
BR
B
Y / R
GR
Screw×2
Hazard switch
Right handlebar switch
Cable locknut
