11. Steering / Front Wheel / Front Fork
Headlight

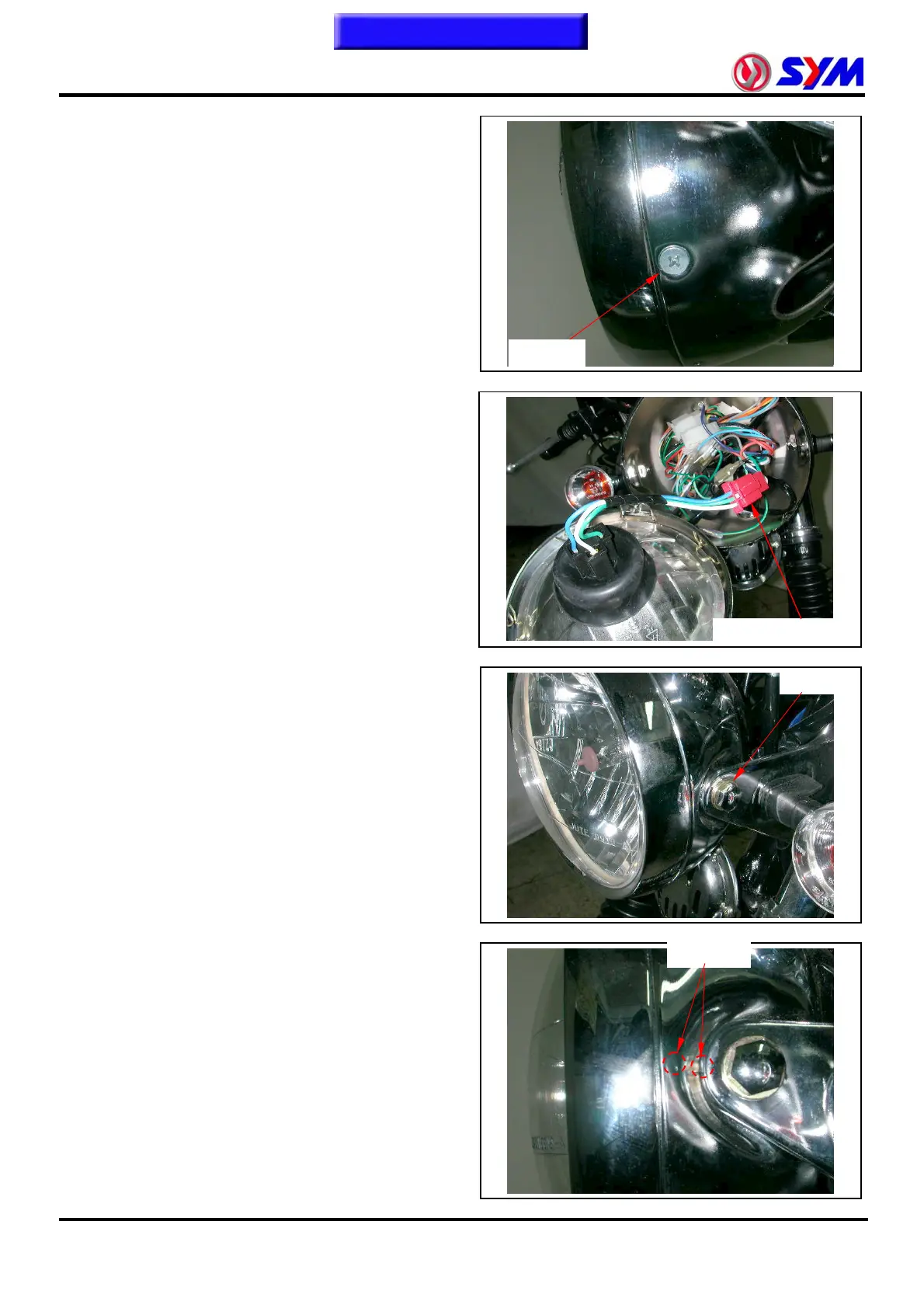

Removal
Remove the headlight lock screw.
Screw×1
11-4
Pull out the headlight assembly. Disconnect
the headlight wire coupler and remove the
headlight assembly.
Remove the wire couplers.
Remove the headlight case bolt.
Remove the headlight case.
Installation
Align the index marks and install the headlight
case.
Install the other parts in the reverse order of
removal.
Headlight coupler
Bolt 2
Index mark
