7. Cylinder Head / Valve
Mechanism Illustration ············· 7-1
Precautions in Operation ········· 7-2
Troubleshooting························ 7-3
Cylinder Head···························· 7-4
Camshaft···································· 7-6
Valve Rocker Arm ····················· 7-6
Valve··········································· 7-7
Valve Seat Inspection and Refacing
···················································· 7-11
Cylinder Head Assembly·········· 7-14
Cylinder Head Installation········ 7-15
Valve Clearance Adjustment···· 7-17
7

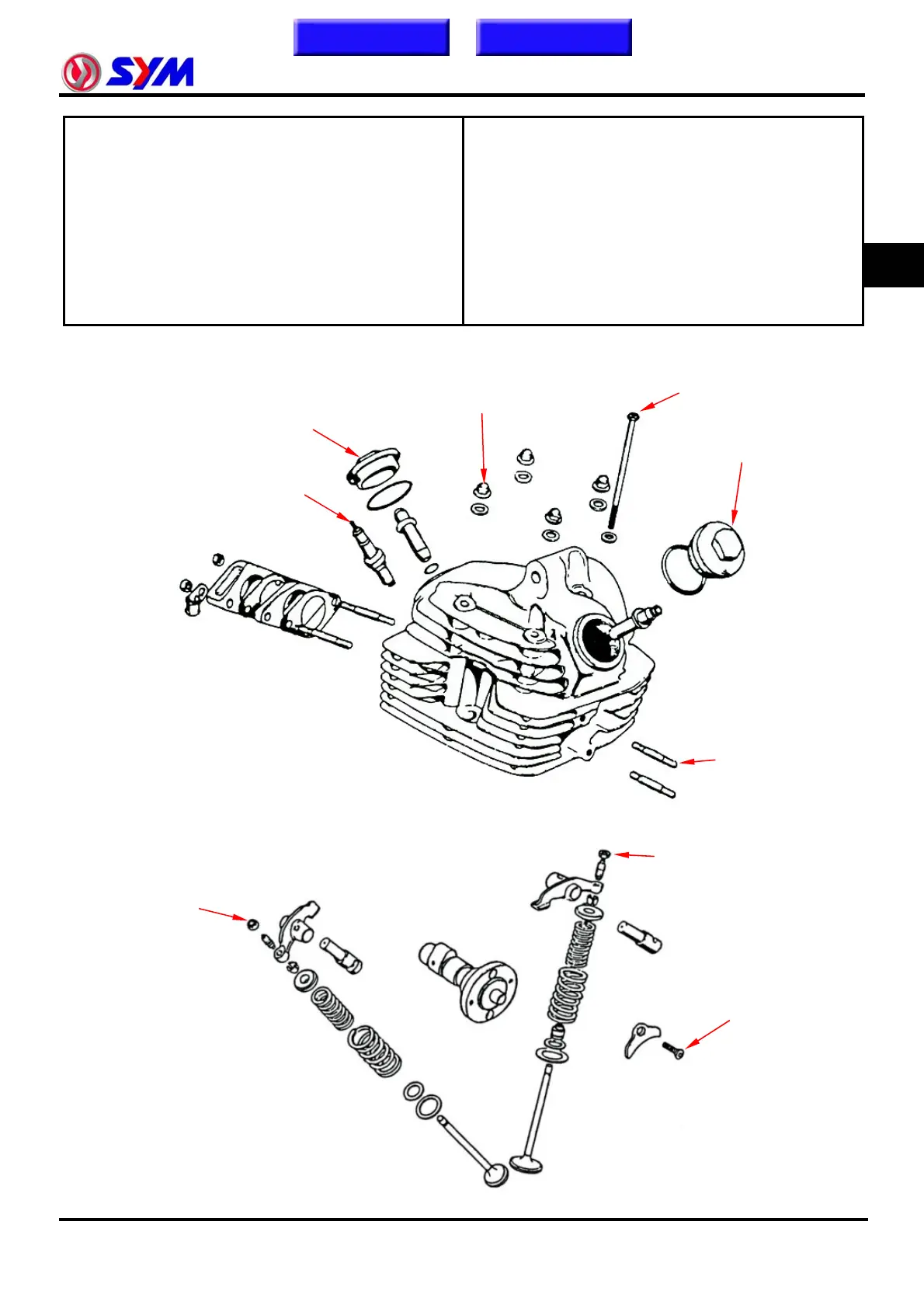

Mechanism Illustration
2.8~3.0kgf-m
0.8~1.2kgf-m
1.3~1.7kgf-m
1.3~1.7kgf-m
1.0~1.2kgf-m
0.7~1.0kgf-m
0.7~1.1kgf-m
0.7~1.1kgf-m
0.8~1.2kgf-m
7-1
