Sym PA12C User Manual

13. Electrical System
13-14
Starting System

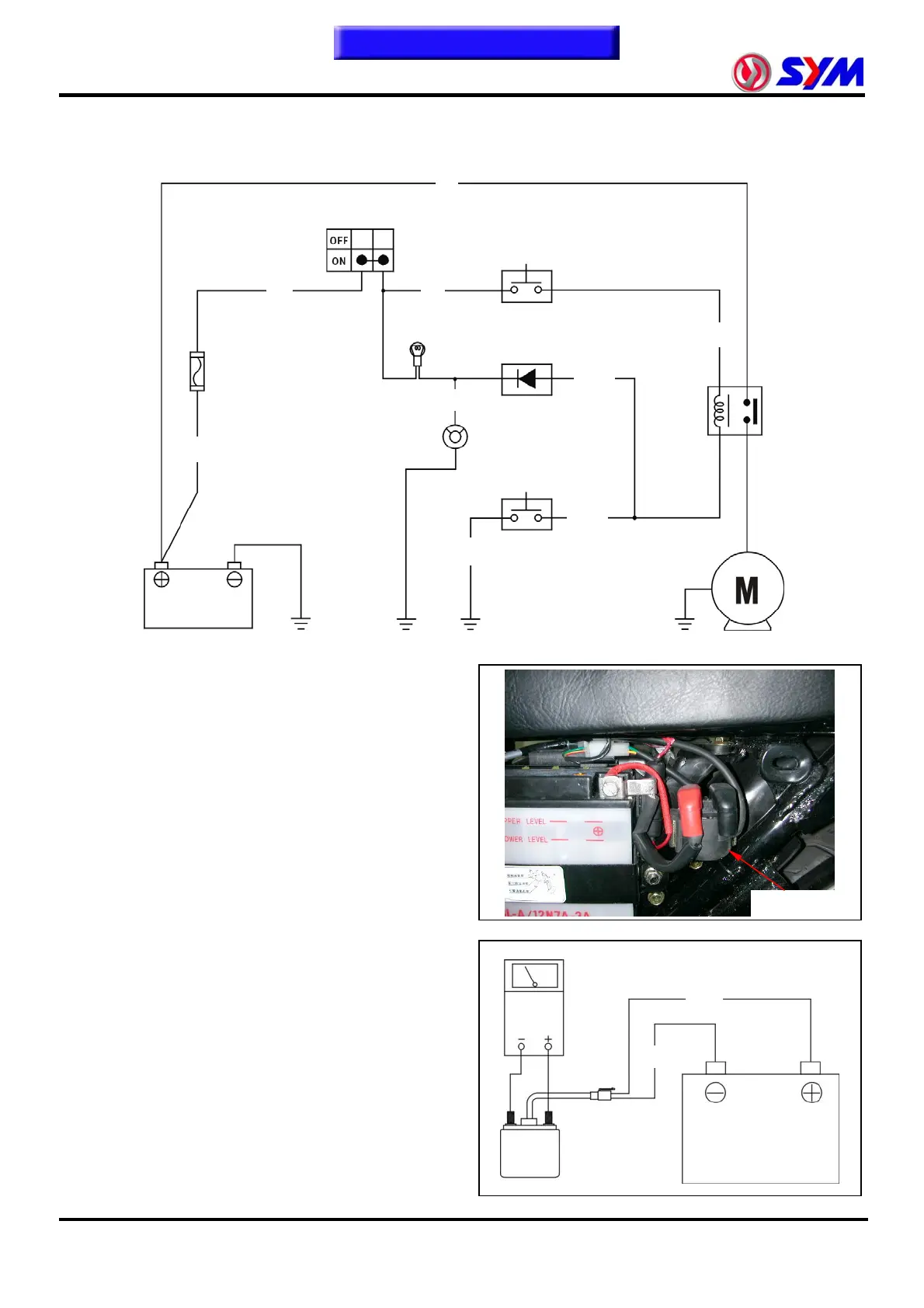

Starting circuit
Starter relay inspection
Turn the main switch.
Pull the brake lever and press the starter
switch.
If a sound of “Looh Looh” is heard, it indicates
the relay function normally.
Remove the left side cover.
Disconnect the negative terminal wire.
Disconnect the starter relay coupler.
Connect an ohmmeter to the starter relay
terminal.
Connect the yellow / red wire to the battery
positive terminal and the green / yellow wire to
the battery negative terminal.
Check the continuity of the starter relay
terminal.
If there is no continuity, replace the relay.
Fuse (15A)
Main switch
Clutch switch
Neutral switch
Starter
relay
Starter
motor
R
Y / R
G / 紅
Battery
Starter switch
B
Starter relay
R
G
Neutral lamp
矽控整流器
R
G / R
LG / R
Y / R
G / R
