8. Cylinder / Piston
To this chapter contents

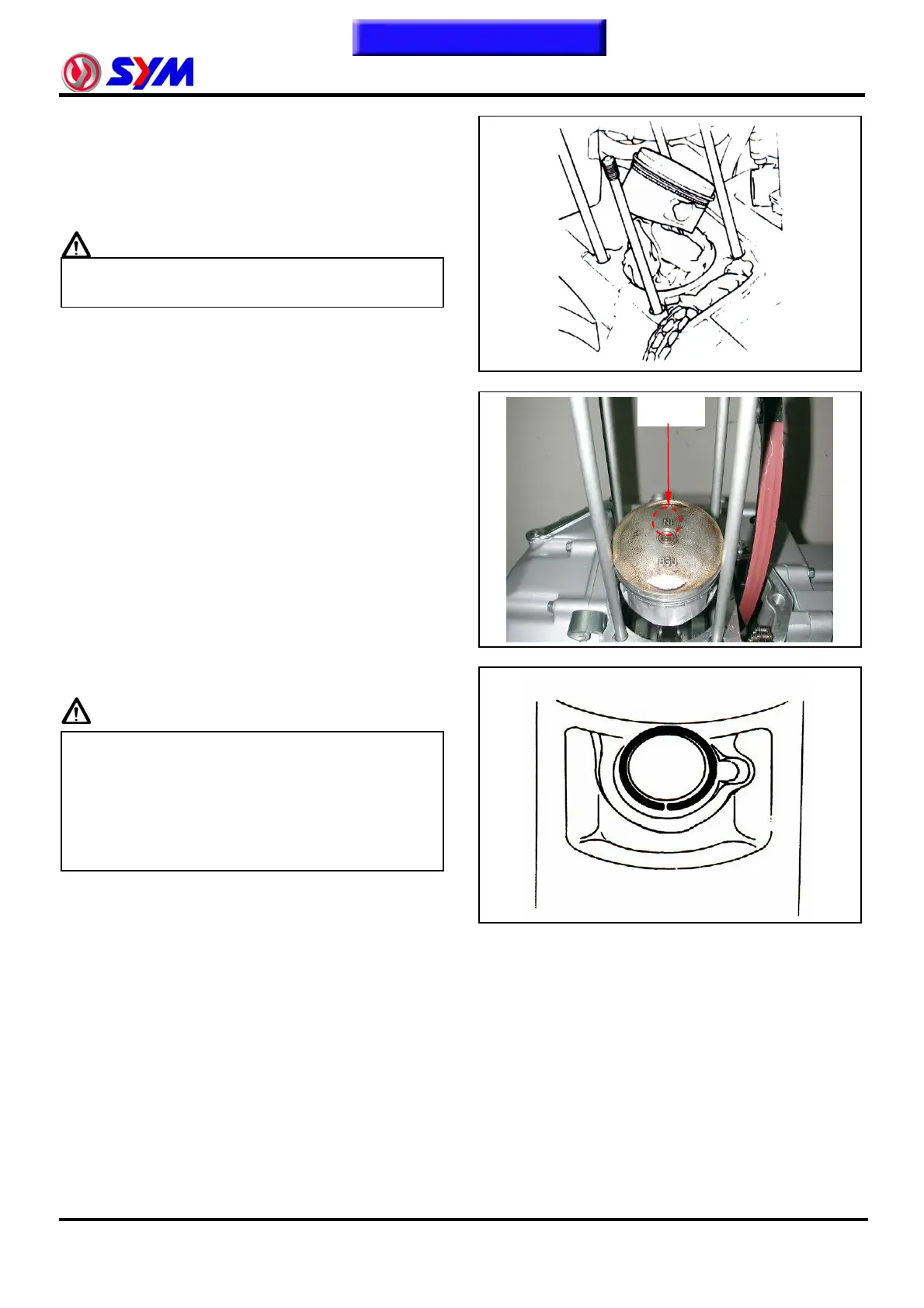

Piston Installation
8-9
Place a piece of clean rag under the piston.
Clean all the gasket material from the contact
surface.
Caution
z Use solvent to wet the gasket material in
order to remove it more easily.
Install piston and piston pin and make the IN
mark facing forward
Install the new piston pin snap ring
Note
z Do not make the piston pin snap ring
opening coincide with the slit of the piston
pin hole
z Place a clean cloth between the piston
and the crankcase to prevent the piston
pin snap ring falling into the crankcase
IN mark
