9. Crankshaf
t / Crankcase / T
ransmission / Kick St
arter

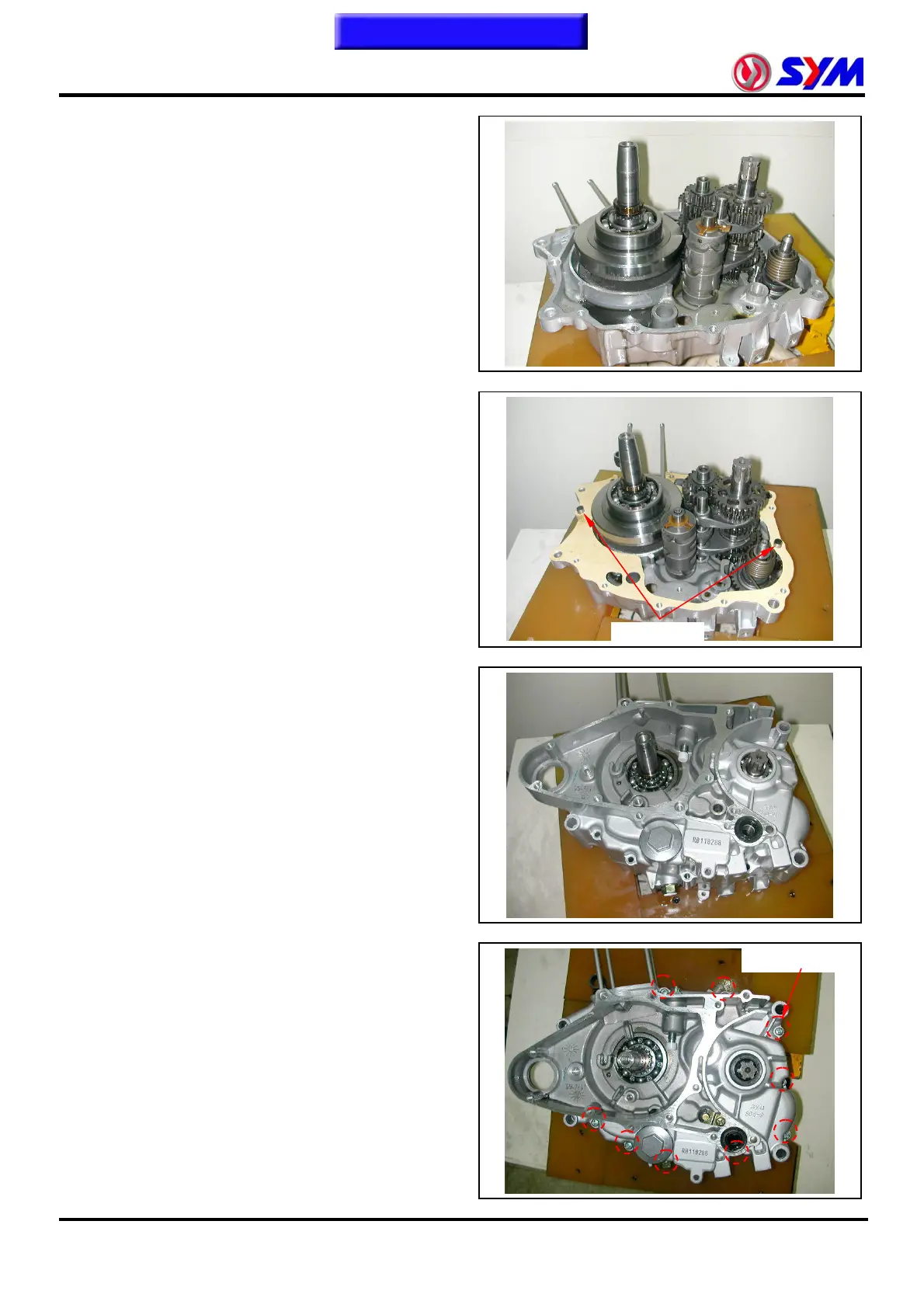

Install the crankshaf
t to the right crankcase.
9-14
Install the new crankcase gasket and dowel
pins.
Dowel pins
Install the lef
t
crankcase.
Screws ×9
T
ighten crankcase left side screws.
T
orque value
：
0.8~1.2kgf-m
