13. Electrical System
13-26
Fuel Unit / Fuel Level Warning
Switch

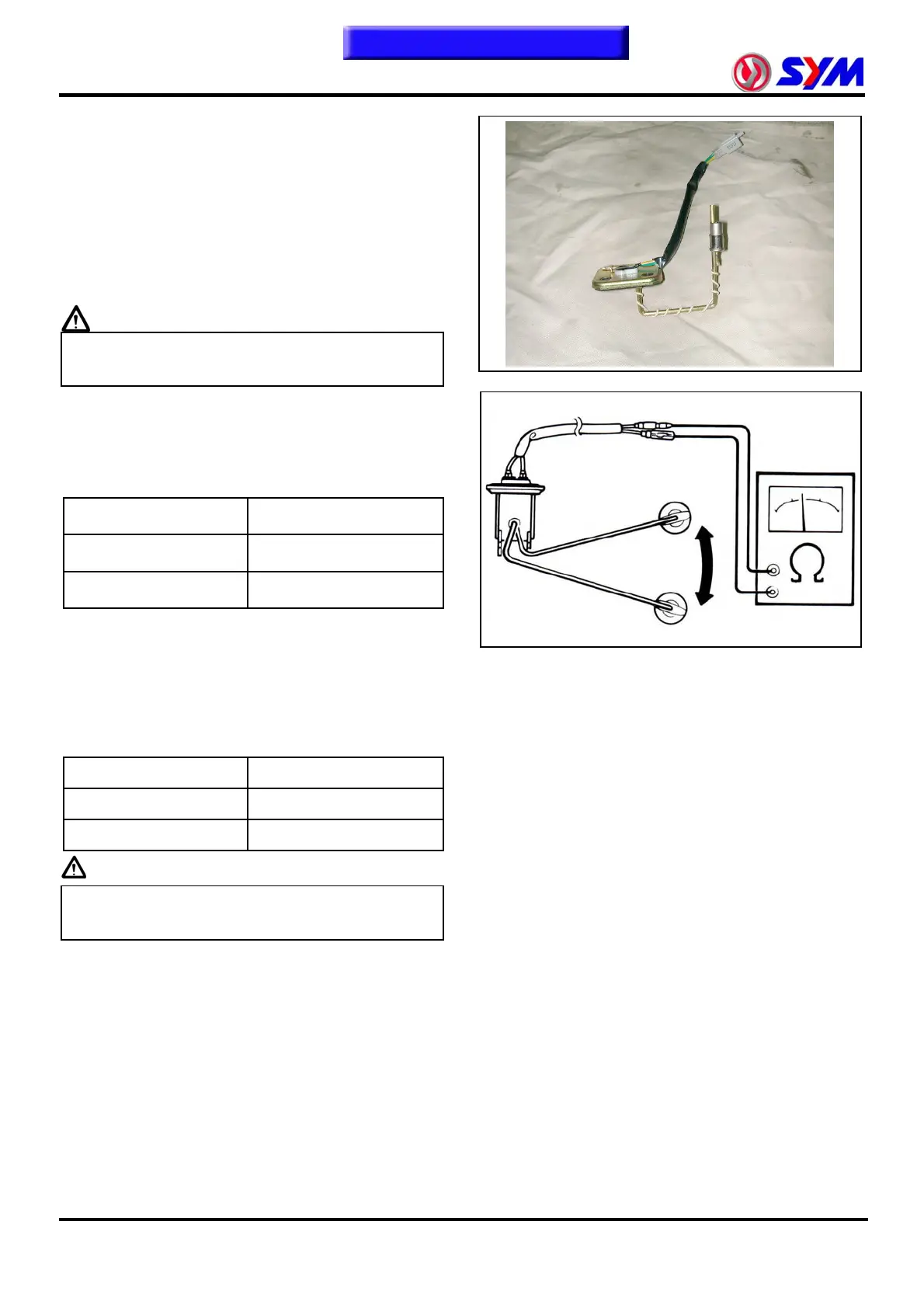

Fuel level warning switch inspection
Remove the fuel level warning switch.
Measure the switch resistance.
Resistance：960Ω±10%
Replace the gasket if it is deformed or
damaged.
Caution
z Make sure there is not too much fuel in
the fuel tank before proceeding operation.
Fuel unit inspection
Remove the fuel unit.
Measure the fuel unit resistance.
Float position Resistance
E (empty)
97.5~107.5 Ω
F (full)
4~10 Ω
Connect the fuel unit coupler to the wire
harness.
Turn on the main switch.
Move the float arm to verify the proper
position the fuel gauge needle indicates.
Float position Indication
Up (full) F (full)
Low (empty) E (empty)
Caution
y Make sure the battery voltage is sufficient
before proceeding inspection.
Replace the gasket if it is deformed or
damaged.
Full
Empty
