10.Inspection and maintenance before riding
Adjustment:

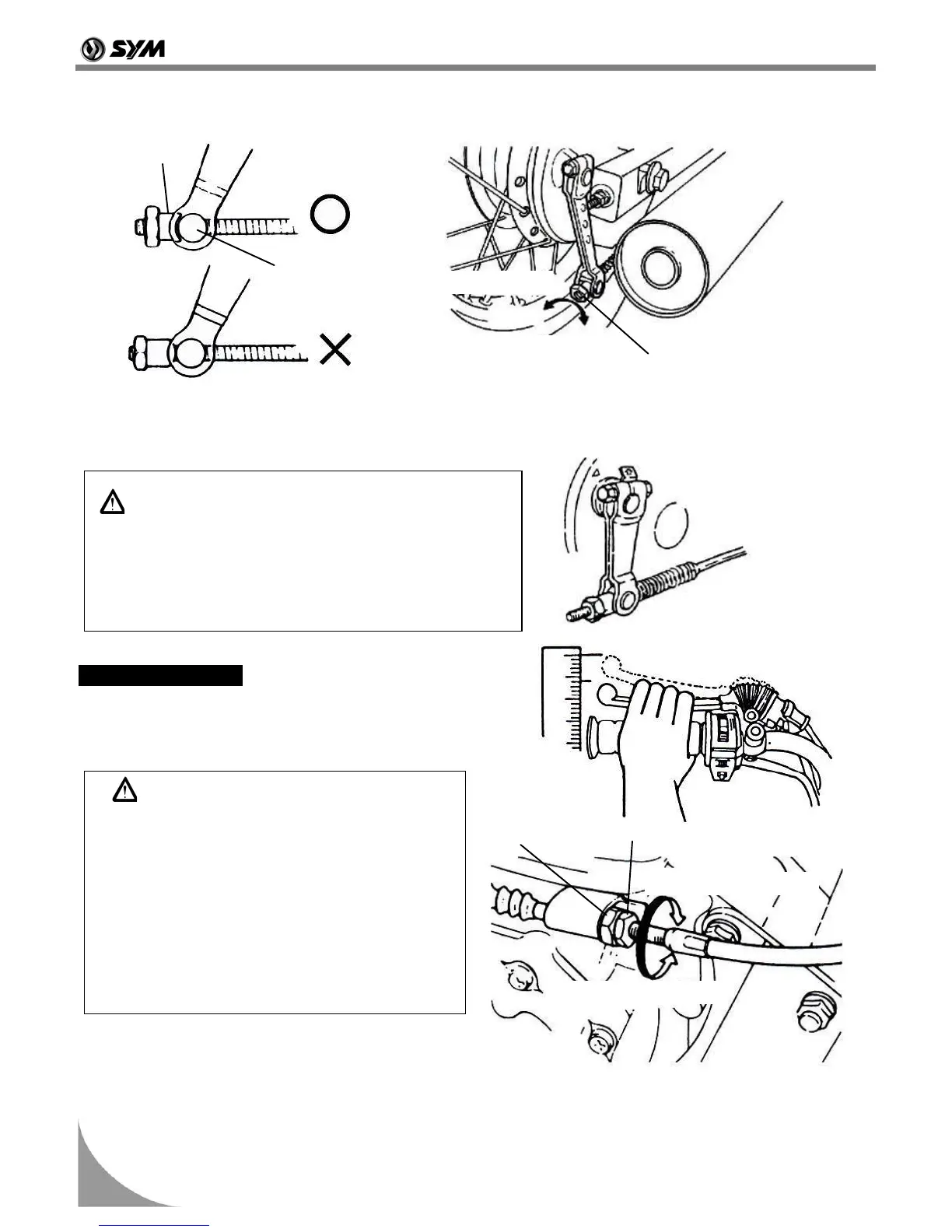

! The indentation of brake adjustment nut must be aligned with the pin. (see below figure)
! Turn the adjustment nut on brake arm of front and rear wheels to adjust the free play of hand-brake
lever.
! Hold the hand-brake levers after adjusting with both hands until there is effective brake feeling.
! Measure the free play with a rule.
CAUTION:
When free play is between 10~20 mm, check brake
indicators of front and rear wheels. If the arrow on the
brake arm aligned with the “△” marked on the brake disk,
that means the brake lining has been excessively worn,
and must be replaced immediately.
CLUTCH LEVER
The clutch lever free play should be 10~20mm.
Check the free play and turn the adjusting nut for
adjustment if necessary.
CAUTION:
! The function of the clutch is translating the
engine power to the rear wheel, if the clutch
adjustment is incorrect, it will be hard to shift
or make the clutch plates slip.
! Make sure the shift is easy to be done after
adjustment.
! If the clutch lever free play is too large or too
small, It’s easy to damage the clutch plates.
